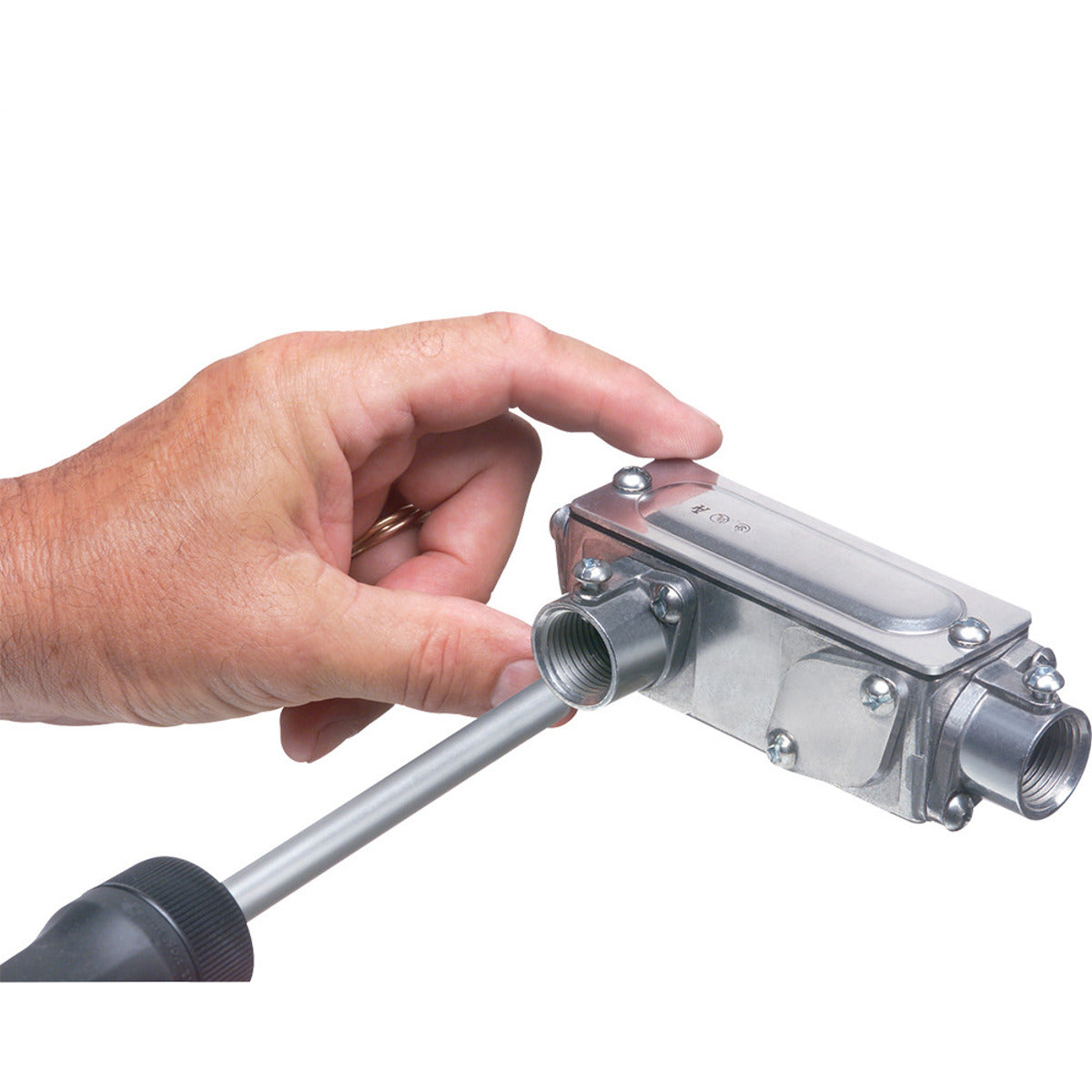

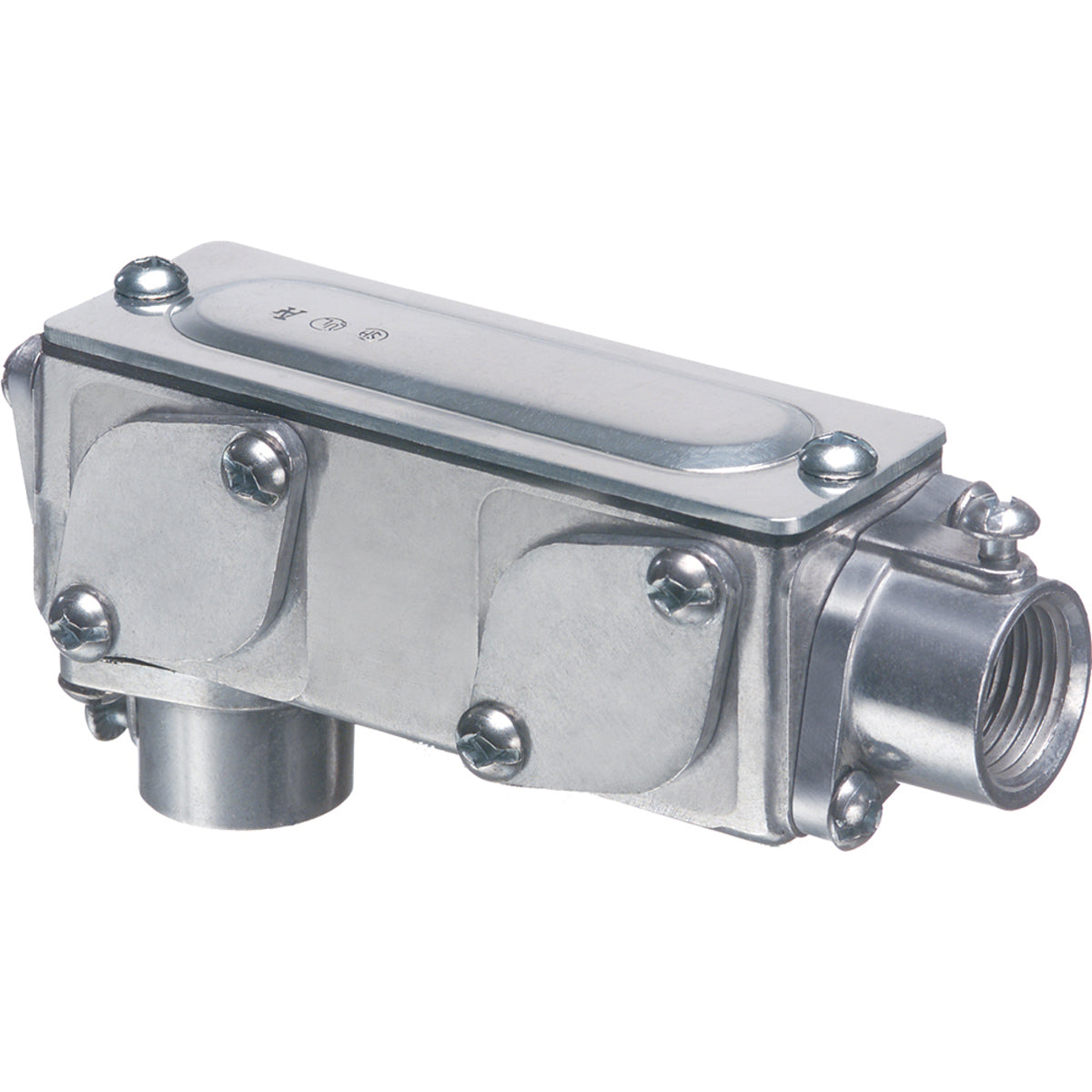

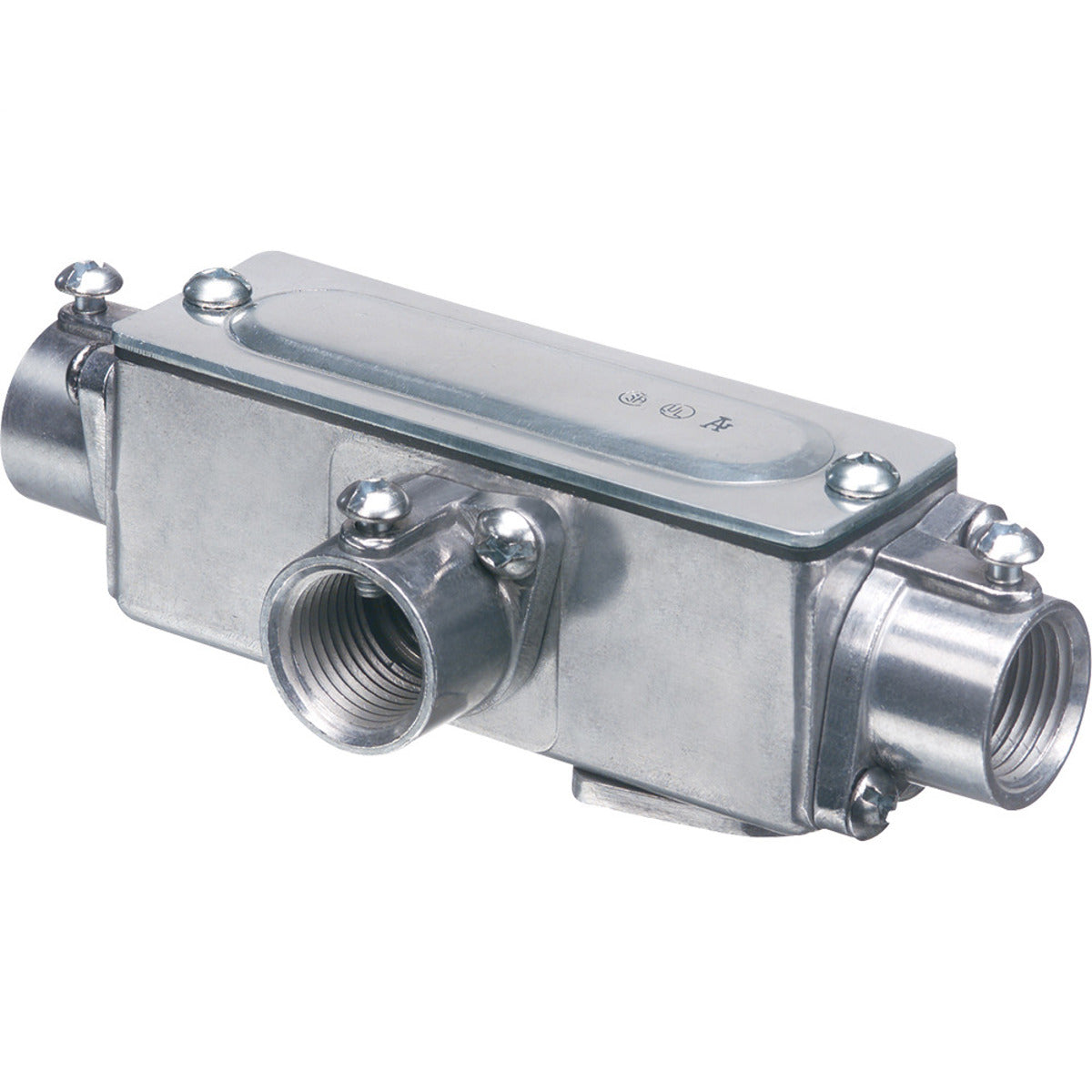

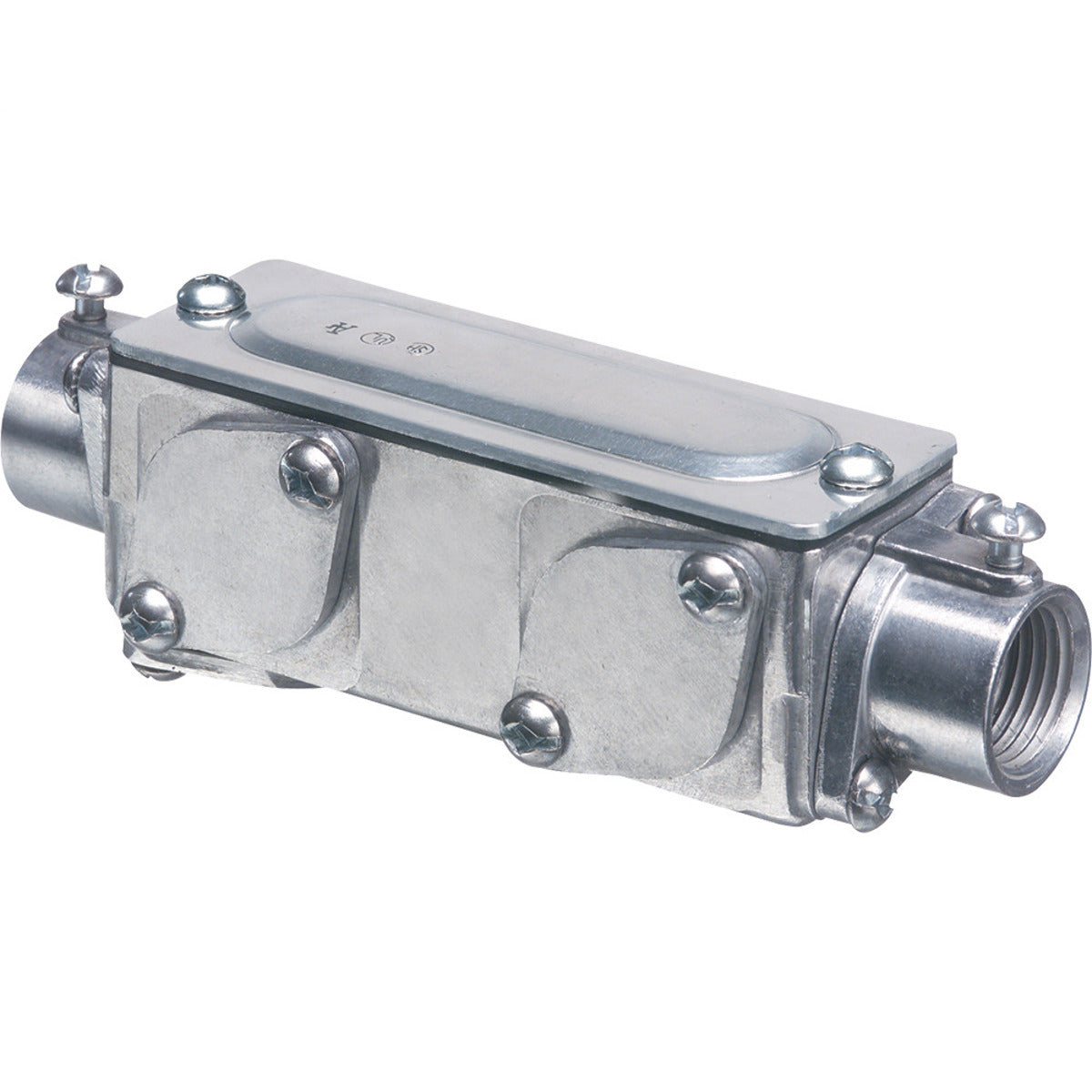

Arlington 930 Copper Free Aluminum Die-Cast 5-in-1 Conduit Body 1/2 In Hub 4.8 Cu-In

Product Description

The Arlington 930 is a copper free aluminum die-cast conduit body. This product offers five conduit configurations in one unit. It can be used as an LB, but it also converts to a T, LL, LR, or C. The conduit body has a trade size of one half inch and is designed for use with both threaded IMC or rigid and set screw EMT.

• Easy to convert between five conduit body types
• Suitable for threaded IMC or rigid and set screw EMT connections
• Capacity of four point eight cubic inches

Product Highlights

This conduit body is ideal for reducing inventory by combining multiple types into one product.

Product Information

Standard Information

• Manufacturer: Arlington
• MPN: 930

Technical Specifications

• Type: 5-in-1
• Dimensions: Five point eleven inches long x two point fifty two inches wide x one point sixty seven inches high
• Material: Copper-Free Aluminum
• Connection Type: Combination Threaded/Set-Screw
• Color: Silver
• Hub Size: One half inch
• Capacity: Four point eight cubic inches
• Standards: UL and CSA approved
