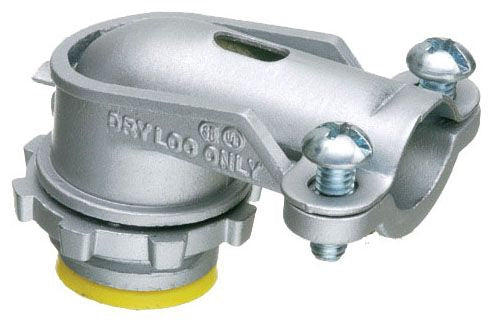

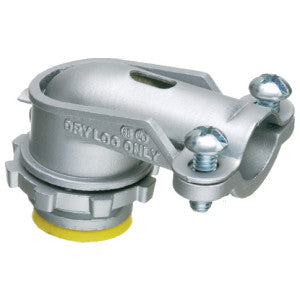

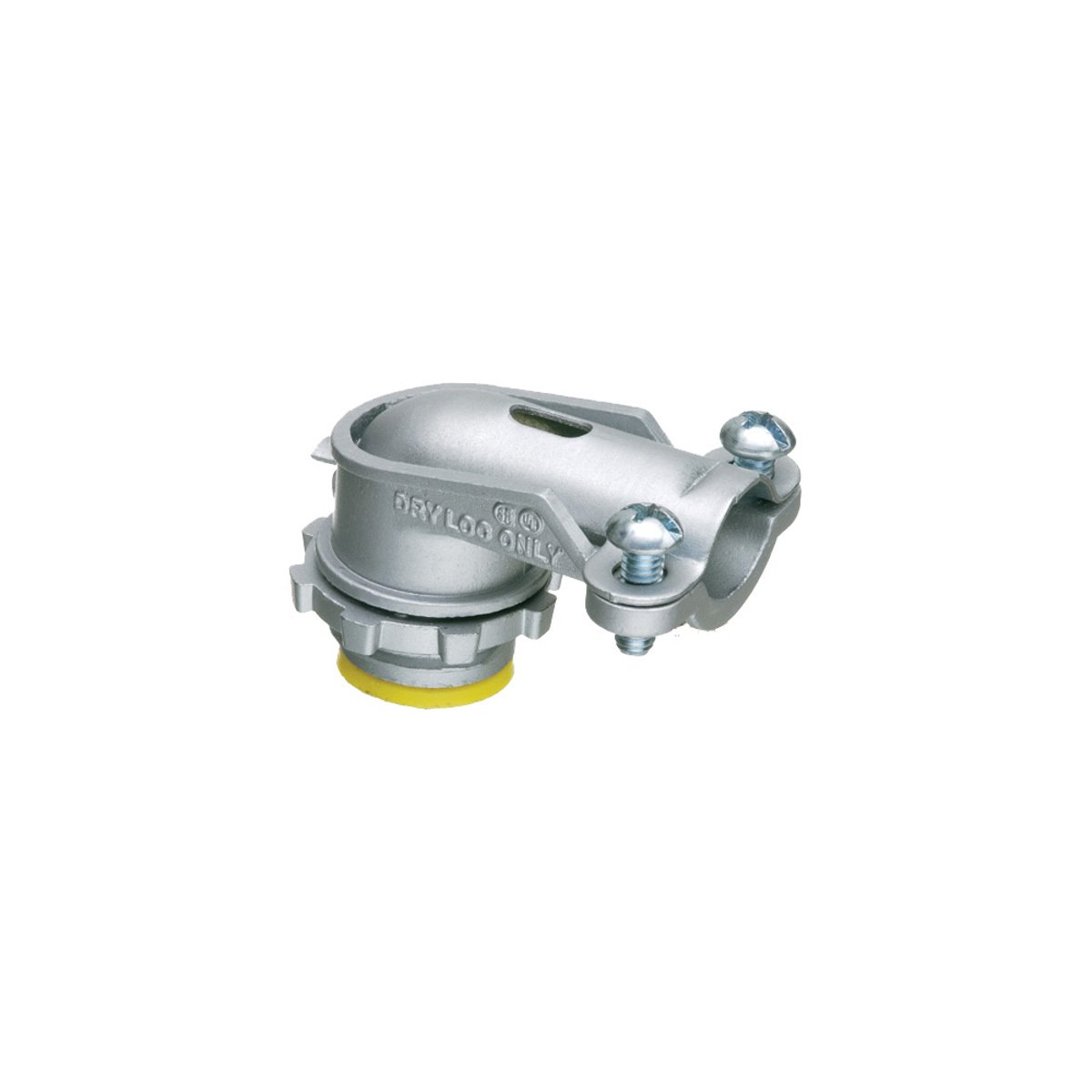

Arlington 857A Insulated 90 Degree Flexible Connector 2-1/2 in

Product Description

The ARLINGTON 857A is a zinc die-cast, 90 degree 2 screw flex connector for aluminum and steel Flex. It secures into a 2-1/2" Knockout with a diecast locknut and accommodates cable range 2.6 to 3.1. This connector features an insulated throat.

• Zinc die-cast construction
• 90 degree 2 screw flex connector
• Accommodates cable range 2.6 to 3.1

Product Highlights

This 90 degree flex connector is designed for aluminum and steel flexible conduits, offering secure connections and an insulated throat.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 857A
• Country of Origin: China

Technical Specifications

• Catalog Number: 857A
• Manufacturer: Arlington
• Brand: Arlington
• Country of Origin: Thailand
• Made in USA: No
• Application: For AC - MCI-A - HCF steel and aluminum cable
• Material: Zinc
• Special Features: For Aluminum and Steel
• Standard: CULUS and CSA
• Item Type: 90 Degree Connectors
• Angle: 90 deg
• Cable Type: Aluminum/Steel
• Connection Type: Screw Terminal
• Type: 2-Screw
• Trade Size: 2-1/2"
• Knockout Size: 2-1/2 in
• Cable Openings: 2.6 to 3.1 in
• ECCN: EAR99
• UNSPSC: 39121419
• Cable/Conduit Type: Aluminum/Steel Flexible Metal Conduit, Metal Clad Cable
• Installation: (2) Screw, Clamp
• Throat Type: Insulated
• Approval: UL (Canada and US), CSA
• Manufacturer Part Number: 857A
• Standards/Approvals: CSA Certified File No. LR49636|cULus 372D|UL Listed
• UPC: 018997085719
• Listing: cULus CSA
• Material(s): Zinc
• Cable Range: 2.600 - 3.100
• Knockout Size(s): 2-1/2"
• UOM: ea
• Size: 2-1/2 In.
