Arlington 851ST Snap-Tite cable connector 1/2 inch 90 degree angle

Product Description

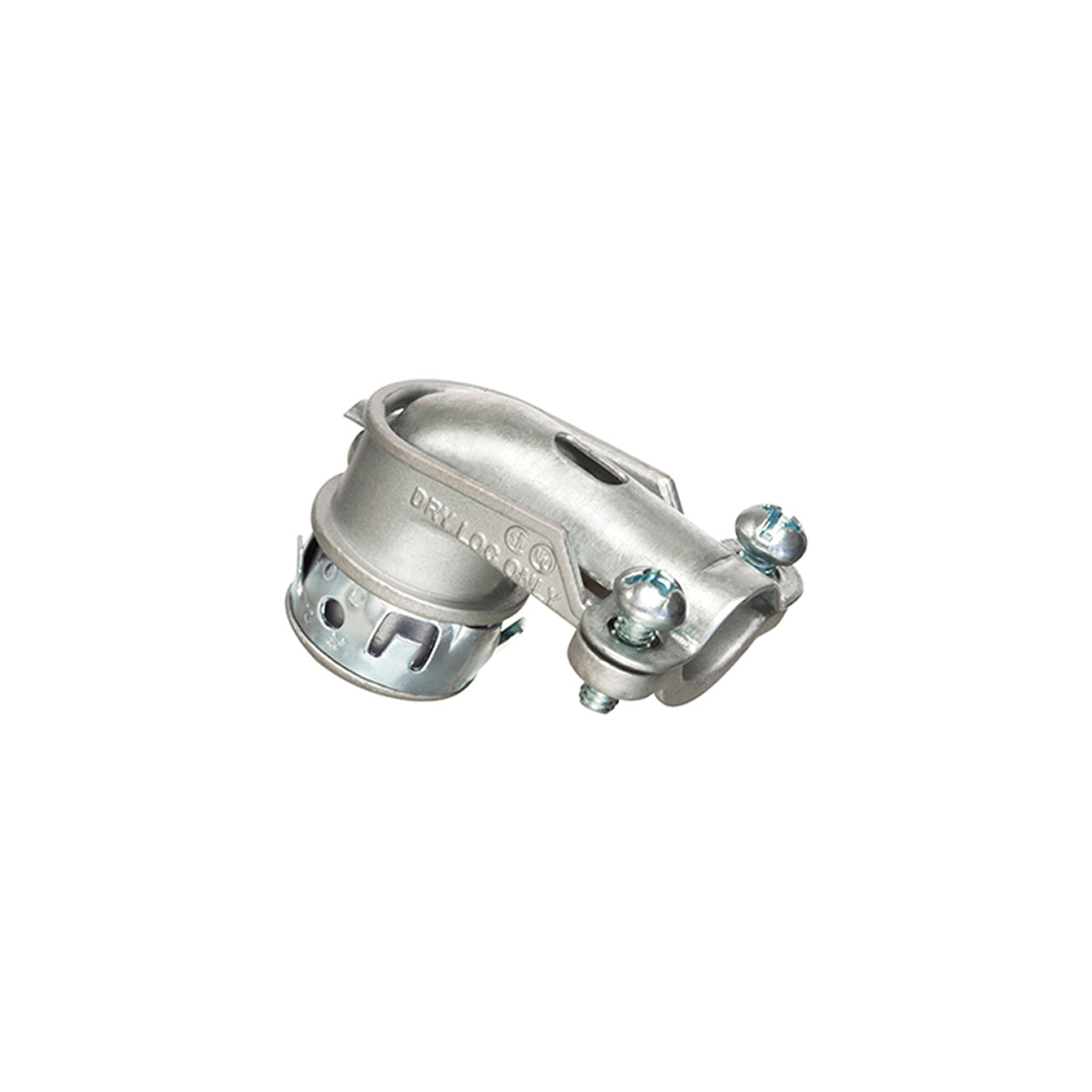

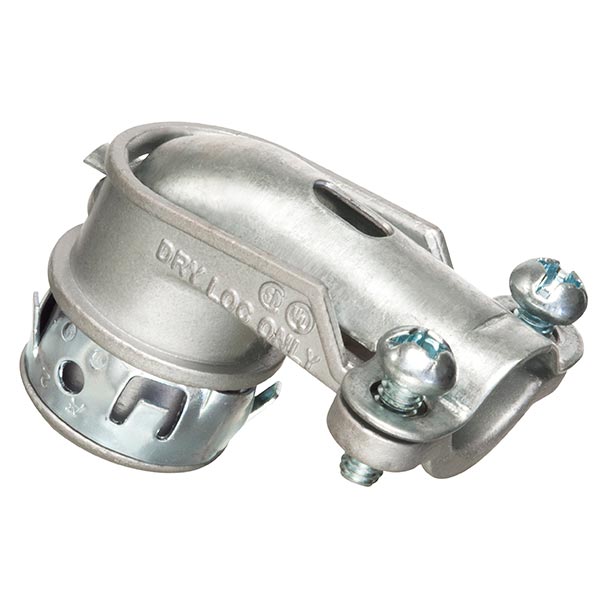

The Arlington 851ST is a zinc die-cast, 90 degree angle cable connector designed for aluminum and steel cable. It is concrete tight when taped and snaps into a knockout with a spring steel clip, featuring a 2 screw clamp type. This connector is also suitable for MCI-A cable.

• 90 degree angle
• Concrete tight when taped
• Snaps into Knockout with spring steel clip

Product Highlights

This Arlington Snap-Tite cable connector ensures secure connections for various cable types with its robust design and easy installation.

Product Information

Standard Information

• Brand: Arlington
• Manufacturer Part Number: 851ST
• Country of Origin: United States

Technical Specifications

• Catalog Number: 851ST
• Manufacturer: Arlington
• Brand: Arlington
• Sub Brand: Snap-Tite
• Country of Origin: United States
• Made in USA: Yes
• Application: For AC - MCI-A - HCF steel and aluminum cable
• Material: Zinc
• Special Features: Spring Steel Clip
• Standard: CULUS and CSA
• Angle: 90 deg
• Cable Type: Aluminum/Steel/Flex/AC/MC/MCI-A
• Connection Type: Screw Clamp
• Trade Size: 1/2 in
• Knockout Size: 1/2 in
• Cable Openings: 0.642 to 1.075 in
• Standards/Approvals: UL File No. E18304|cULus 372D|CSA File No. LR49636
• Part Number: 851ST
• UPC-A: 018997801586
• Cable Range: 0.642 - 1.075
• Knockout Size(s): 1/2"
