Arlington 846ST 3/8 Dplx Romex/bx Conn

Product Description

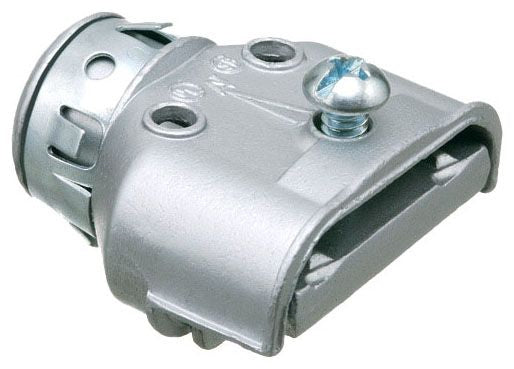

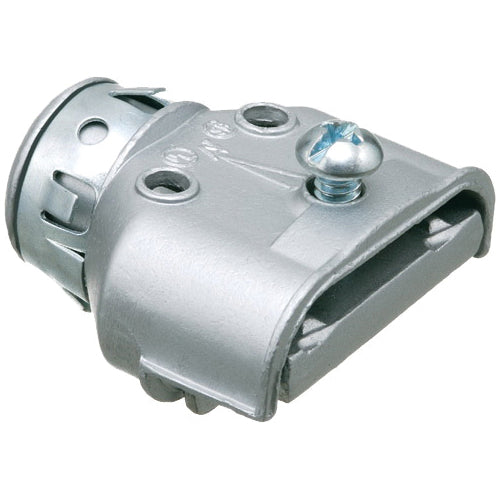

Arlington 846ST armored cable/flexible conduit connector is a straight type with a 3/8 inch trade size and a 1/2 inch knockout size. It features a duplex cable opening and is suitable for armored/metal clad cable and flexible metal conduit. The cord size ranges from 0.15 to 0.612 inches.

• Type Straight
• Trade Size 3/8 Inch
• Material Die-Cast Zinc

Product Highlights

This Arlington connector features single screw installation and is UL and CSA approved.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 846ST
• Country of Origin: USA

Technical Specifications

• Type: Duplex Connector
• Trade Size: 3/8 in. (1/2KO)
• Knockout Size: 1/2 Inch
• Cable Opening: Duplex
• Cable/Conduit Type: Armored/Metal Clad Cable, Flexible Metal Conduit
• Cord Size: 0.15 to 0.612 Inch
• Length: 1.622 Inch
• Installation: (1) Screw
• Throat Type: Non-Insulated
• Material: Die-Cast Zinc
• Approval: UL (Canada and US), CSA
• Width: 1.668 Inch
• Country Of Origin: USA
• Standard: UL and CSA
• Sub Brand: Snap-Tite
• Brand Name: Arlington
• Application: For AC - MCI-A - HCF steel and aluminum cable
• Angle: Straight
• OD Min: 0.15 in.
• OD Max: 0.61 in.
