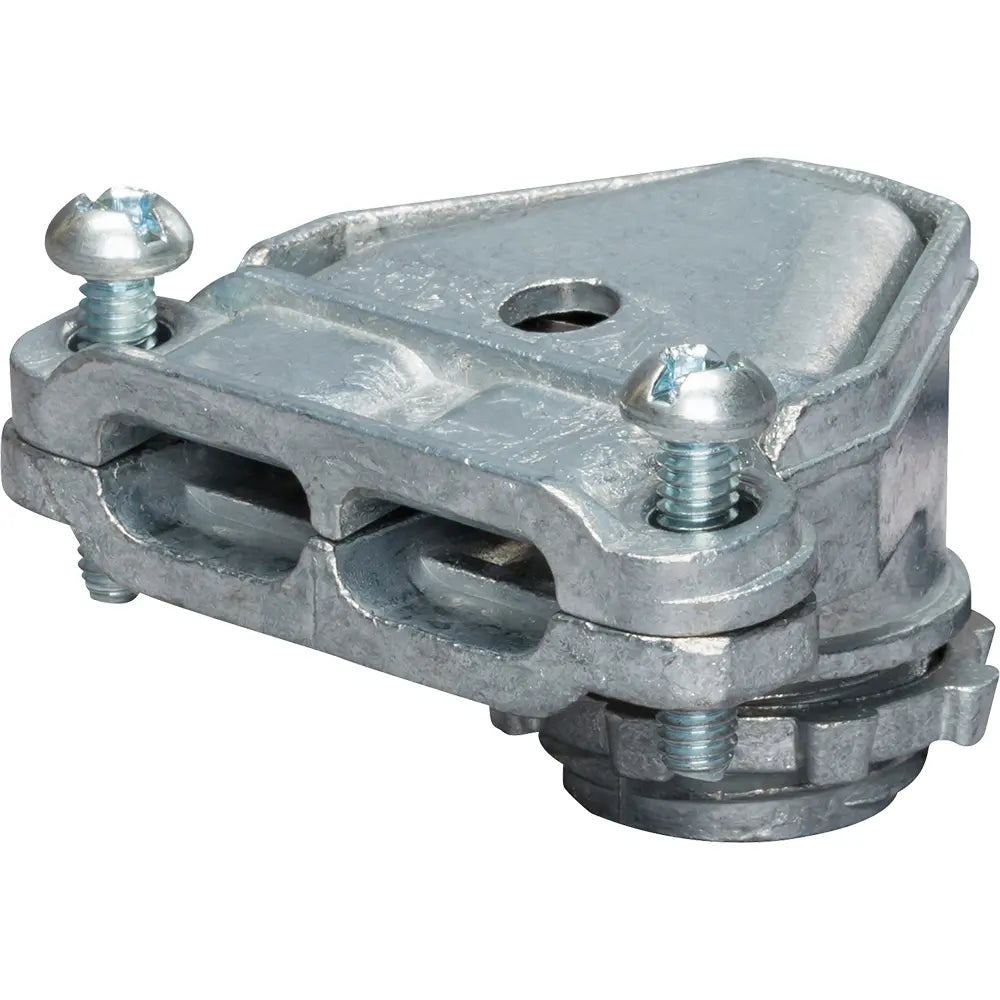

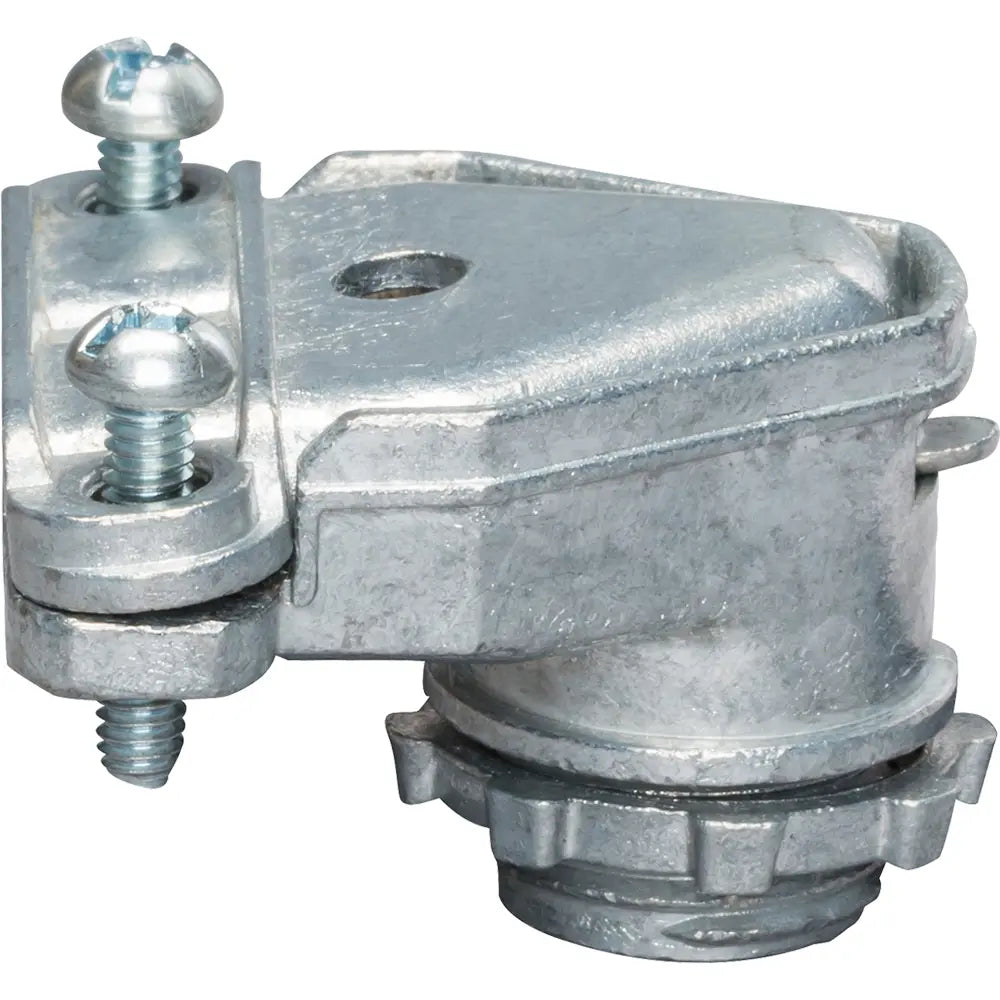

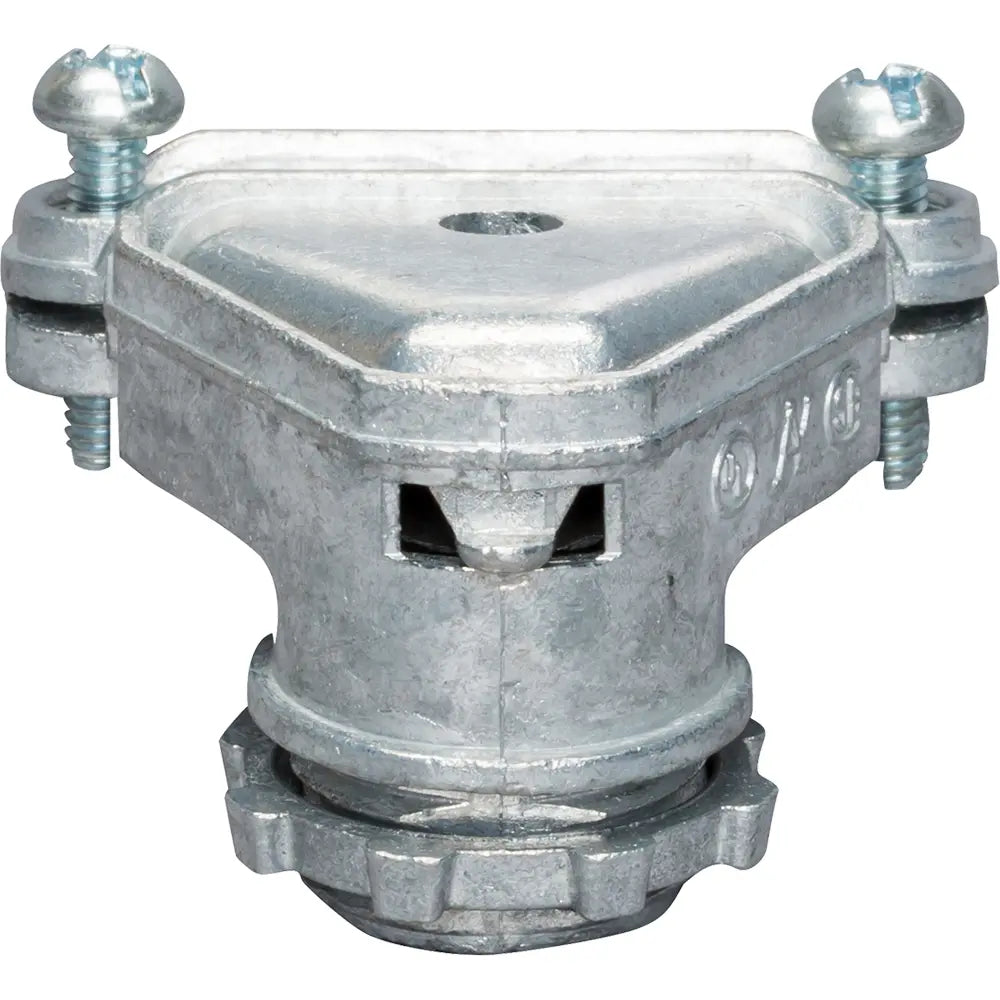

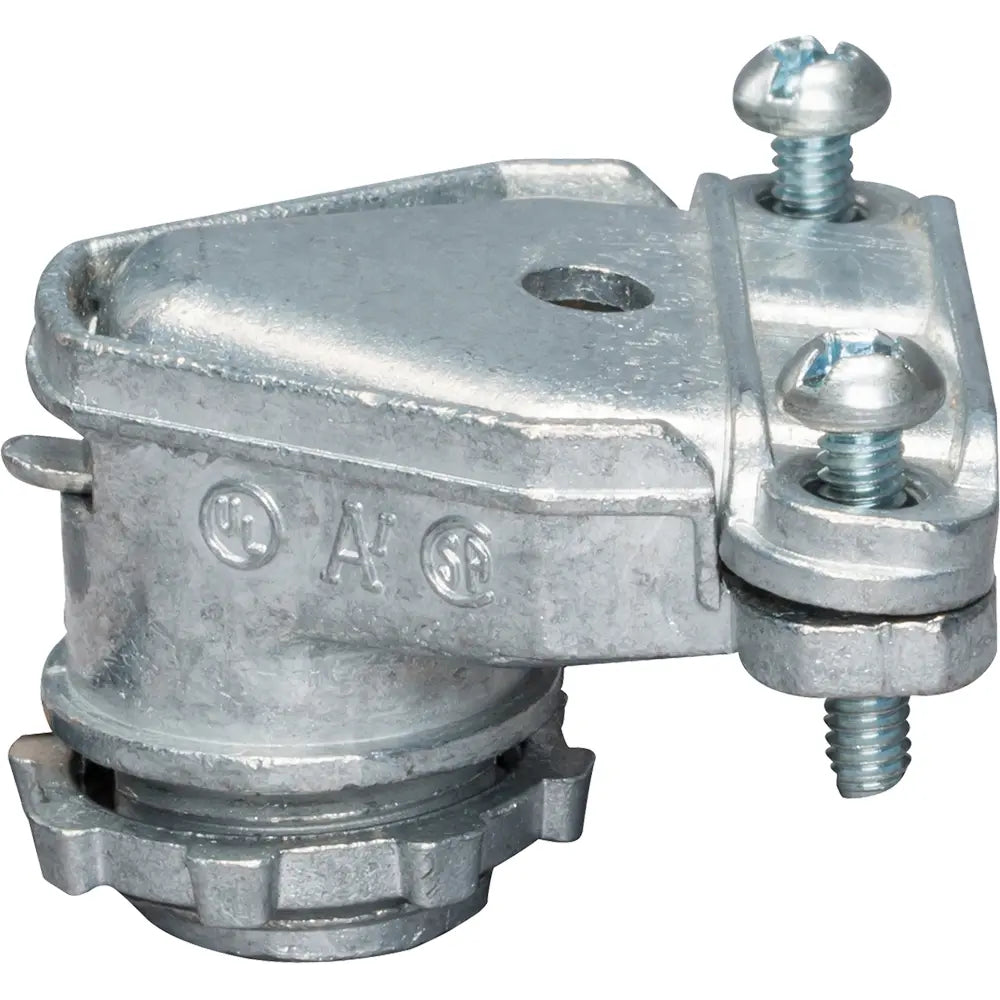

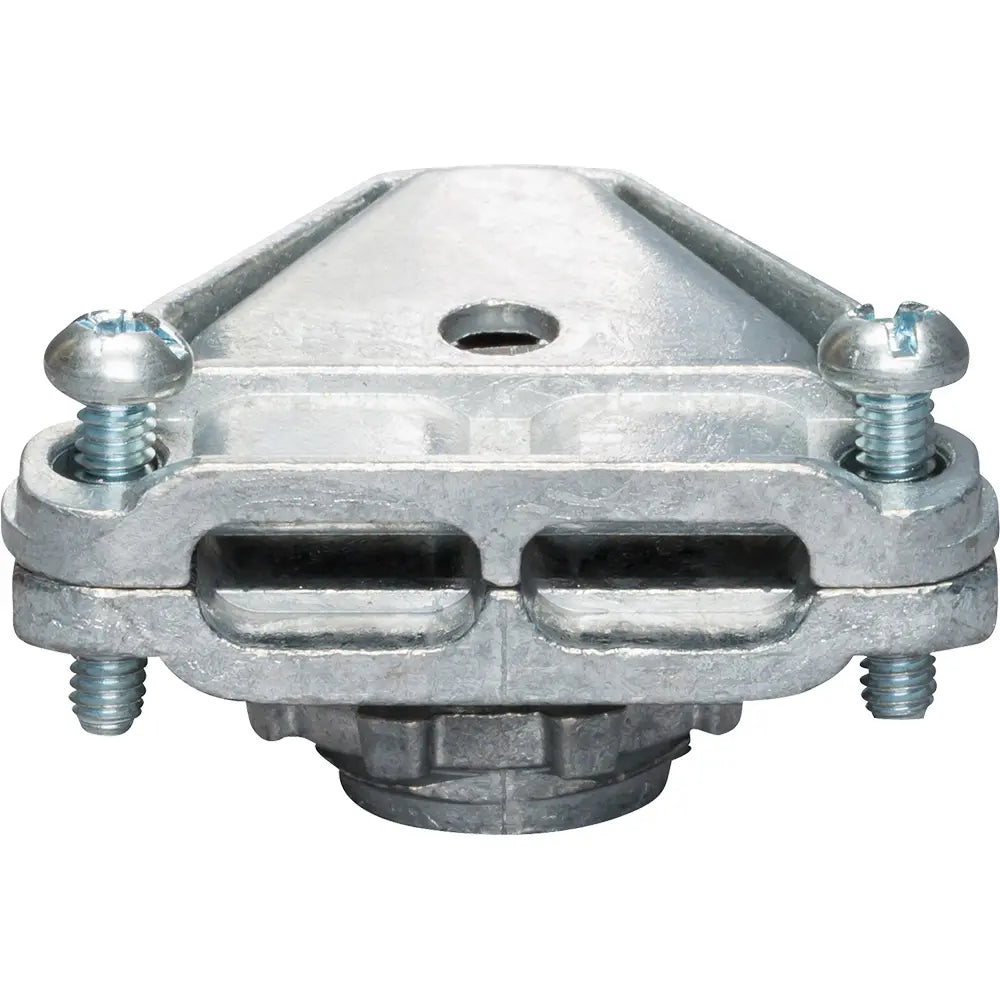

Arlington 84690 Duplex Connector 3/8 in 1/2 in

Product Description

The Arlington Duplex Connector with MPN 84690 is designed for 3/8 inch trade applications. It features a zinc die-cast construction and provides a reliable connection for electrical cables ranging in diameter from 0.512 inches to 0.612 inches. This connector fits into a one-half inch knockout and secures tightly using a locking nut.

• 90 degree angle for flexible cable routing.
• Compatible with various cable types including NM, Flex, and AC cables.
• Meets UL and CSA standards for safety and compliance.

Product Highlights

The Arlington Duplex Connector is suitable for a wide range of applications. Ideal for electrical installations where a secure connection is necessary. The robust construction and precise specifications ensure long-lasting usage.

Product Information

Standard Information

• Catalog Number: 84690
• Manufacturer: Arlington
• Standard Compliance: UL, CSA

Technical Specifications

• Material: Zinc
• Mounting Type: Threaded
• Weight: 0.158 pounds
• Dimensions: 1.707 inches L x 1.18 inches W x 1.975 inches H
• Trade Size: 3/8 in
• Knockout Size: 1/2 in
• Connection Type: Twin Screw
• Cable Openings: 0.512 to 0.612 in
• Color: Silver
