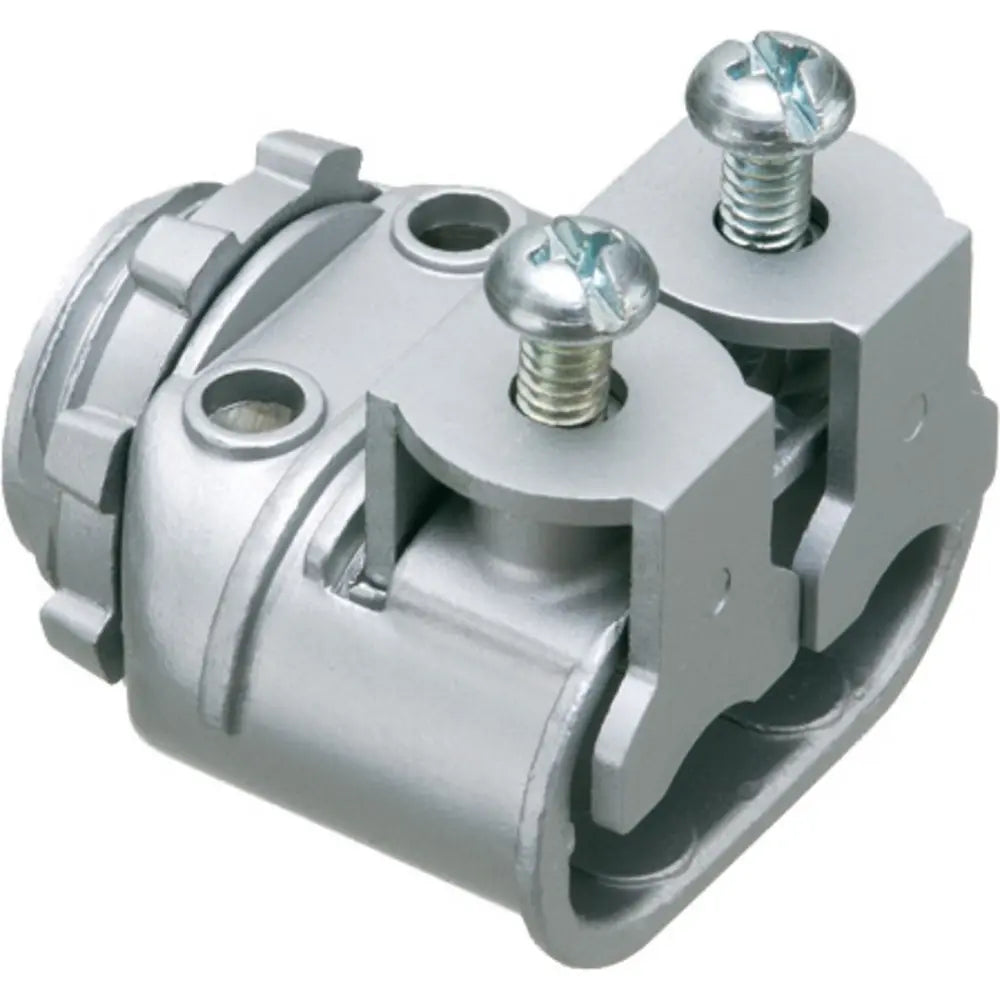

Arlington 846 cable connector duplex straight single screw 3/8 in

Product Description

The Arlington 846 is a cable connector, featuring a duplex straight single screw design. It accommodates cable openings from 0.15 to 0.612 inches and is suitable for NM/AC/MC/MCI-A/Flex cables. Constructed from die-cast zinc, it measures 1.541 inches in length, 0.866 inches in width, and 1.668 inches in height.

• Rounded cable grip and smooth bushing protect cable sheath and wire insulation
• Screws do not travel or extend beyond the connector body as it is clamped to the cable due to the threaded saddle
• An extra lip on the saddle closes the unused part of the connector opening

Product Highlights

Die-cast zinc cable connector with single screw, suitable for various cable types. Features include a protective cable grip and secure saddle design.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 846
• Country of Origin: US

Technical Specifications

• Material: Die Cast Zinc
• Cable Type: NM/AC/MC/MCI-A/Flex
• Trade Size: 3/8 in
• Cable Openings: 0.15 to 0.612 in
• Country of Origin: US
• Type: Straight
• Cable Opening: Duplex
• Cable/Conduit Type: Armored Cable/Flex Metal Conduit/Metal Clad Cable/Non-Metallic Cable
• Cord Size: 0.15 to 0.612 Inch
• Length: 1.542 Inch
• Installation: (1) Screw
• Throat Type: Non-Insulated
• Approval: UL, CSA
• Insulated: No
• Connection: Screw terminal
