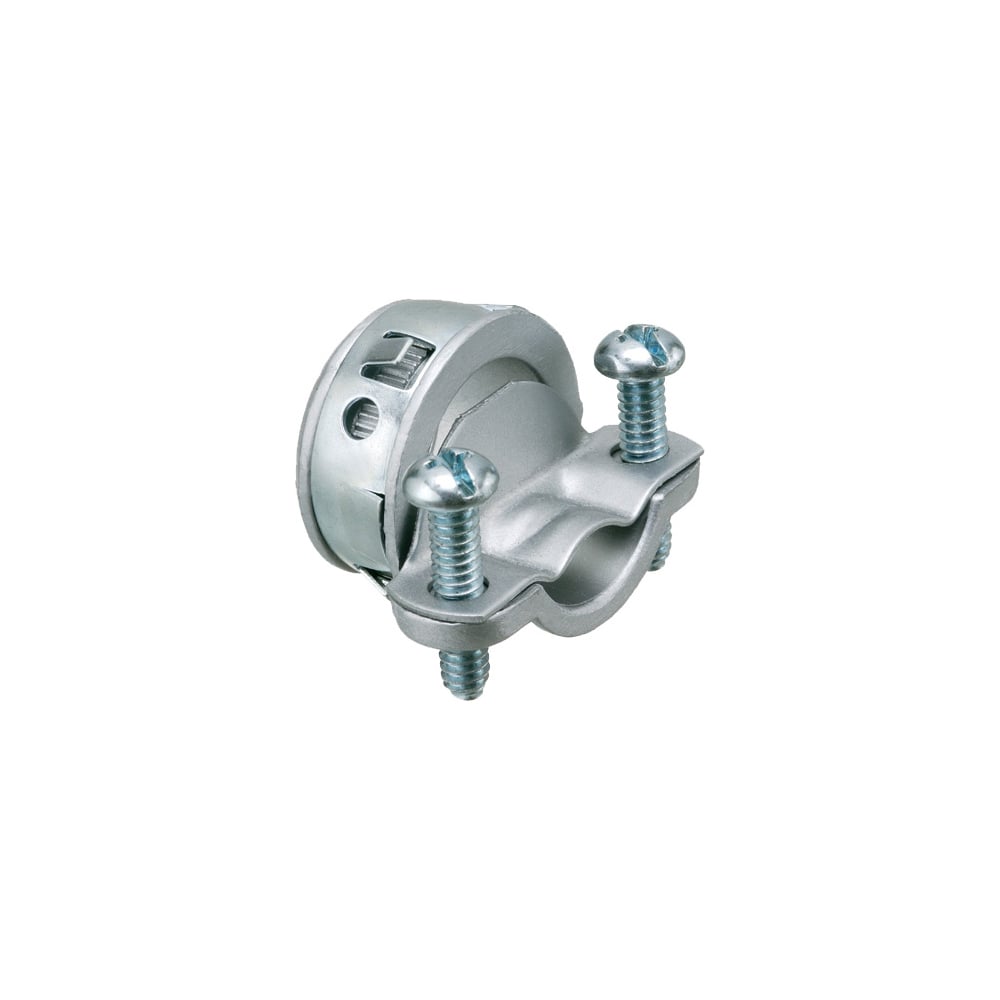

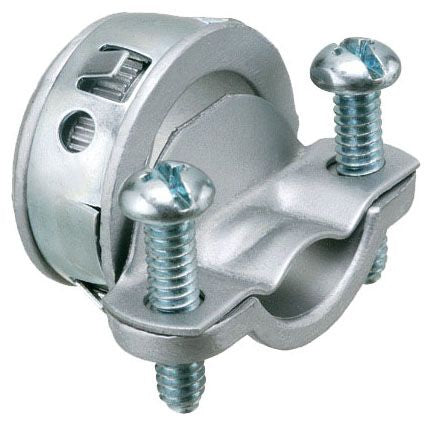

Arlington 842ST NM Cable Connector Zinc Die-Cast 3/4 in

Product Description

The Arlington 842ST is a NM cable connector made of zinc die-cast material. It utilizes a two-screw clamp type design, enabling it to handle combinations of NM cable ranging from #14 to #10. This connector is capable of accommodating up to three NM cables simultaneously. It features a three-quarters inch knockout and can also handle one 8/2 service cable or two 4/2 service cables with a snap-tight connection.

• Two-screw clamp type for secure fastening
• Handles multiple NM cable sizes from 14 to 10 AWG
• Designed for service entrance cable connections

Product Highlights

This product is ideal for various electrical applications where secure connections are required for non-metallic cables.

Product Information

Standard Information

• Type: Coupler
• Manufacturer: Arlington Industries
• Warranty Description: 1 Year Warranty Against Manufacturer Defects

Technical Specifications

• UNSPSC Code: 39121311
• Material: Die Cast Zinc
• Color: Silver
• Trade Size: 3/4 in
• Dimensions: 1.07 in L x 1.2 in W x 1.63 in H
• Country of Origin: United States
• Standards: UL, CSA
