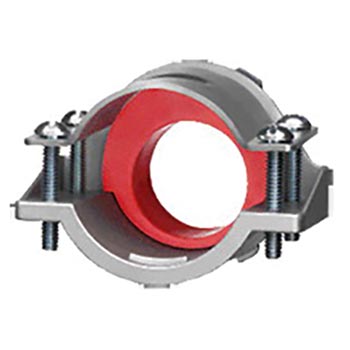

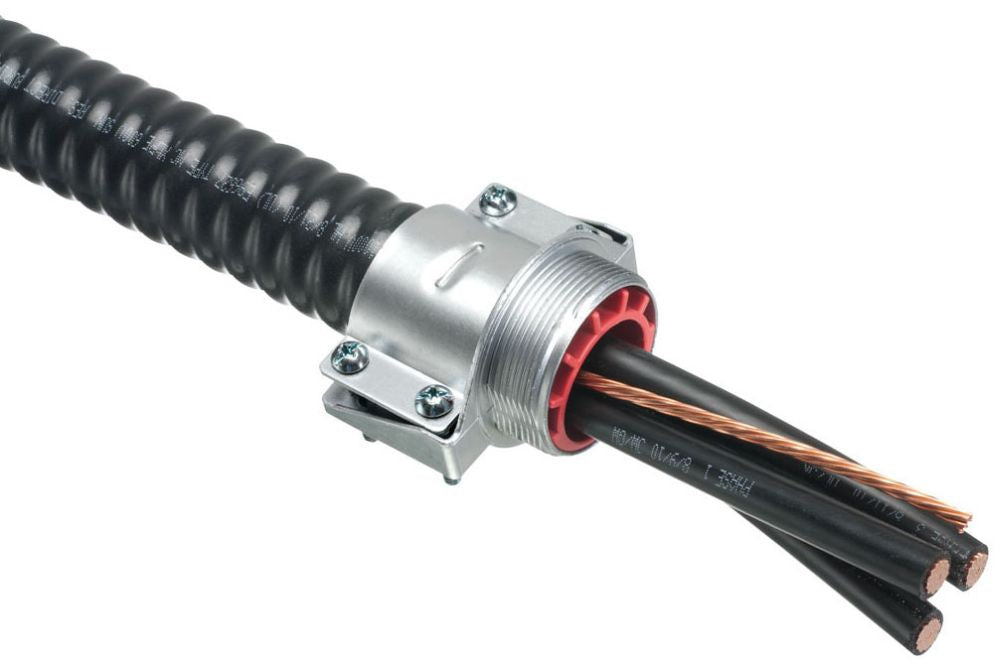

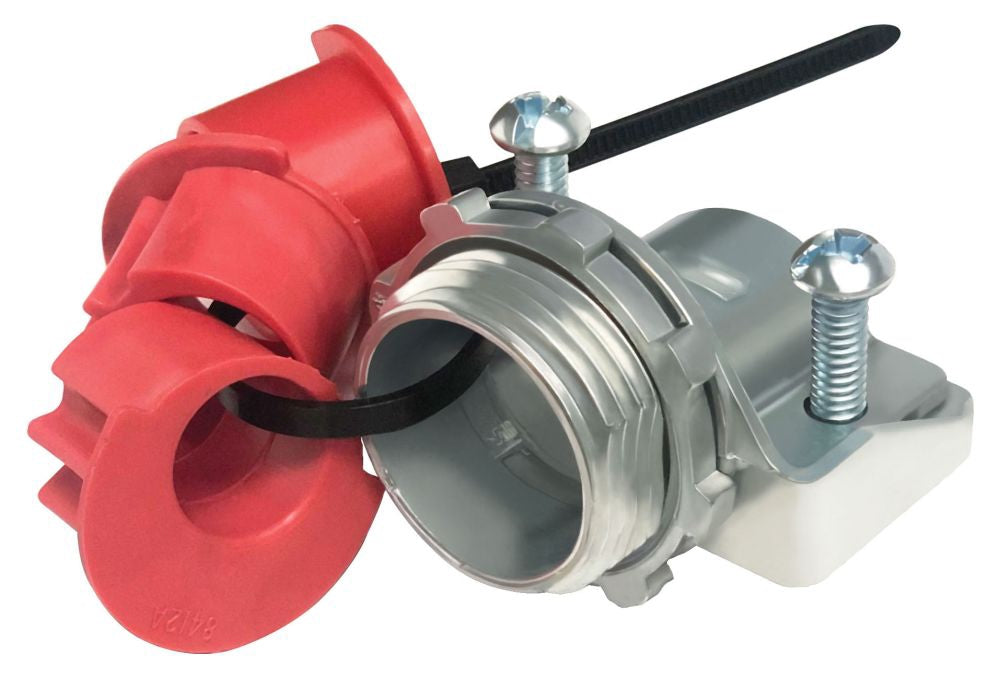

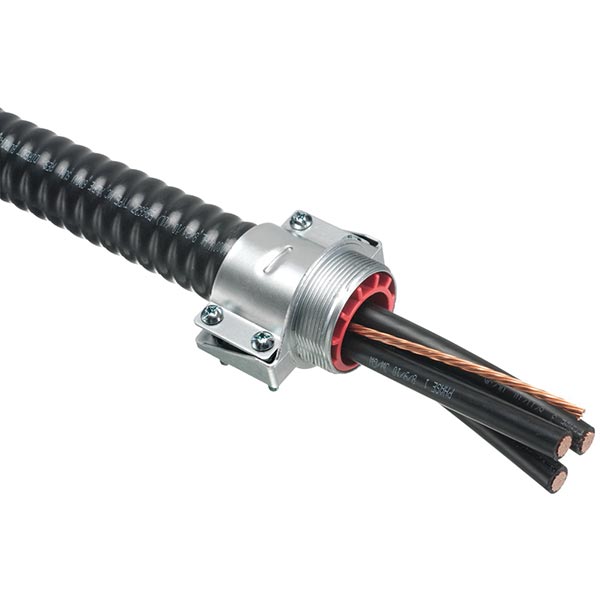

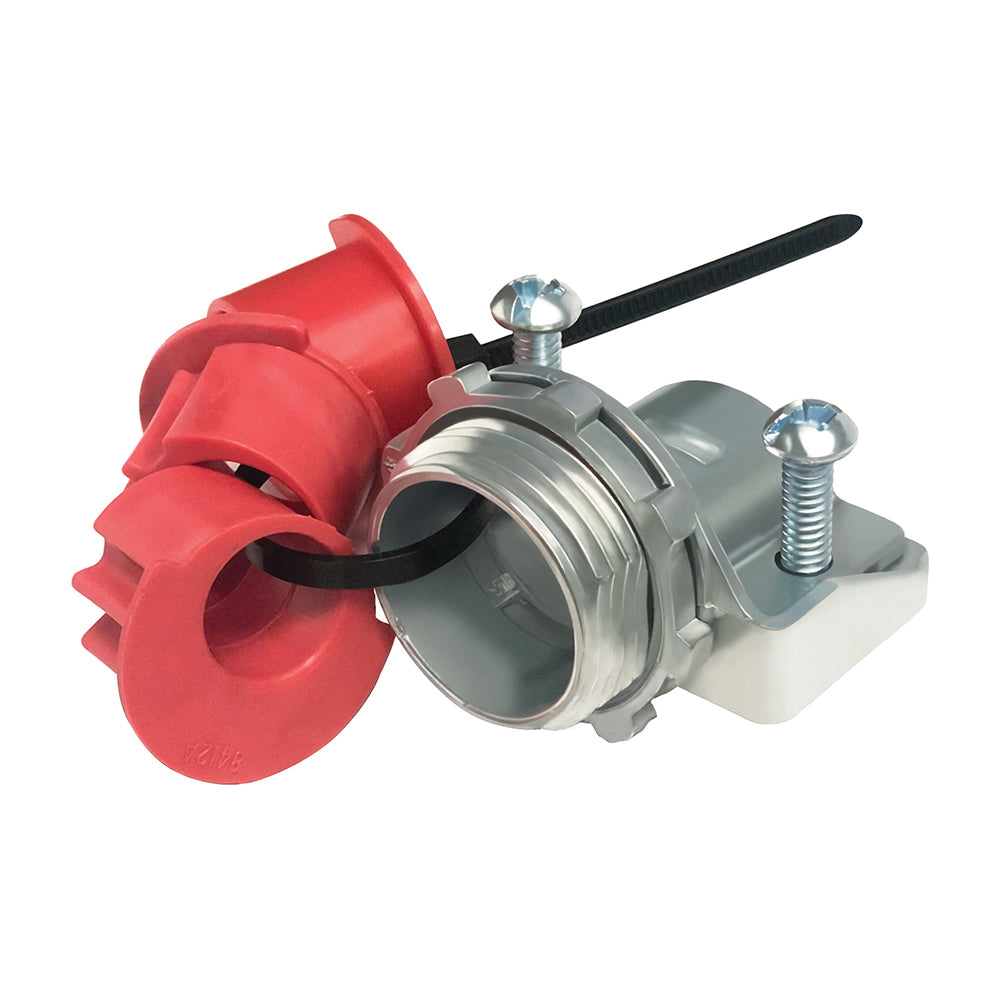

Arlington 8416 2-1/2 MC Connector

Product Description

The Arlington 8416 is a 2-1/2 MC Connector. This cable fitting includes an end stop bushing and a built-in end stop. It accommodates cable openings from 2.1 to 2.7 inches and secures into a 2-1/2 inch knockout. It is suitable for aluminum, steel, flex, AC, AC90, HCF, MC, MCI, MCI-A, and TECK90 cables in dry locations.

• Accommodates cables from 14/2 to 10/3 AWG
• Provides a super secure installation with no pullout
• Fully assembled and ready to use with or without insulated throat

Product Highlights

This Arlington MC cable fitting is cost-effective and convenient, featuring a built-in end stop and additional end stop bushings for various cable sizes.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 8416
• Country of Origin: US

Technical Specifications

• Application: Dry Location Applications
• Cable Openings: 2.1 to 2.7 in
• Cable Type: Aluminum/Steel/Flex/AC/AC90/HCF/MC/MCI/MCI-A/TECK90
• Connection Type: MNPT
• Knockout Size: 2-1/2 in
• Manufacturer Part Number: 8416
• Material: Die Cast Zinc
• Standards/Approvals: BAA Compliant|CSA Certified|cULus 372D|UL Listed
• Trade Size: 2-1/2 in
• Brand: Arlington
• Type: 1-Hole AC/MC Strap
• Standard: cULus
• Product Name: Metal Clad Cable Connector
• Certifications: PROP65
• Connector Type: Squeeze/Threaded
• Special Features: 2.7IN OD Cable, 2.4IN OD Wire Bundle
• Finish: Silver
• Enclosure: Zinc
• Country Of Origin: USA
