Arlington 8415 Cable Fitting With End Stop Bushing And Built-In End Stop 2 In Trade 2 In Knockout

Product Description

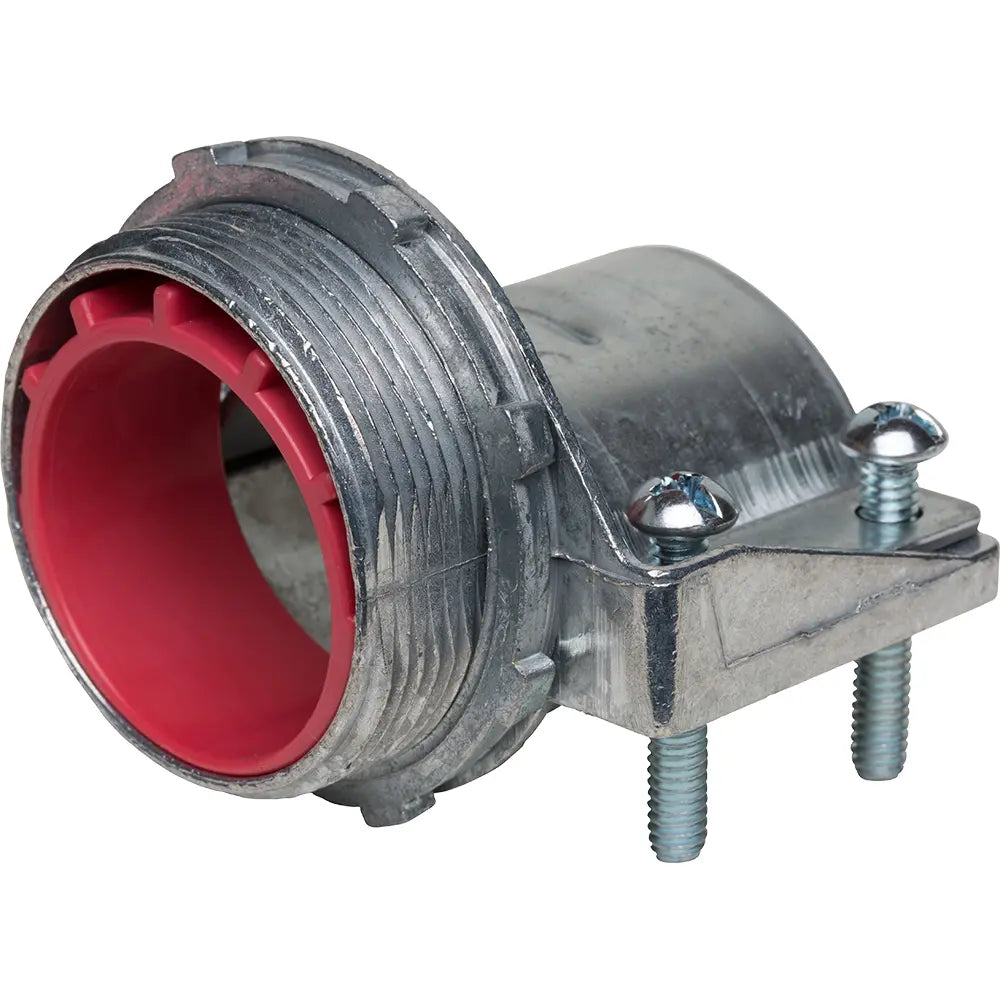

The Arlington 8415 is a cable fitting designed for steel and aluminum cable connections. It features a zinc die-cast MC feeder cable connector equipped with a steel strap. This fitting includes a built-in end stop and comes with additional end stop bushings to accommodate a wider range of cable sizes. The connector secures into a two-inch knockout and ensures a concrete-tight installation when taped.

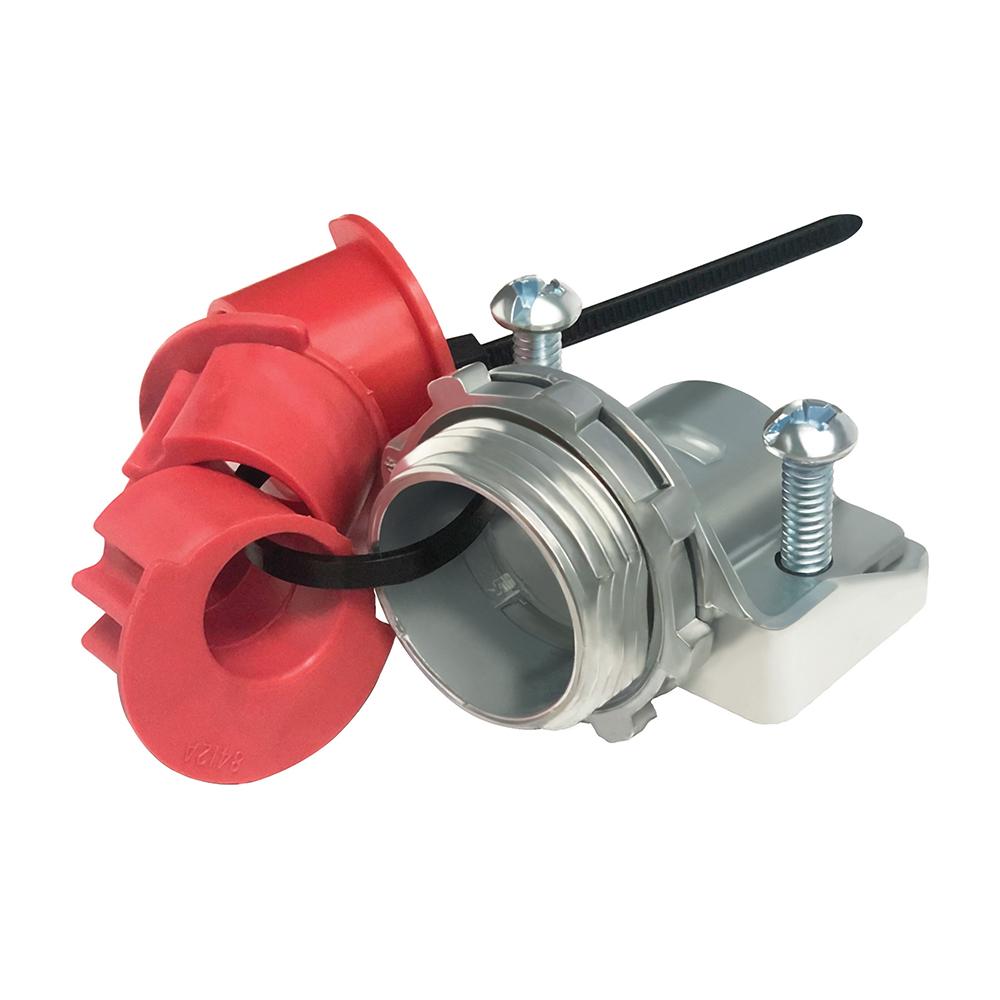

• Built-in end stop with additional bushings.
• Secures into a 2-inch knockout with a steel locknut.
• Suitable for dry locations.

Product Highlights

This product is ideal for contractors needing a reliable and secure connection for MC cables in various applications.

Product Information

Standard Information

• Manufacturer: Arlington
• Part Number: 8415

Technical Specifications

• Material: Zinc Die-Cast
• Trade Size: 2 inches
• Knockout Size: 2 inches
• Cable Openings: 1.7 to 2.29 inches
• Connection Type: MNPT
• Dimensions: 2.901 inches L x 2.75 inches W x 3.7 inches H
• UPC: 018997005830
• Weight: 0.85 pounds
