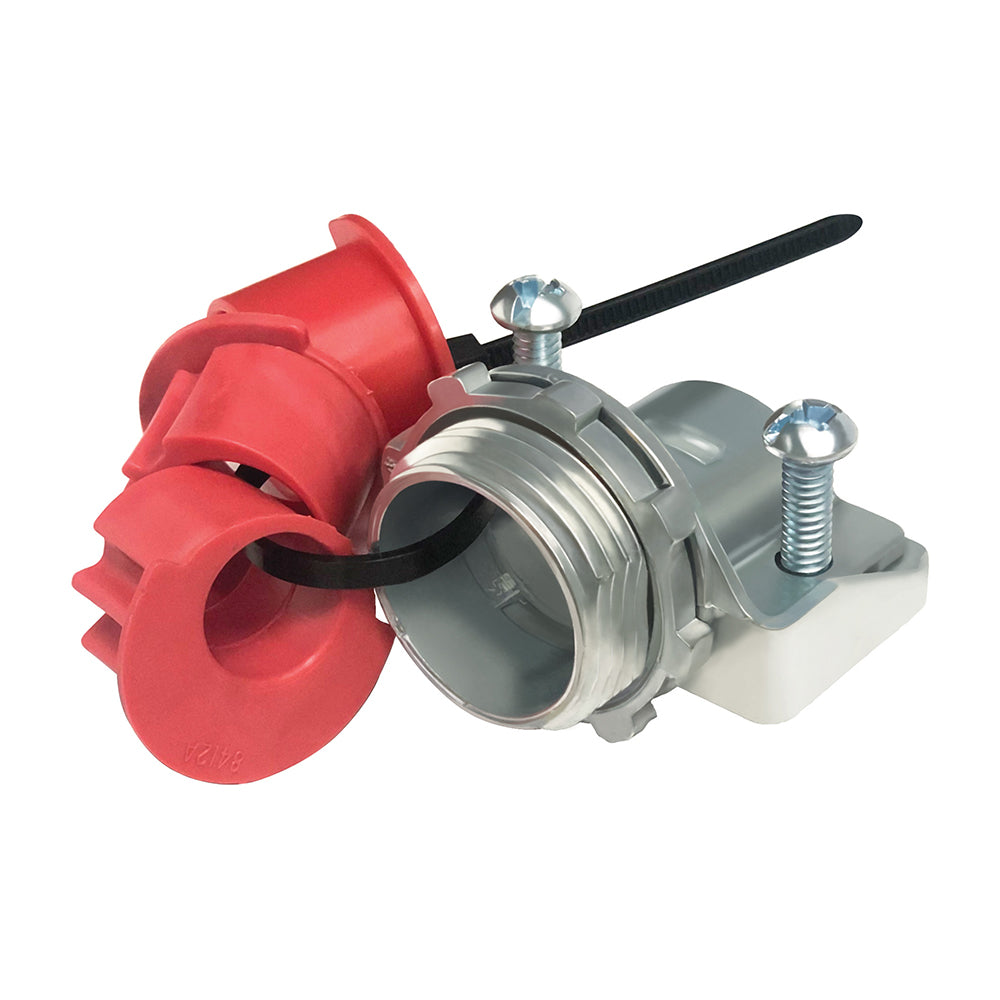

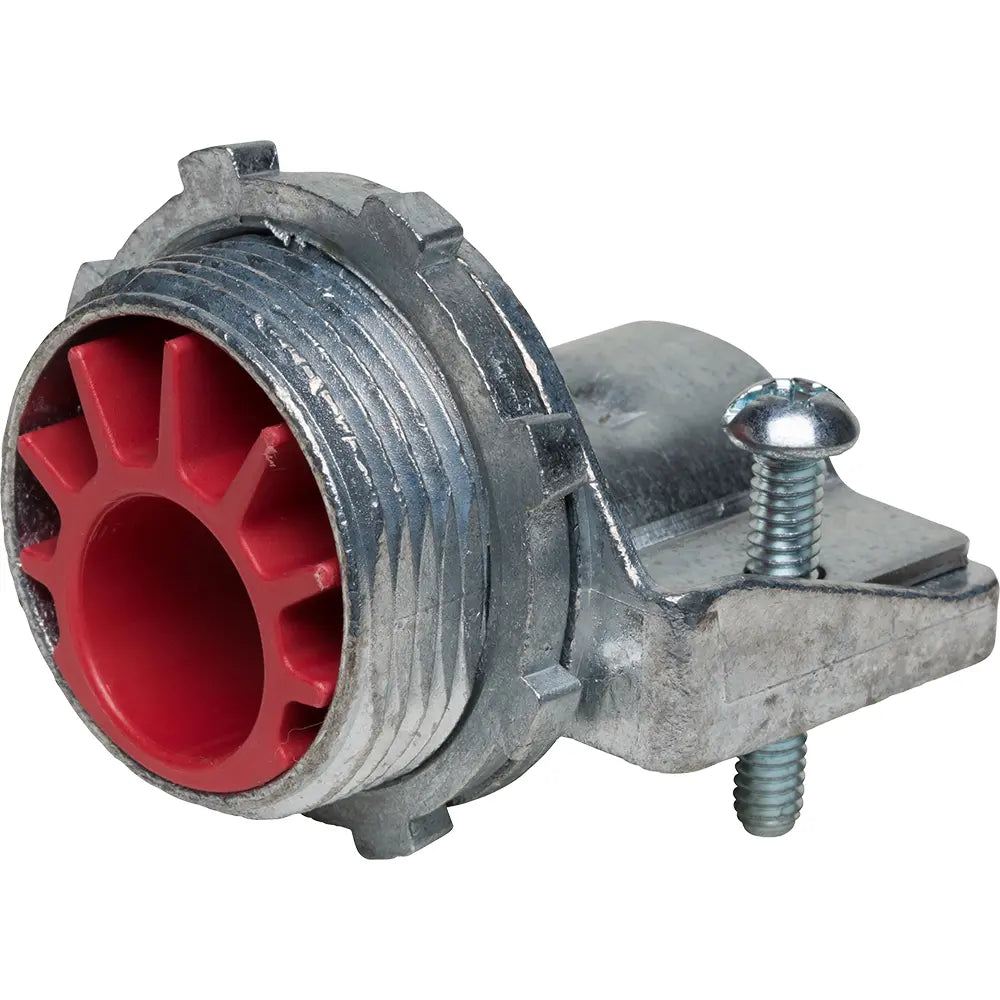

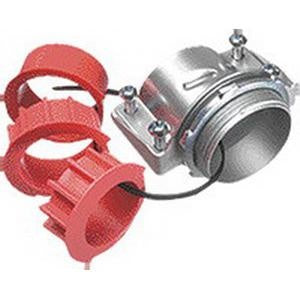

Arlington 8413 Cable Fitting With End Stop Bushing and Built-in End Stop, 1-1/4 in Trade, 1-1/4 in Knockout

Product Description

The Arlington 8413 is a cable connector designed for steel and aluminum cables. It features a zinc die-cast construction and includes a steel strap. This connector simplifies installation with its built-in end stop and additional bushings that allow for a range of cable sizes. It fits securely into a one and one-quarter inch knockout using a steel locknut.

• Concrete tight when taped.
• Snaps quickly onto conduit with a removable screw in spring steel clip.
• Fast and easy installation, no tools required.

Product Highlights

Designed for dry location applications, this connector is suitable for use with various cables, including flexible metallic conduits and armored cables. The design saves installation time and enhances cost efficiency.

Product Information

Standard Information

• Brand: Arlington
• MPN: 8413

Technical Specifications

• Dimensions: 2.156 in L x 1.885 in W x 2.575 in H
• Trade Size: 1-1/4 in
• Knockout Size: 1-1/4 in
• Cable Openings: 1 to 1.46 in
• Material: Die Cast Zinc
• Connection Type: MNPT
• Application: Dry Locations
• Standards: UL Listed, CSA Certified
