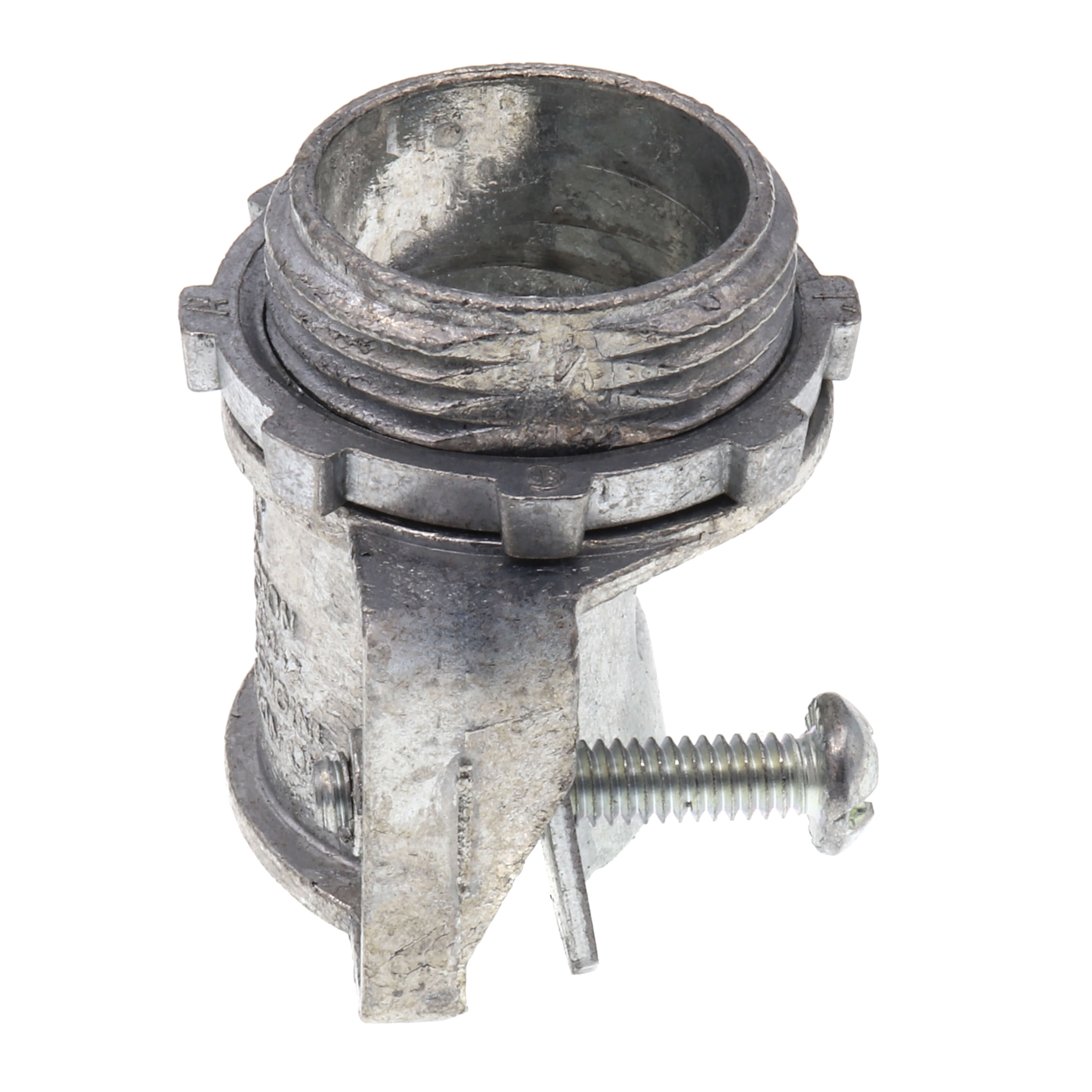

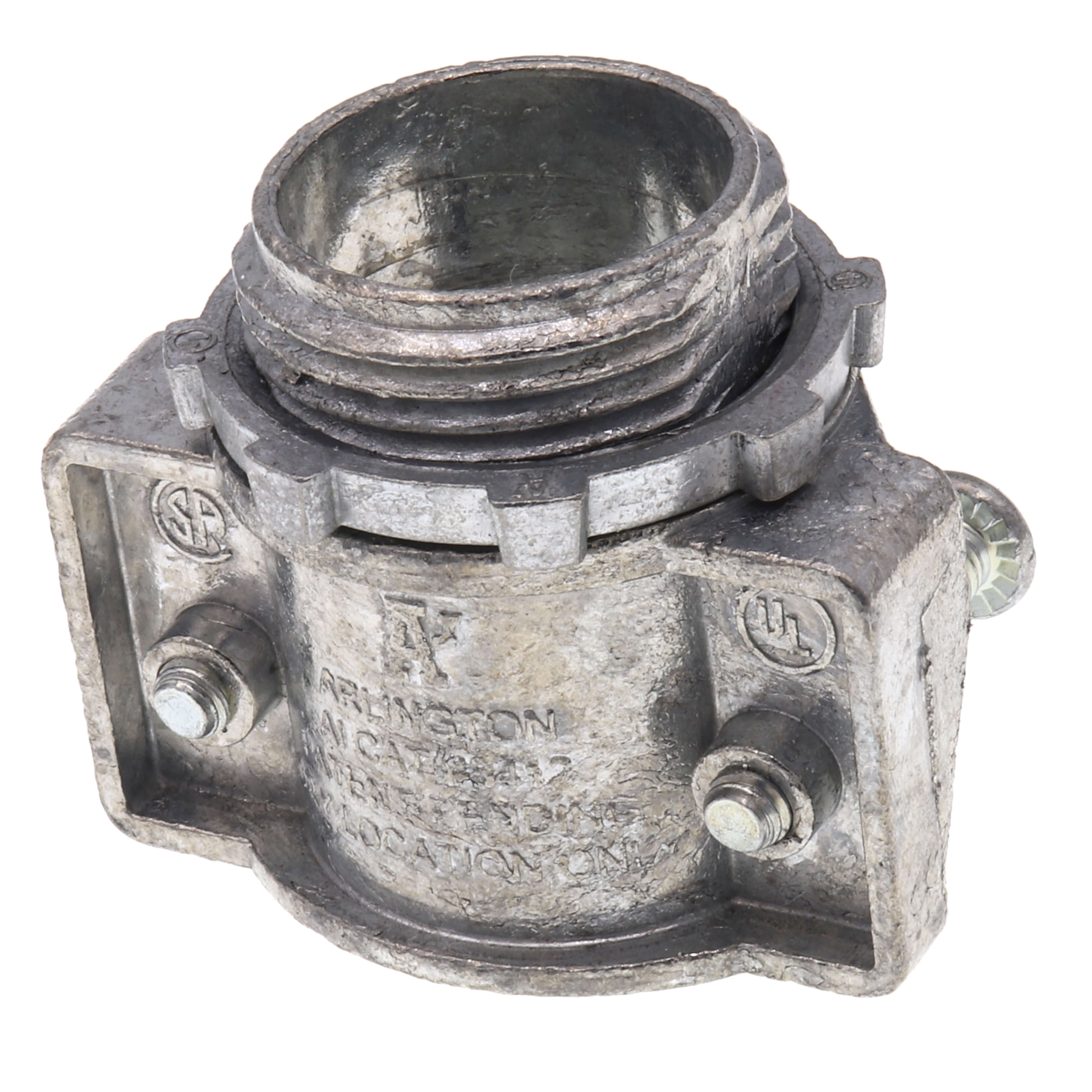

Arlington 8412 Cable Connector with Insulated Throat, 1 in Trade, 1 in Knockout, 0.78-1.12 in Cable Openings

Product Description

The Arlington 8412 cable connector features an insulated throat and is designed for 1-inch trade size and knockout openings, accommodating cable openings from 0.78 to 1.12 inches. This cable connector is suitable for use with non-metallic cable, service entrance cable, metal clad cable and AC cable. It features die-cast zinc construction and offers male threaded connection.

• Features an insulated throat.
• Trade size of 1 inch with a 1-inch knockout.
• Accommodates cable openings from 0.78 to 1.12 inches.

Product Highlights

This Arlington cable connector ensures secure connections for various cable types, offering durability and ease of installation.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 8412
• Country of Origin: US

Technical Specifications

• Brand: ARLINGTON
• Trade Size: 1 in
• Knockout Size: 1 in
• Cable Openings: 0.78-1.12 in
• Cable Type: Aluminum/Steel/Flex/AC/AC90/HCF/MC/MCI/MCI-A/TECK90
• Connection Type: MNPT
• Construction: Die-Cast Zinc
• Connection: Male Threaded
• Conductor Size: 6/3-AWG/KCMIL, 6/4-AWG/KCMIL, 4 - 3-AWG/KCMIL, 4 - 4-AWG/KCMIL, 2 - 3-AWG/KCMIL, 2 - 4-AWG/KCMIL and 1 - 3-AWG/KCMIL
• Listing: UL Listed and CSA Certified
• Material: Zinc
• Standard: cULus
• Application: Non-Metallic Cable, Service Entrance Cable, Metal Clad Cable and AC Cable
• Item: Connector
• Fitting Sub-Category: Straight Connectors
• Conduit Size: 1"
• Cable Opening Min.: 0.780"
• Cable Opening Max.: 1.120"
• Insulated: No
• NPT Size: 1"
• For Use With: MC/HCF Steel and Aluminum Cable, AC/HCF Steel and Aluminum Cable, Flexible Metal Conduit Steel and Aluminum (Regular and Reduced Wall), MC Cable Continuous Corrugated Aluminum, MCI-A cable

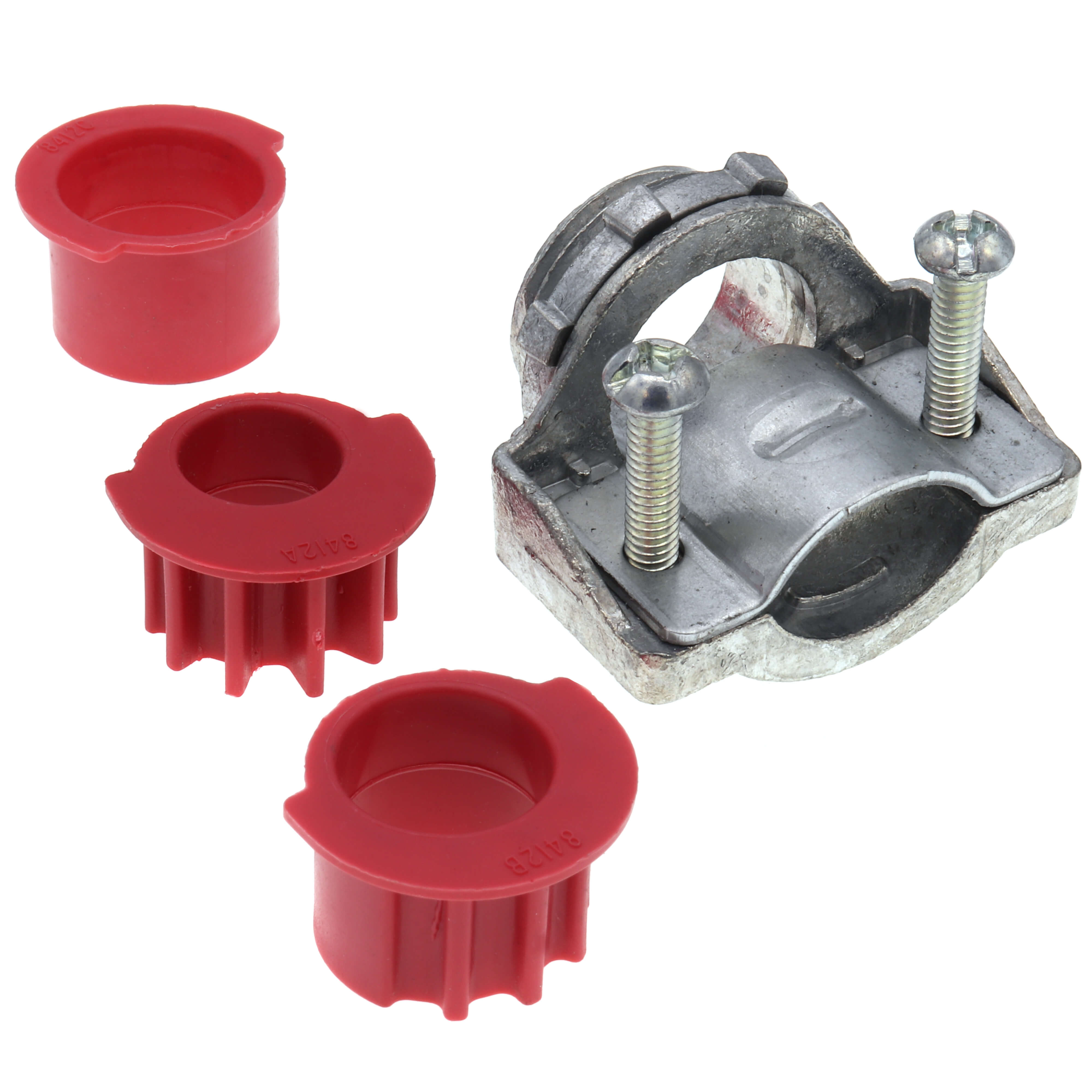

• Description/Special Features: Includes Additional End Stop Bushings
• Standards: UL Listed File No. E 18304, CSA File No. LR49636 RoHS Compliance
• Height: 1.76 Inches
• Width: 1.50 Inches
• Stock Code: 0273-1011
• Country of Origin: US
• Type: 1-Hole AC/MC Strap
• Enclosure: Zinc
• Brand Name: Arlington
• Thread Length: 0.541
• Special Features: 1.12IN OD Cable, 1IN OD Wire Bundle
• Connector Type: Threaded
• Finish: Silver
