Arlington 8412 1 Connector for Larger MC Cable, Silver

Product Description

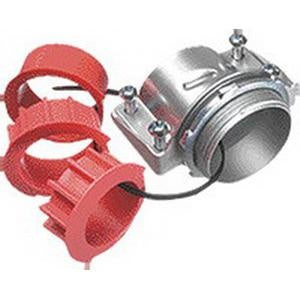

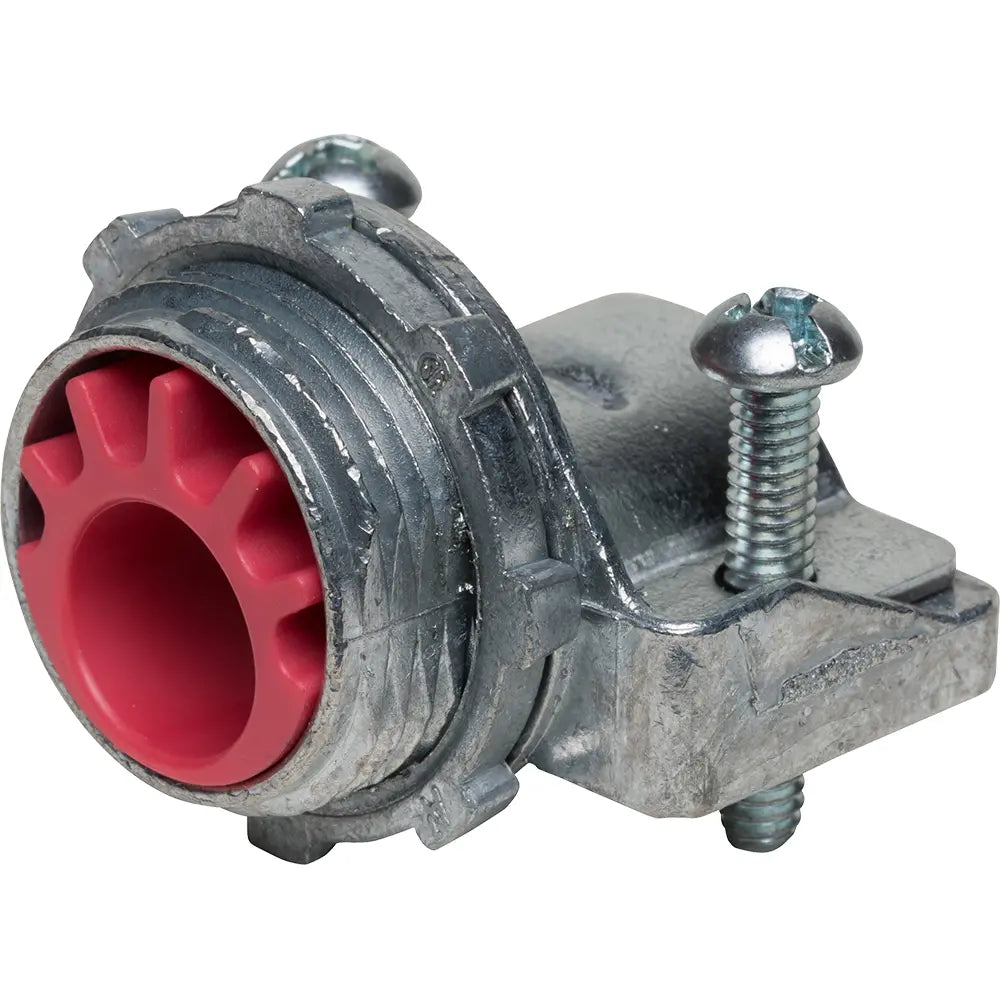

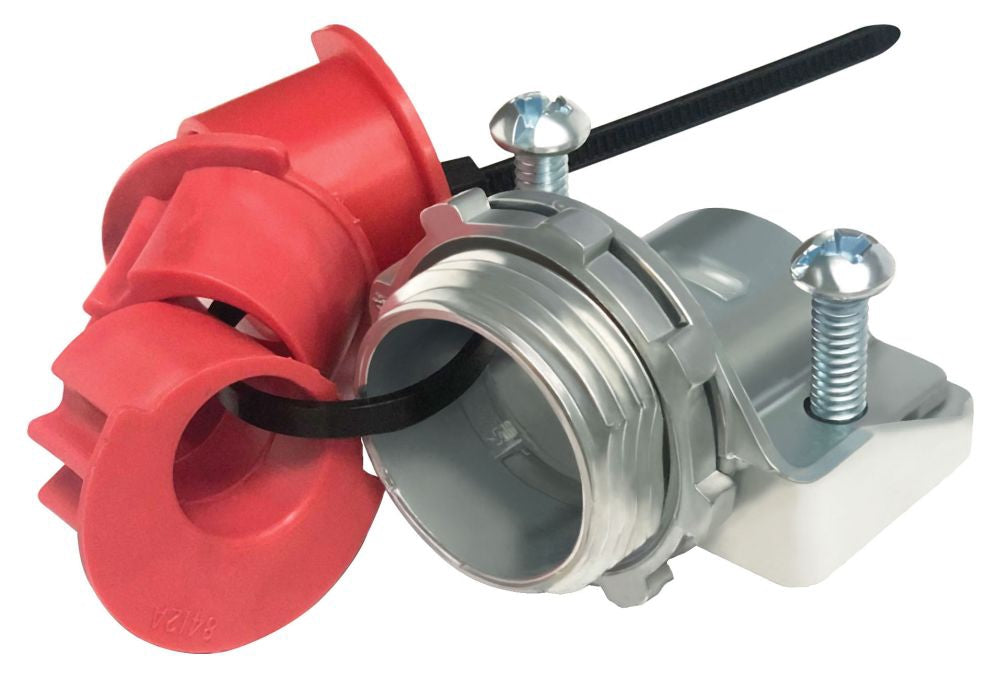

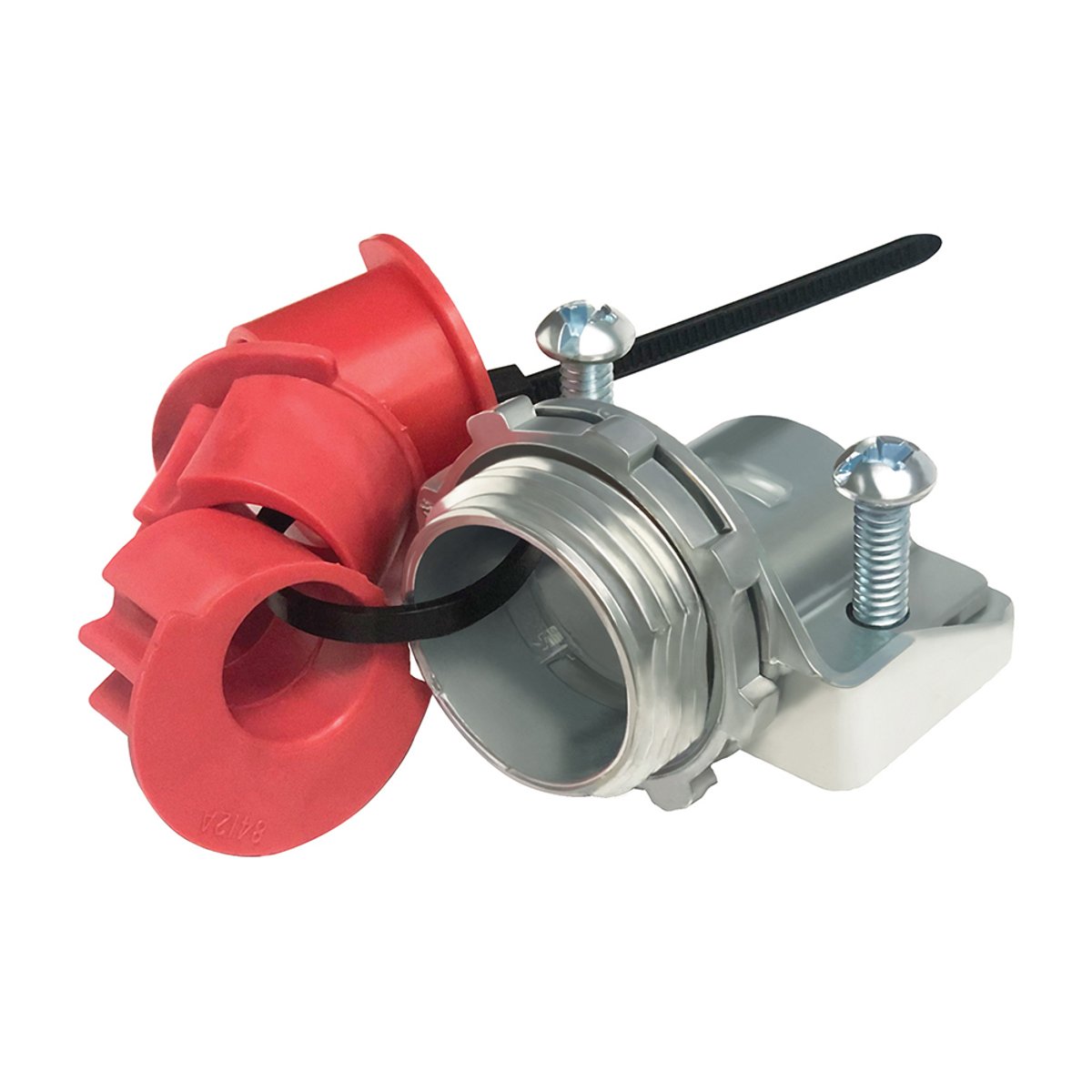

The Arlington cable fitting, model number 8412, is designed for steel and aluminum cable applications. This connector is made from die-cast zinc and features a steel strap for added durability. It includes an end stop with additional bushings, allowing for compatibility with a range of cable sizes. The fitting fits into a one-inch knockout and secures with a steel locknut, ensuring a reliable and watertight connection.

• Constructed from durable zinc die-cast material.
• Compatible with various cable types, ensuring versatility.
• Designed for dry locations; concrete-tight when taped.

Product Highlights

This fitting provides a cost-effective solution for connecting metal clad and flexible cables in various installation scenarios.

Product Information

Standard Information

• Manufacturer: Arlington
• Part Number: 8412

Technical Specifications

• Knockout Size: 1 inch
• Cable Openings: 0.78 to 1.12 inches
• Dimensions: 1.756 inches length x 1.5 inches width x 2.144 inches height
• Material: Die cast zinc
• Connection Type: MNPT
