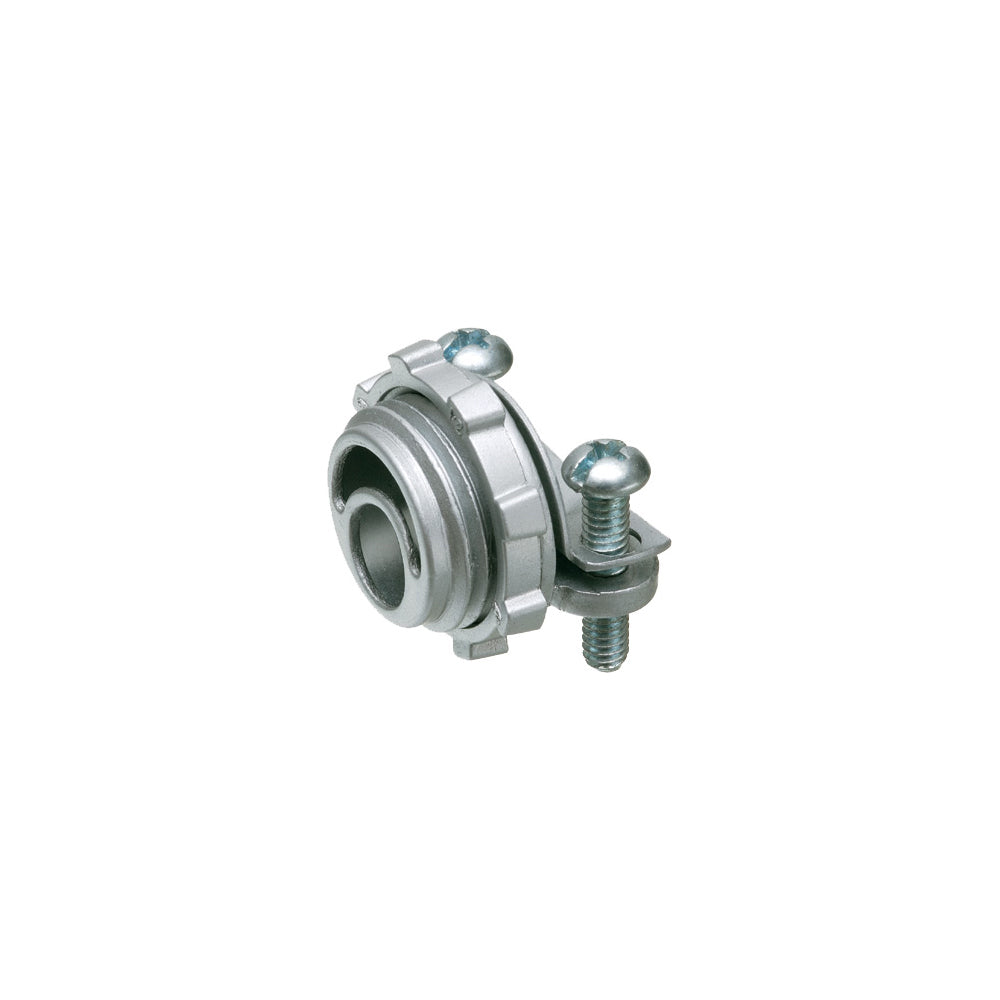

Arlington 8403 Straight Cable Connector 1 in Trade 0.84 in Dia Round End Stop

Product Description

The Arlington 8403 is a straight cable connector designed for trade applications. It features a trade size of one inch and accommodates cable openings between zero point seven eight and zero point nine eight inches. The connector is constructed from die cast zinc for durability and reliability. It effectively secures cables into knockout areas using a screw clamp connection.

• Constructed from robust die cast zinc
• Accommodates cables ranging from zero point seven eight to zero point nine eight inches
• One inch knockout and trade size

Product Highlights

This connector is suitable for various cable types such as Flex, AC, NM, MC, MCI, SC, and SE cables. It ensures a secure fit and is ideal for installations requiring a dependable connection in electrical systems.

Product Information

Standard Information

• Manufacturer: Arlington
• Part Number: 8403

Technical Specifications

• Cable Type: Flex/AC/NM/MC/MCI/SC/SE
• Color: Silver
• Connection Type: Screw Clamp
• Dimensions: 1.184 in L x 1.5 in W x 1.5 in H
• Type: Straight
• Trade Size: 1 in
• Knockout Size: 1 in
• Cable Openings: 0.78 to 0.98 in
• Material: Die Cast Zinc
