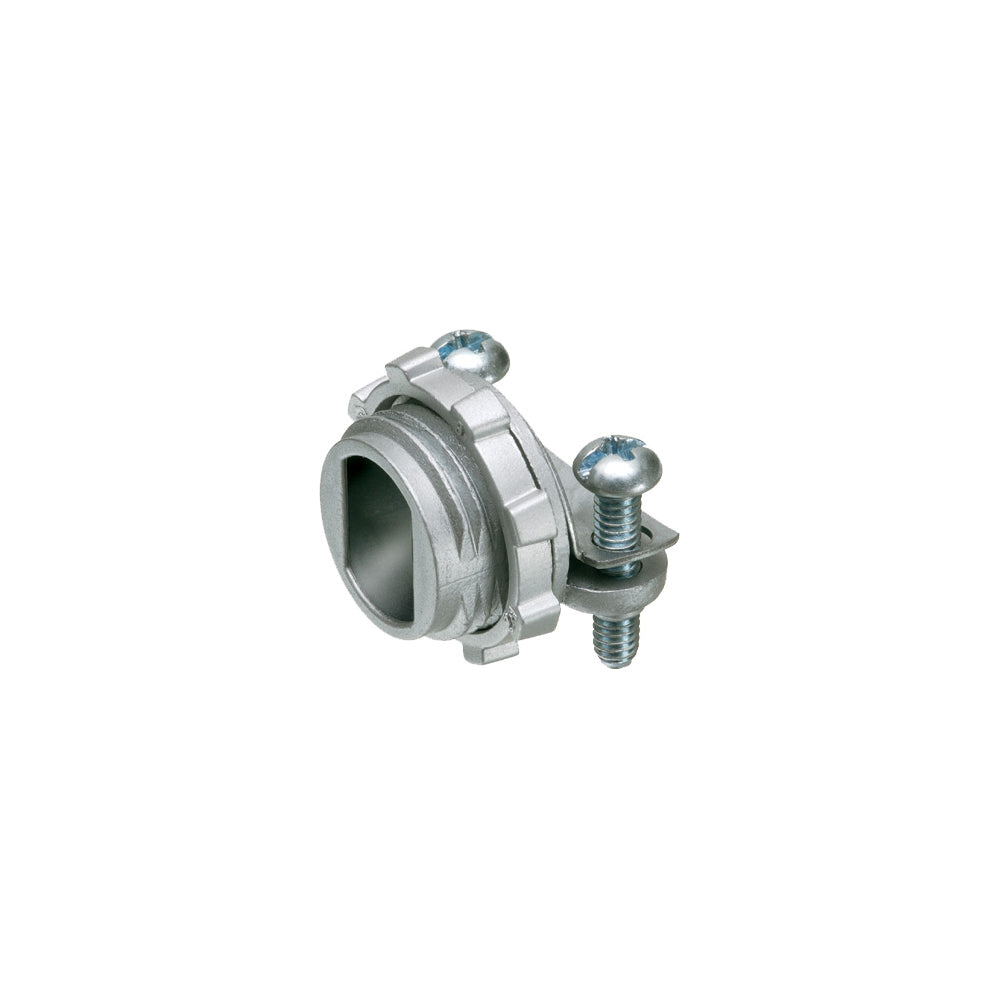

Arlington 840 Straight Cable Connector With 0.4 x 0.58 in Dia Rectangular End Stop, 1 in Trade, 1/2 in Knockout, 0.225 to 0.612 in Cable Openings

Product Description

Arlington 840 is a cable connector designed for use with Flex, AC, NM, MC, MCI, MCI-A, SC, and SE cables. It has a straight design and accommodates one-half inch knockouts. The cable openings range from zero point two two five inches to zero point six one two inches.

• Constructed from durable die-cast zinc
• End stop diameter is zero point four inches by zero point five eight inches
• Easy installation with screw clamp connection

Product Highlights

This connector provides a secure and reliable connection for armored and metal clad cables. It features a built-in end stop and additional bushings to reduce inventory needs.

Product Information

Standard Information

• Manufacturer: Arlington
• Part Number: 840

Technical Specifications

• Cable Openings: 0.225 to 0.612 in
• Cable Type: Flex/AC/NM/MC/MCI/MCI-A/SC/SE
• Material: Die Cast Zinc
• Dimensions: 0.86 in L x 0.876 in W x 0.876 in H
• Knockout Size: 1/2 in
• Connection Type: Screw Clamp
• Standards/Approvals: CSA File No. LR49636 | UL Listed
• Trade Size: 1 in
• Type: Straight
