Arlington 7510AST Connector CBL 3/4IN 3/4IN DIE CAST ZINC

Product Description

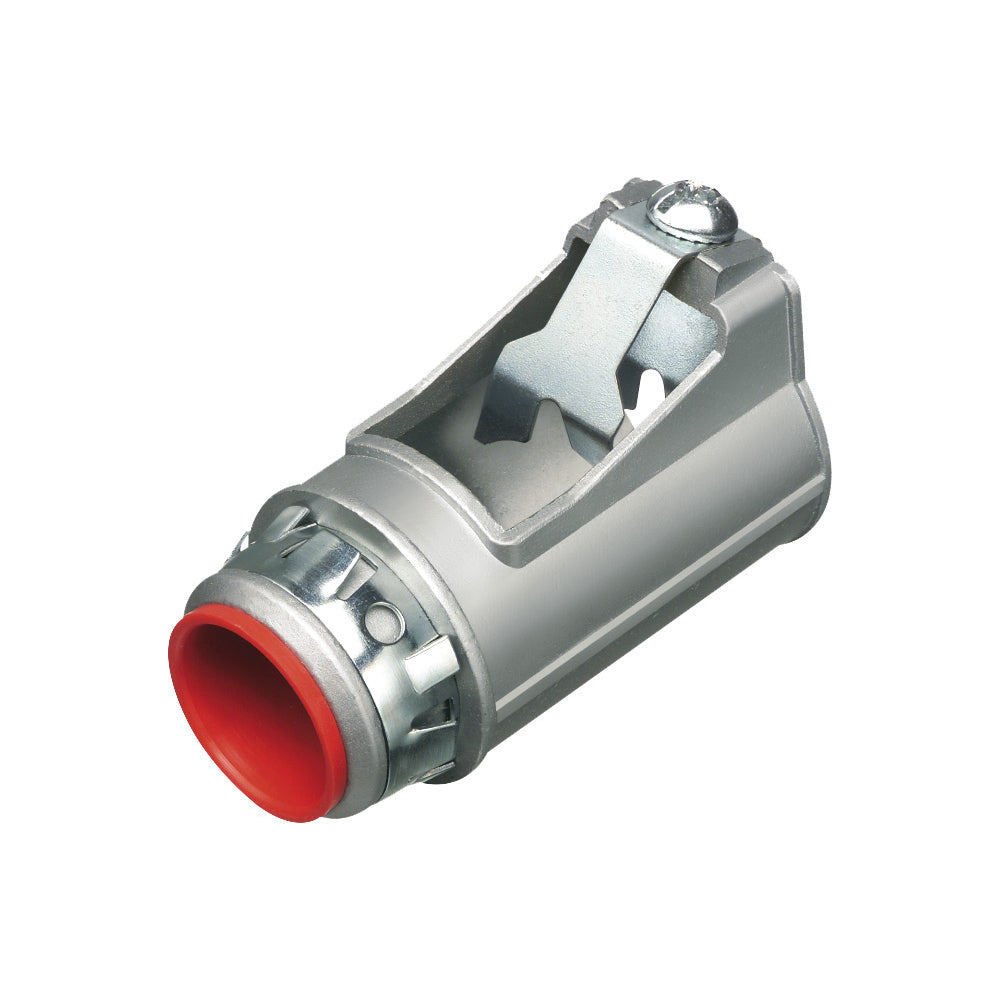

The Arlington 7510AST is a zinc die-cast, three-fourths inch knockout MC cable connector designed for quick installation. It snaps easily onto conduits with a removable screw in spring steel clip, securing firmly into knockouts with an external spring steel clip without requiring any tools. This connector maintains a concrete-tight seal when taped and features an insulated throat for enhanced safety.

• Quick installation without tools
• Fits multiple cable types: AC, MCI, MC-PCS
• Accommodates a range of cable sizes from fourteen-two to ten-four AWG

Product Highlights

The Arlington 7510AST offers a reliable connection for steel and aluminum flexible conduits, ensuring a secure and efficient installation process.

Product Information

Standard Information

• Manufacturer: Arlington
• Material: Die Cast Zinc

Technical Specifications

• Type: Coupler
• Cable Openings: 0.895 to 1.11 inches
• Knockout Size: 3/4 inch
• Trade Size: 3/4 inch
• Dimensions: 2.496 inches high x 1.709 inches wide
• Standards/Approvals: CSA LR84319, UL File No. E7819
• UNSPSC Code: 39121311
