Arlington 720GB5 Grounding Bridge Clamp 1/2 in, 5/8 in, 3/4 in Rod

Product Description

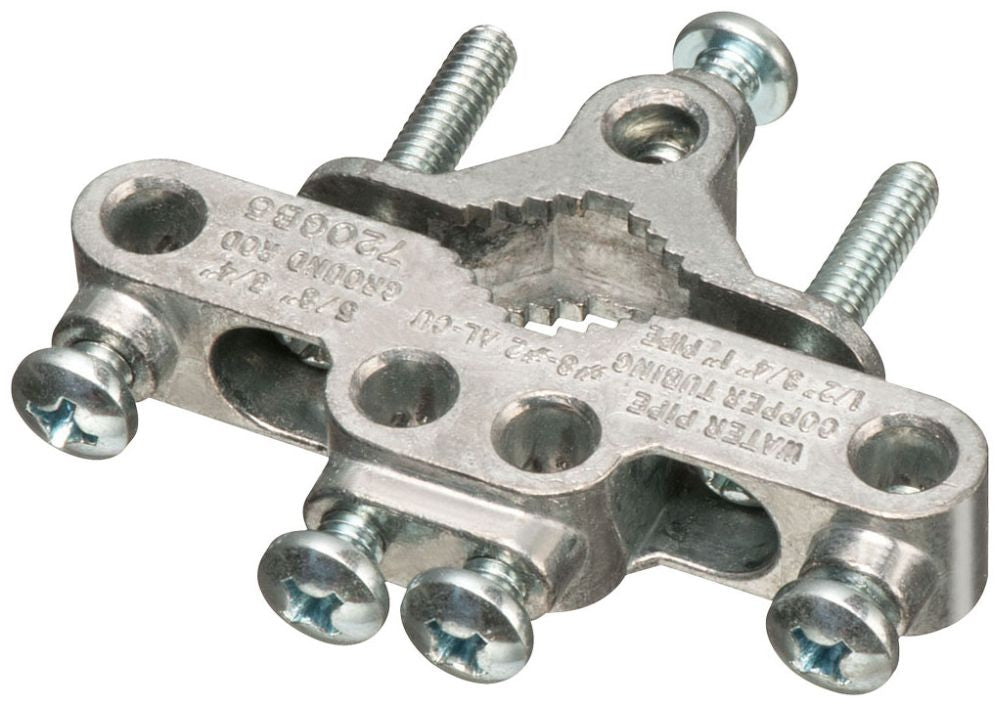

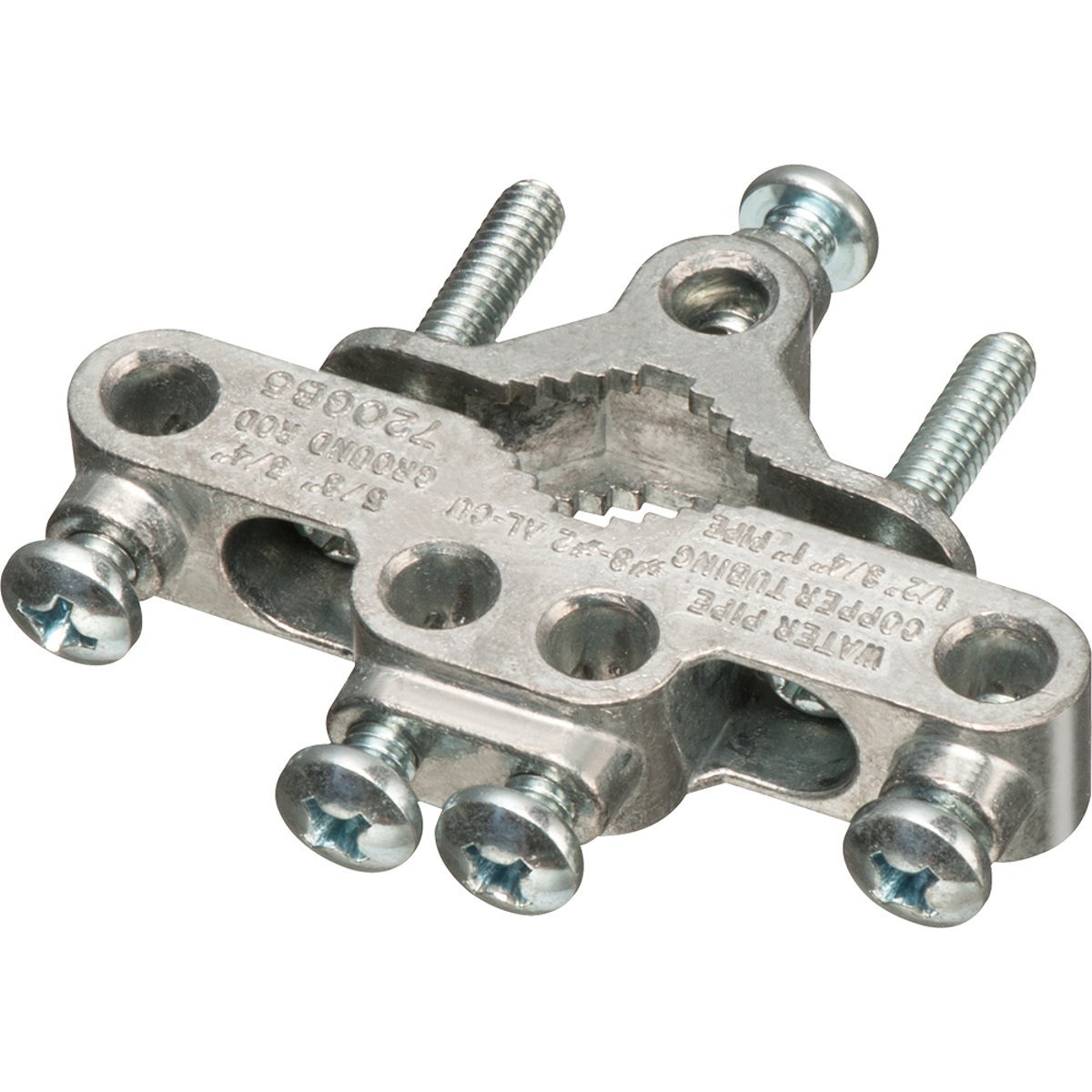

The Arlington 720GB5 grounding bridge clamp provides reliable intersystem bonding between power and communication grounding systems. Constructed from solid zinc with plated steel screws, this clamp handles multiple hookups for communication systems like telephone, CATV, or satellite dishes. It is designed for 1/2 to 1 in pipe and 1/2 in, 5/8 in, 3/4 in rod, accommodating 14 to 4 AWG solid or stranded aluminum/copper conductors.

• Features four termination points for bonding conductors
• Accommodates 8 to 2 AWG equipment grounding conductor and grounding electrode
• Easy to install

Product Highlights

The Arlington grounding bridge clamp ensures secure intersystem bonding for various communication systems, suitable for both indoor and outdoor applications.

Product Information

Standard Information

• Brand: Arlington
• Manufacturer Part Number: 720GB5
• Country of Origin: USA

Technical Specifications

• Color: Silver
• Material: Solid Zinc
• Rod Size: 1/2 in, 5/8 in, 3/4 in
• Pipe Size: 1/2 to 1 in
• Conductor Size: 14 to 4 AWG
• Conductor Type: Solid/Stranded Aluminum/Copper
• Catalog Number: 720GB5
• Manufacturer: Arlington
• Brand: Arlington
• Country of Origin: United States
• Made in USA: Yes
• Standard: UL and CSA
• UPC: 018997097545
• GTIN: 00018997097545
• Finish: Zinc
• Mfg Standards/Approvals: CSA Certified, UL Listed
• Type: Grounding Bridge
• Equipment Grounding Conductor: #8 to #2
• Ground Requirements: Meets 250.94 of the 2011 NEC
• Ground Rod Size: 1/2", 5/8", or 3/4"
• Grounding Electrode: #8 to #2
• Intersystem Bonding and Grounding Conductors: #14 to #4 Copper or Aluminum - Solid or Stranded
• Termination Points: (4) Four
• Trade Size: 1/2" to 1" Pipe
