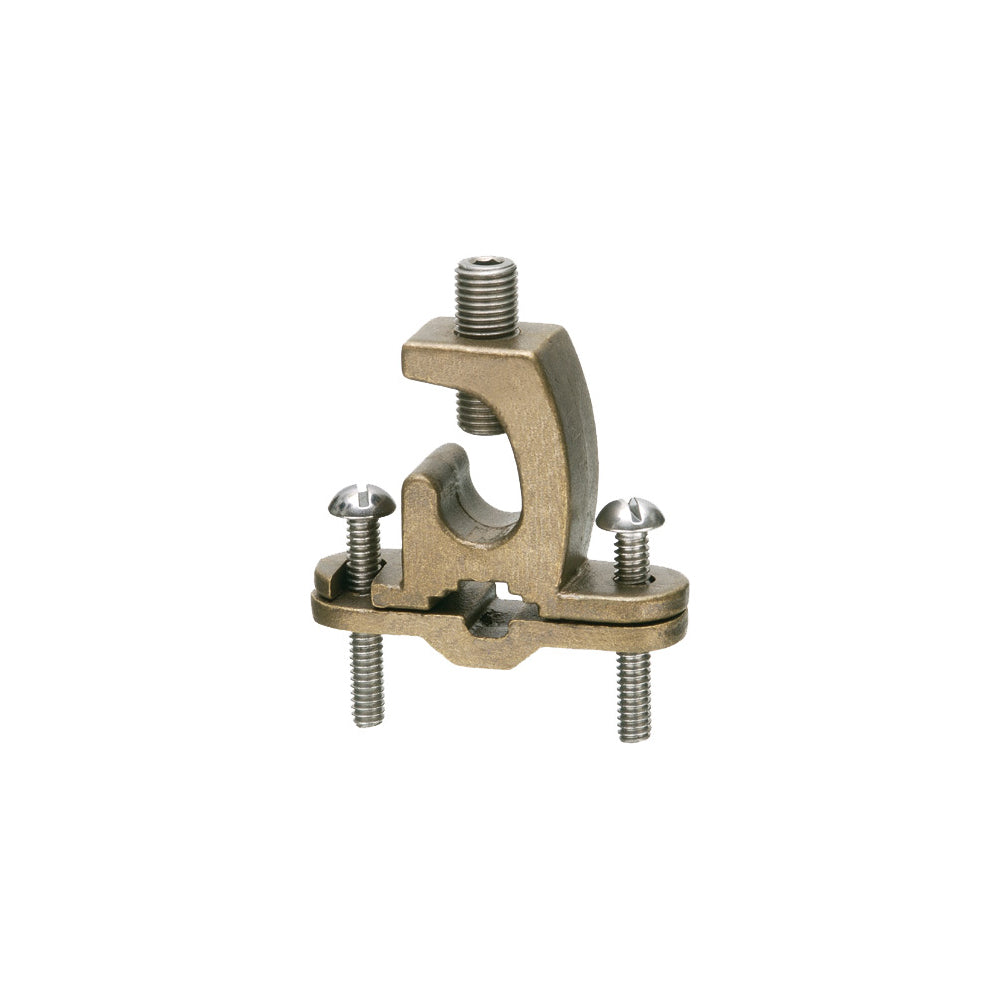

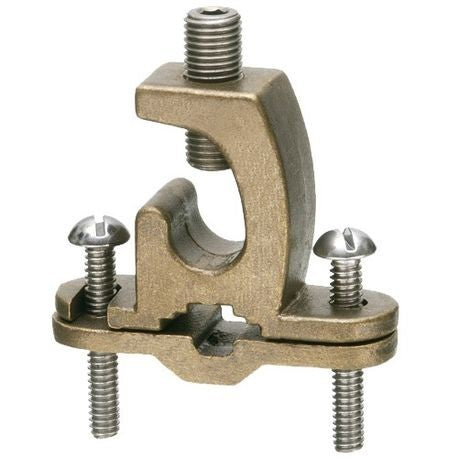

Arlington 719DB Bare Wire Ground Clamp with Lay-In Lug, 3/8 to 1 in Pipe, Approved for Direct Burial

Product Description

The Arlington 719DB is a bare wire ground clamp designed to secure wires to rebar and pipe. This clamp features stainless steel screws and can accommodate pipe sizes from three eighths to one inch. It supports wire sizes ranging from eight to four aught AWG. The clamp is approved for direct burial applications in concrete and soil.

• Compatible with three eighths to one inch pipe sizes
• Accepts wire sizes from eight to four aught AWG
• Constructed from solid bronze for durability

Product Highlights

This ground clamp is suitable for a variety of grounding applications. It ensures secure connections for electrical systems.

Product Information

Standard Information

• Manufacturer: Arlington
• MPN: 719DB

Technical Specifications

• Pipe Size: 3/8 to 1 inch
• Wire Size: #8 to 4/0 AWG
• Material: Bronze with stainless steel screws
• Application: Direct burial on rebar, pipe, tubing, and rod
• Approval: UL listed
• Warranty: One year against manufacturer defects
• Dimensions: 1.125 x 2.588 x 0.88 inches
