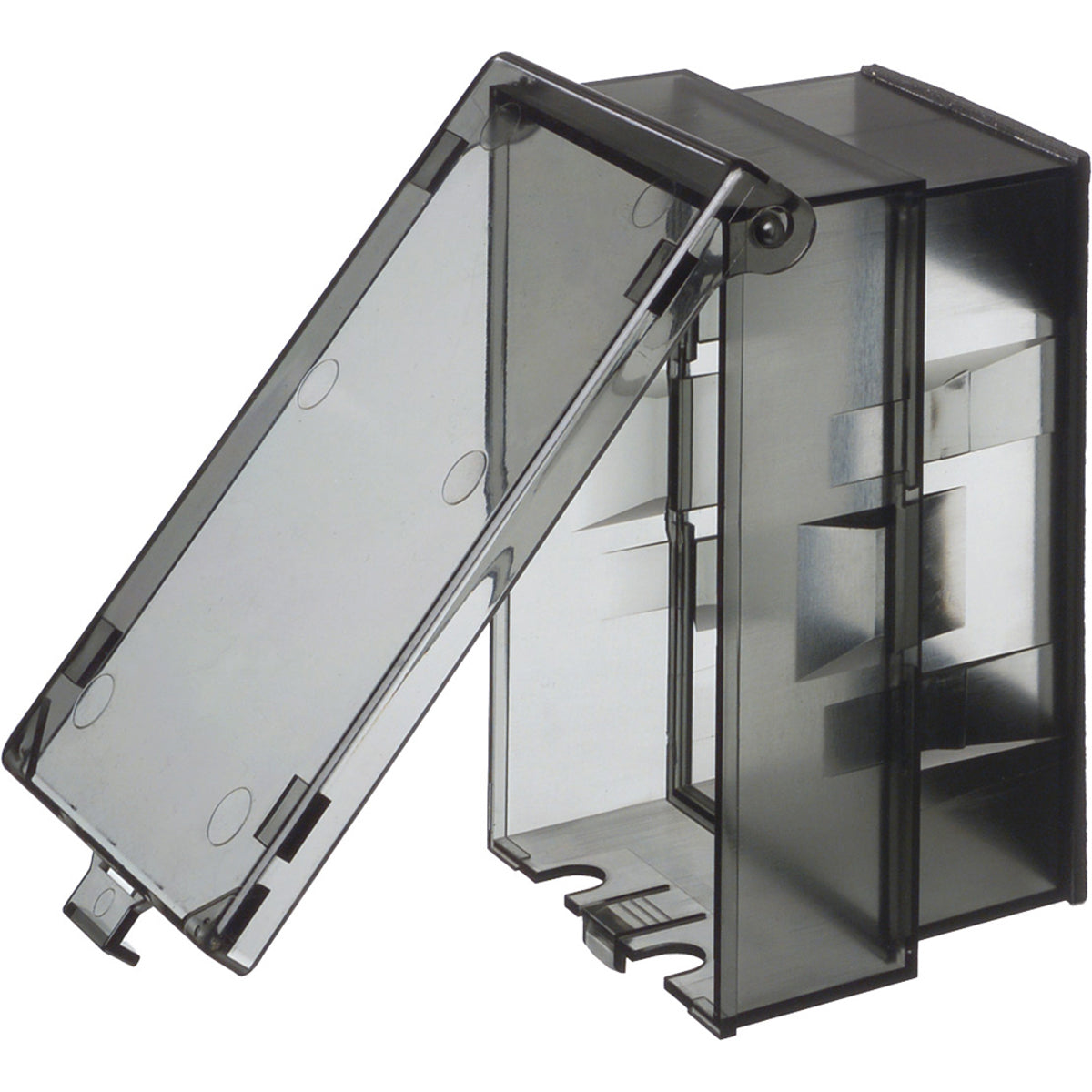

Arlington 61VC is an IN-AND-OUT while-in-use collapsible extra duty low-profile weatherproof cover for one-gang receptacles. It provides a sealed box when closed to keep insects out and extends to the out position to accommodate a plug, meeting extra-duty code requirements for outdoor 15/20 A receptacles. The UV-rated plastic cover has an installed oversized base for large openings or a 3-1/2 in round outlet box and a removable faceplate for device installation. Vertical surface-mount design includes duplex and GFCI faceplates, an installation screw, and an installed gasket.
Sealed in position to keep bugs out; collapsible design extends to accommodate a plug
UV-rated plastic construction with installed oversized base fits large openings or 3-1/2 in round outlet boxes
Includes standard duplex and GFCI faceplates, installation screw, and installed gasket; cover is removable for device installation
Product Highlights
Collapsible in-use weatherproof cover for 1-gang outdoor 15/20 A receptacles
Product Information
Standard Information
Brand: ARLINGTON
Manufacturer Part Number: 61VC
Country of Origin: United States
Technical Specifications
Manufacturer Part Number
61VC
Brand
Arlington
Product Type
Collapsible extra duty low profile weatherproof in-and-out while-in-use cover
Number of Gangs
1
Cover Type
Receptacle
Material
UV-rated plastic
Finish
Painted/Textured
Shape
Rectangle
Dimensions
4.25 x 5.56 x 1.67 inches (L x W x D)
Mounting Type
Surface mount
Mounting Orientation
Vertical
Country of Origin
US
Standards/Certifications
cULus Listed; NEC Certified; ECCN: EAR99
Compatible Box Size
Installed oversized base fits large openings or 3-1/2 in round outlet box
Included Components
Standard duplex faceplate; GFCI faceplate; installation screw; installed gasket
Application
For outdoor 15/20 A receptacles; suitable for new or existing construction
Special Features
Sealed box when closed; extends to accommodate plug; removable cover for easier device installation; UV-rated
