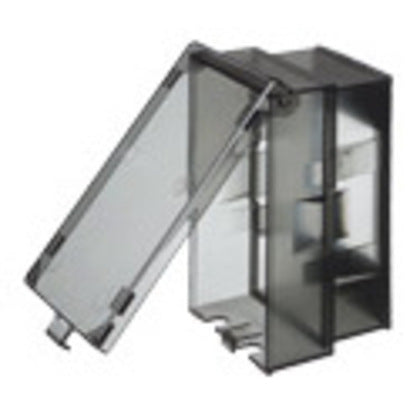

Arlington 61HW In-and-Out Collapsible Extra Duty Low Profile Weatherproof Cover 1-Gang (5.56 x 4.25 x 1.67 in)

Product Description

The Arlington 61HW In-and-Out cover is a collapsible extra-duty low-profile weatherproof receptacle cover for 1-gang surface-mounted installations. Constructed of UV-rated plastic with a painted/textured finish, it measures 5.56 in x 4.25 in x 1.67 in and includes an oversized base to fit large openings or a 3-1/2 in round outlet box. The cover seals cord holes in the in position, extends for a plugged cord, and meets NEC 406.9 and cULus/UL standards.

• UV-rated plastic construction with painted/textured finish; dimensions 5.56 x 4.25 x 1.67 in
• Sealed cord holes in the in position to prevent insects; extends to an out position for a plugged cord
• Includes standard duplex and GFCI faceplates, installation screw, and preinstalled gasket; oversized base fits large openings or 3-1/2 in round box

Product Highlights

Low-profile collapsible weatherproof receptacle cover for 1-gang surface-mounted applications

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 61HW
• Country of Origin: USA

Technical Specifications

• Brand: Arlington
• Manufacturer Part Number: 61HW
• Product Type: Collapsible extra-duty low profile weatherproof receptacle cover
• Material: UV-rated plastic
• Finish: Painted/Textured
• Color: White
• Mounting Type: Surface / Box mount
• Mounting Orientation: Horizontal
• Number of Gangs: 1
• Dimensions (L x W x D): 5.56 in x 4.25 in x 1.67 in
• Includes: Standard duplex faceplate, GFCI faceplate, installation screw, installed gasket
• Application: For new or existing construction and outdoor 15/20 A receptacles applications
• Oversized Base: Fits large openings or a 3-1/2 in round outlet box
• Standards/Certifications: CEC 2002 | CSA Certified | cULus Listed | UL Listed | NEC 406.9
• Country of Origin: USA
• UPC: 018997006851
• Type: 1-Gang, horizontal low-profile IN-and-OUT cover
• Manufacturer Part Number (MPN): 61HW
