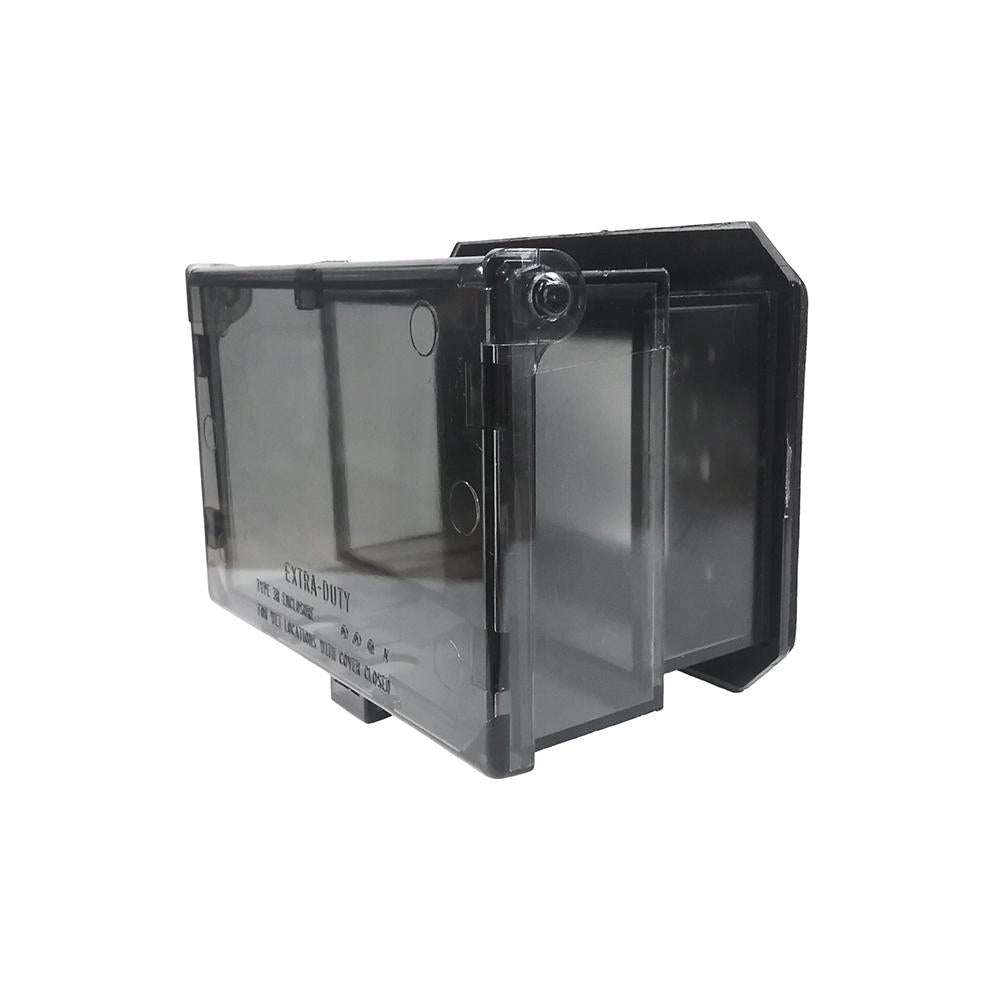

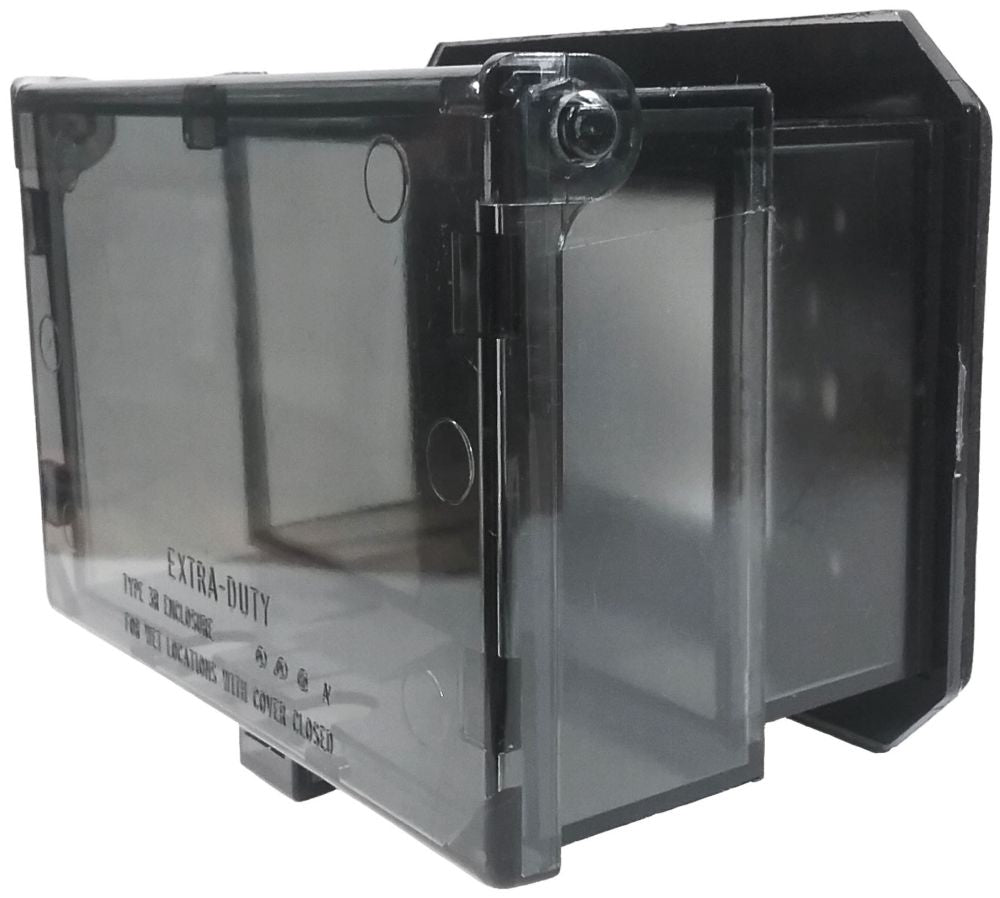

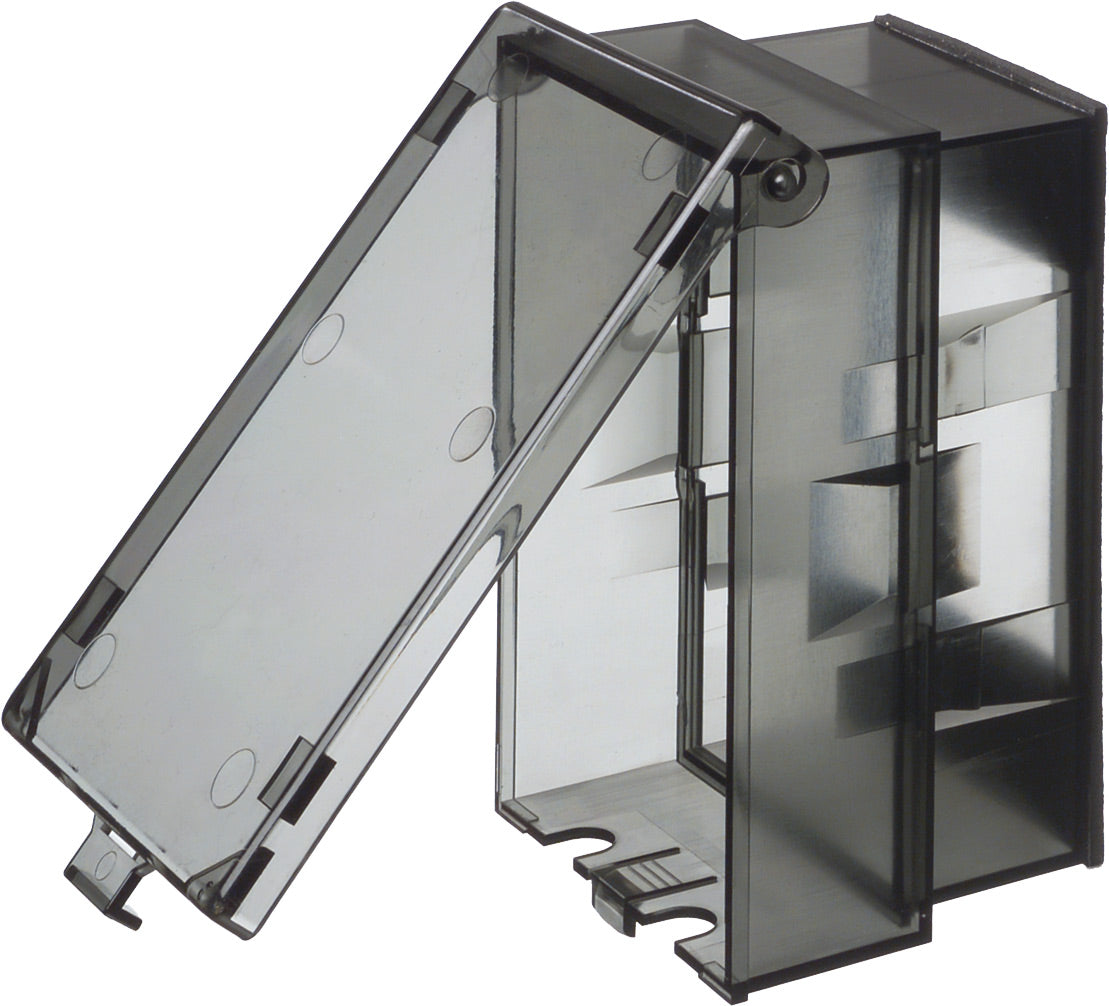

Arlington 61HC Collapsible Extra Duty Low Profile Weatherproof Cover (5.56 x 4.25 x 1.67 in)

Product Description

The Arlington 61HC is a collapsible extra-duty low profile weatherproof cover for one-gang receptacles. It remains low profile when not in use and extends to a deeper, weatherproof in-use position to accommodate a plug; cord holes seal in the closed position to keep bugs out. Constructed of UV-rated painted/textured plastic for horizontal surface mounting, it fits oversized openings and a 3-1/2 inch round outlet box and meets extra-duty code requirements.

• Sealed cord holes in the closed position to prevent insect entry
• Extends to a weatherproof in-use position to accommodate a plug and meets extra-duty code requirements
• UV-rated painted/textured plastic, surface mount, horizontal orientation; oversized base fits large openings or a 3-1/2 in round box

Product Highlights

Low-profile collapsible while-in-use receptacle cover for single-gang installations; dimensions 5.56 x 4.25 x 1.67 in; UV-rated plastic; cULus/UL/CSA listed.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 61HC
• Country of Origin: United States

Technical Specifications

• Manufacturer Part Number: 61HC
• Brand: Arlington
• Product Type: Collapsible extra-duty low profile weatherproof while-in-use cover
• Material: UV-rated plastic
• Finish: Painted/textured
• Mounting Type: Surface mount
• Mounting Orientation: Horizontal
• Number of Gangs: 1
• Cover Type: Receptacle
• Shape: Rectangle
• Dimensions: 5.56 in x 4.25 in x 1.67 in (L x W x D)
• Application: Outdoor; new and existing construction; for outdoor 15/20 A receptacles
• Standards/Certifications: cULus Listed; UL Listed; CSA Certified; NEC 406.9 compliance; RoHS Compliant; ARRA Compliant; BAA Compliant; CEC 2002
• Country of Origin: United States
• UPC: 018997006875
• Weight: 0.65 lb
