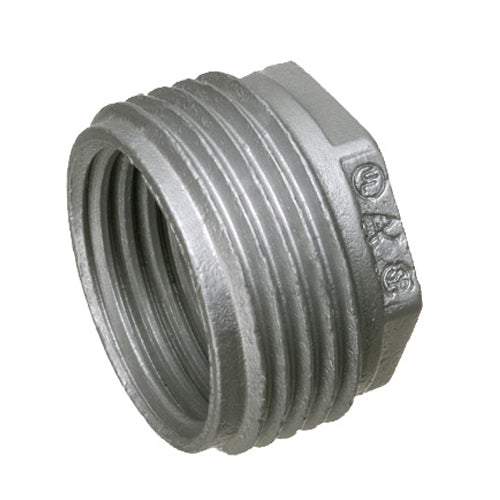

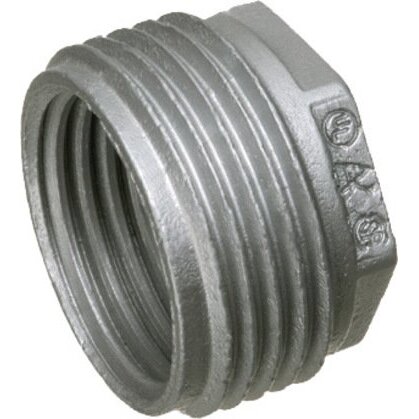

Arlington 528 Reducing Bushing 1-1/2 x 1/2 in Trade

Product Description

The ARLINGTON 528 reducing bushing is for 1-1/2 to 1/2 inch rigid/IMC conduit. It reduces the size of female hubs in order to accommodate smaller sized conduits or male threaded hubs. The bushing has durable zinc die cast construction that ensures mechanical protection to the conduit and electrical junction box or enclosure.

• Used with threaded rigid or IMC conduits
• Reduces the size of female hubs
• Accommodates smaller sized conduits or male threaded hubs

Product Highlights

The Arlington reducing bushing is excellent for use in damp locations, with exceptional corrosion protection and maintains ground path.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 528
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UPC: 01899700528
• UNSPSC: 39121312
• Standard: UL E60812 Listed, CSA LR49636 Certified
• Material: Die Cast Zinc
• Use With: Rigid/IMC Conduit
• Diameter: 1/2 in, 1 1/2 in
• Unit Packaging: 25pcs
• Standard Packaging: 25pcs
• Weight: 0.232 lbs/each
• Height: 1.700"
• Width: 1.700"
• Trade Size: 1-1/2" x 1/2"
• Size: 1-1/2 x 1/2 In.
• Type: Hex Head
• Listing: UL CSA
• Applications: For IMC And Rigid Conduits
• TC Connection: Threaded
• Pkg Qty: 25 pc
• Part Number: 528
• Construction: Die-Cast
