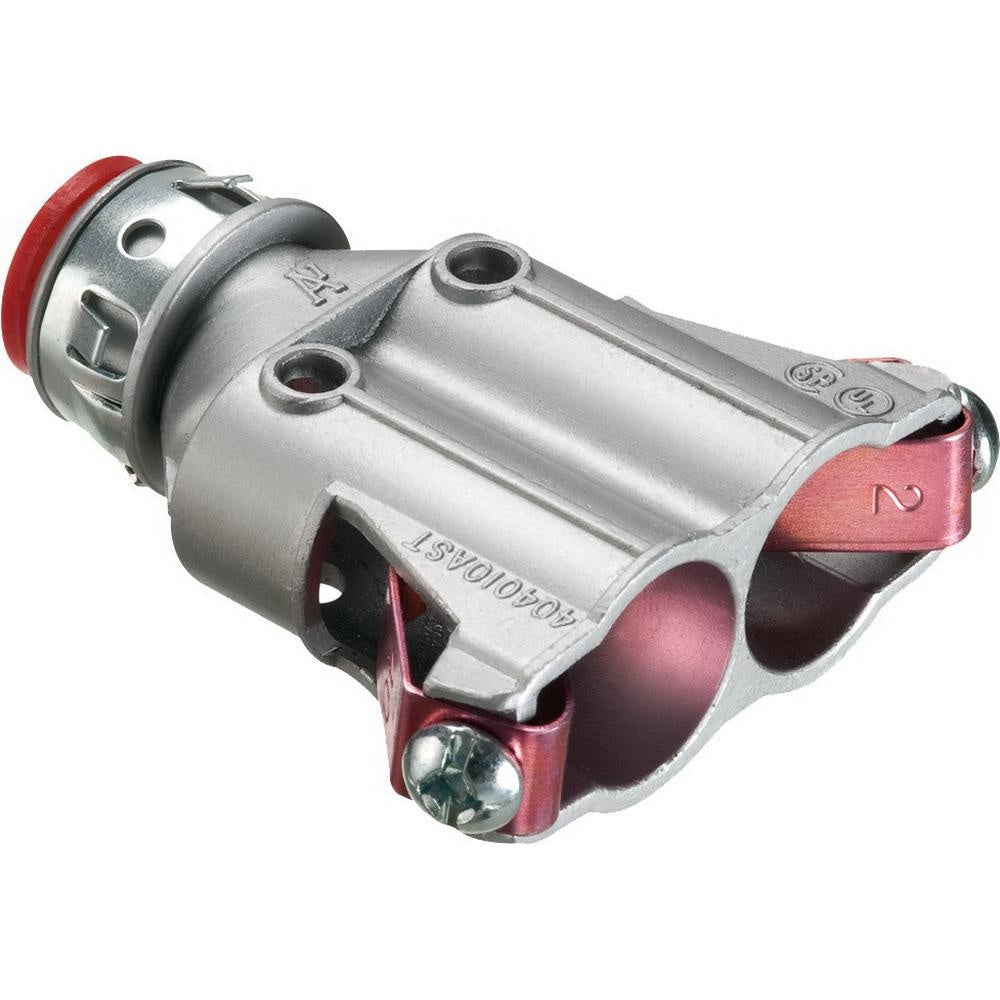

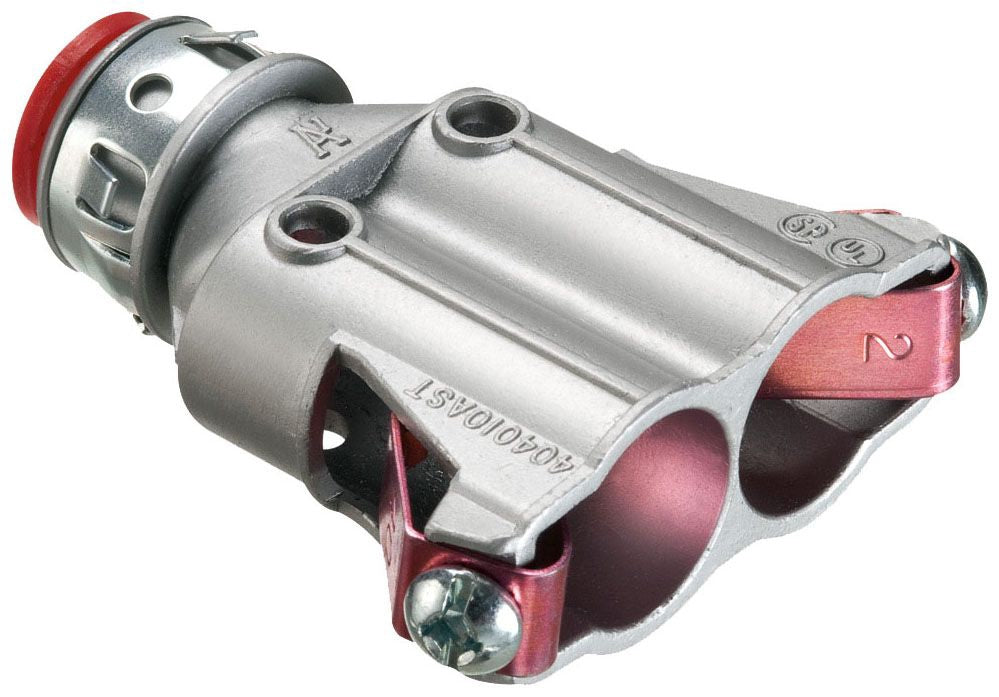

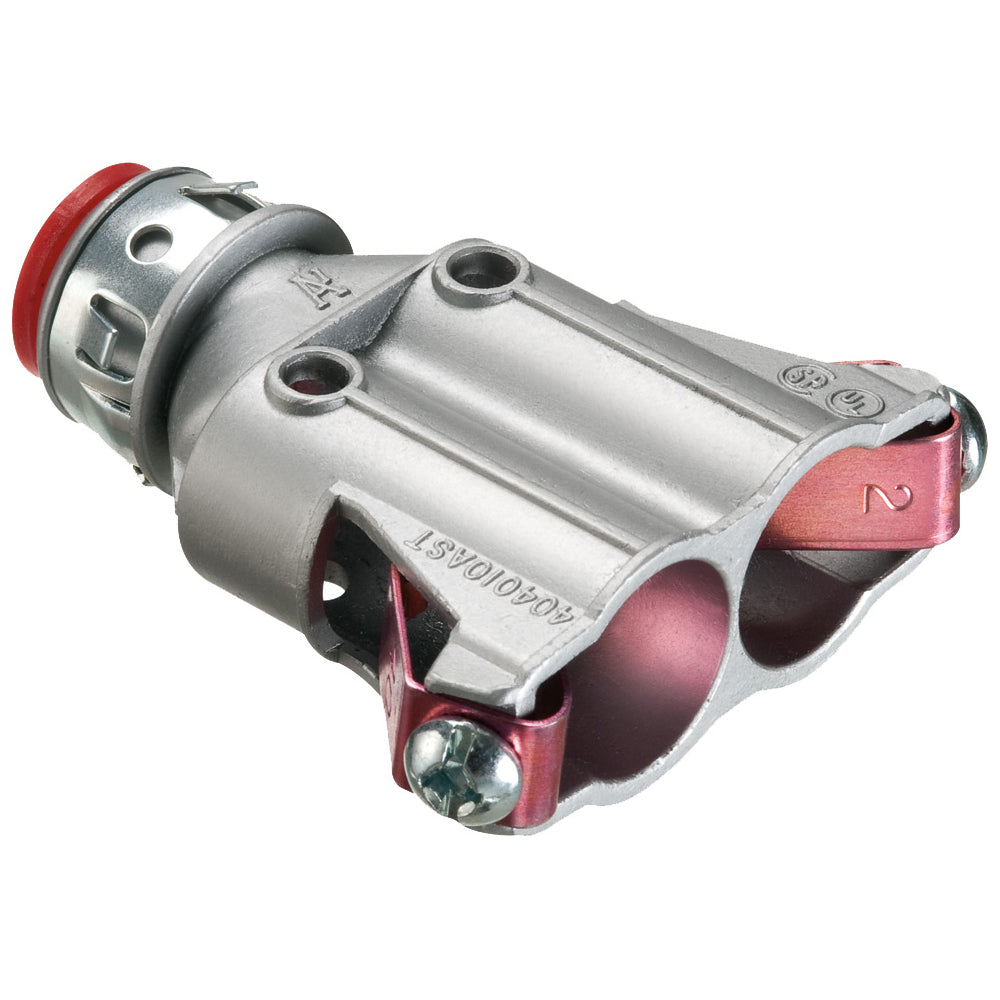

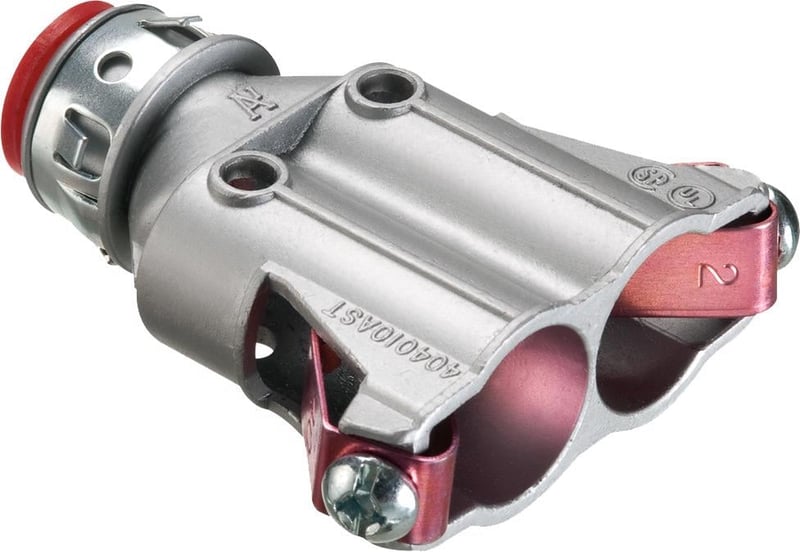

Arlington 505010AST Duplex Cable Connector With Insulated Throat, 1/2 in Trade, 3/4 in Knockout, 0.59 to 0.92 in Diameter

Product Description

The Arlington 505010AST Duplex Cable Connector is designed for easy installation and secure connections in various applications. It features a die-cast zinc construction that ensures durability and a reliable connection. This connector fits trade size one half inch with a three quarter inch knockout and accepts two conductors ranging from zero point fifty-nine to zero point ninety-two inches in diameter.

• Concrete-tight when taped
• Snap-in connector design simplifies installation
• Suitable for use with AC, HCF, and MCI cable types

Product Highlights

Ideal for flexible metal conduit applications, the Arlington 505010AST connector is UL/cULus listed and CSA certified, ensuring compliance with industry standards.

Product Information

Standard Information

• Brand: Arlington
• Part Number: 505010AST

Technical Specifications

• Type: Duplex Connector
• Trade Size: 1/2 inch
• Knockout Size: 3/4 inch
• Cable Openings: 0.59 to 0.92 inches
• Dimensions: 3.054 inches height x 2.717 inches width
• Material: Die Cast Zinc
• Standards: UL Listed, CSA Certified
• Country of Origin: USA
