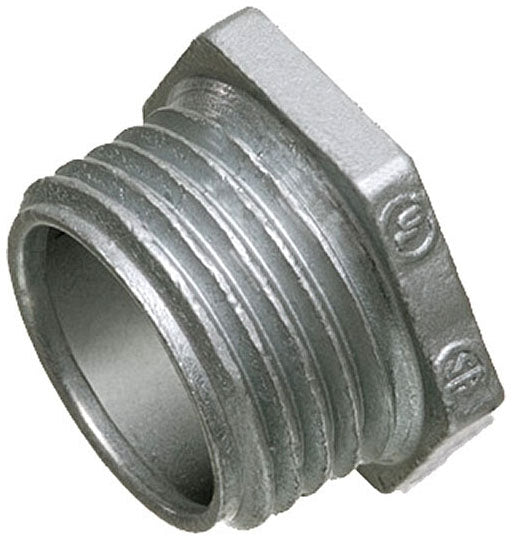

Arlington 505 Bushed Nipple 1-1/2 Inch Die Cast

Product Description

The ARLINGTON 505 is a 1-1/2 inch die-cast bushed nipple used in electrical conduit and enclosure installations. A bushed nipple provides a threaded fitting that connects conduit to junction boxes, panels, or enclosures while protecting wire insulation at the entry point. The die-cast construction offers solid, consistent thread engagement suitable for standard trade installations. Electricians and conduit installers use this fitting where a clean, secure conduit-to-box connection is required.

This bushed nipple is suited for residential and light commercial electrical work where 1-1/2 inch conduit terminations are required. Typical applications include service panel connections, junction box entries, and enclosure knockouts. The built-in bushing eliminates the need for a separate plastic bushing in many standard installations, streamlining the assembly process.

Key Features

• 1-1/2 inch trade size for standard conduit termination applications
• Die-cast construction provides consistent threading and dimensional accuracy
• Integrated bushing protects wire insulation at conduit entry points
• Compact, lightweight design at 0.167 pounds

Compatibility

Designed as an OEM-style replacement and standard-fit fitting for 1-1/2 inch conduit termination points on electrical enclosures, junction boxes, and panel entries.

Installation Notes

Installation is typically performed by a licensed electrician in accordance with NEC requirements for conduit fittings and enclosure entries. De-energize all circuits before working on any panel or enclosure connection. Hand-tighten the nipple into the knockout before applying tool torque to avoid cross-threading the die-cast body. Inspect threads on both the fitting and the enclosure knockout for damage before installation.

Technical Specifications

• Trade Size: 1-1/2 inches
• Construction: Die Cast
• Weight: 0.167 pounds
• UPC: 01899700505

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 505
