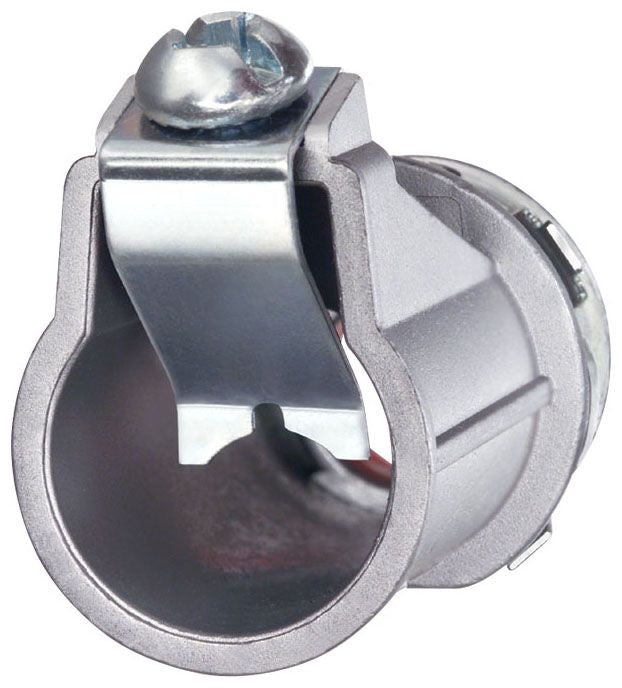

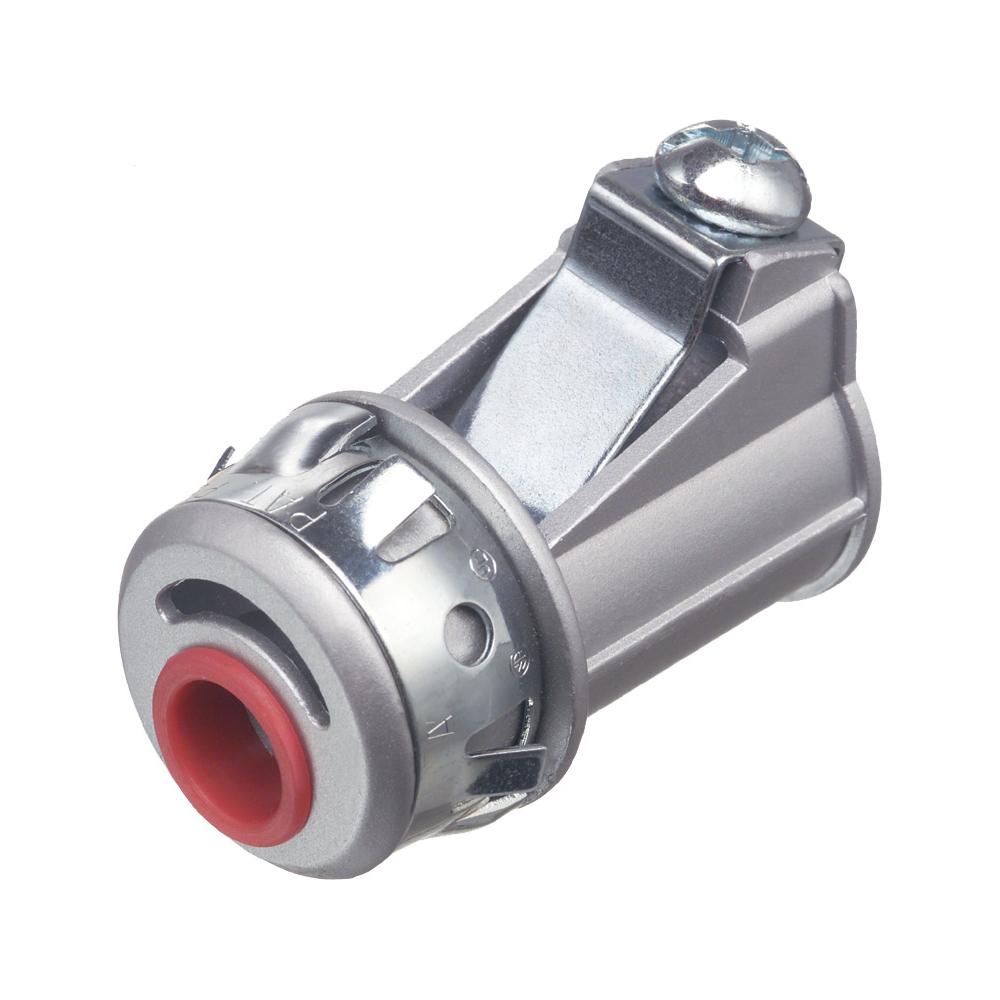

Arlington 5010AST Snap2IT Straight Cable Connector With Insulated Throat 1/2 in Trade

Product Description

The Arlington 5010AST Snap2IT Straight Cable Connector features an insulated throat and is designed for 1/2 in trade size applications. This connector is constructed from die-cast zinc and is suitable for cable openings ranging from 0.56 to 0.85 inches. The Snap2IT design allows for quick installation.

• Snap2IT design for quick installation
• Insulated throat
• 1/2 in trade size

Product Highlights

Die-cast zinc cable connector with insulated throat for armored and metal clad cables, and flexible metal conduits.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 5010AST
• Country of Origin: USA

Technical Specifications

• Trade Size: 1/2 in
• Knockout Size: 1/2 in
• Cable Openings: 0.56 to 0.85 in
• Material: Die Cast Zinc
• UNSPSC: 39121311
• Standard: CULUS and CSA
• Brand Name: Arlington
• Application: For AC - MCI-A - HCF steel and aluminum cable
• Description: ARL 5010AST CBL CONN W/INS THROAT
• Product Name: Armored Cable/Flexible Conduit Connector
• Certifications: PROP65
• Connector Type: Snap
• Stripped Catalog Number: 5010AST
• Catalog Description (MFR): Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly on to the conduit with a removable screw in spring steel clip and then snaps into knockout with external spring steel clip, no tools required. Concrete tight when taped. Comes with Insulated throat.
• Invoice Description (MFR): SNAP 2IT CONN W/INS TH
• Safety Data Sheet (SDS) Flag: Y
• Cable Type: Aluminum/Steel/AC/AC90/ACG90/HCF/MC/MCI-A/MCPCS
