Arlington 4591 5 Insulated Metal Grounding Bushing 150 Degrees C

Product Description

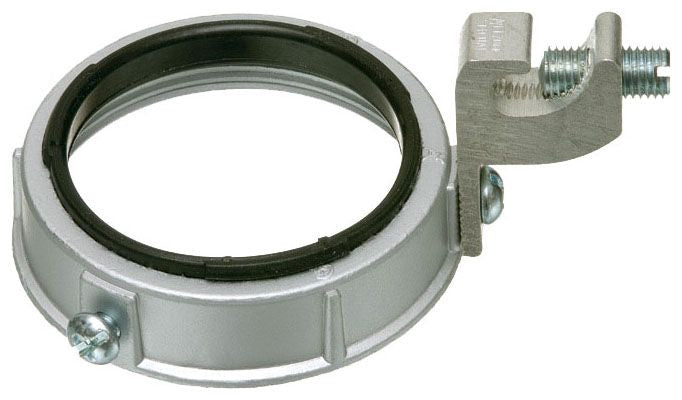

The Arlington 4591 is a 5-inch insulated metal grounding bushing designed for service entrance applications. It features a threaded design suitable for copper and aluminum conductors using a dual-rated C-clamp grounding lug. Constructed from zinc die-cast material, it is rated for a maximum temperature of one hundred fifty degrees Celsius. The bushing accommodates wire sizes ranging from eight gauge to two zero AWG.

• Insulated grounding bushing
• Compatible with 5-inch threaded rigid metal conduit
• Dual-rated for copper and aluminum conductors

Product Highlights

This grounding bushing is engineered for reliable use in electrical systems, ensuring effective grounding and superior performance under various conditions.

Product Information

Standard Information

• Manufacturer: Arlington
• MPN: 4591

Technical Specifications

• Trade Size: 5 inches
• Material: Zinc die-cast
• Wire Size Range: 8 AWG to 2/0 AWG
• Temperature Rating: 150 degrees Celsius
• Standards: UL and CSA certified
• Weight: 0.99 inches thick
• Country of Origin: United States
• Warranty: 1 year against manufacturer defects
