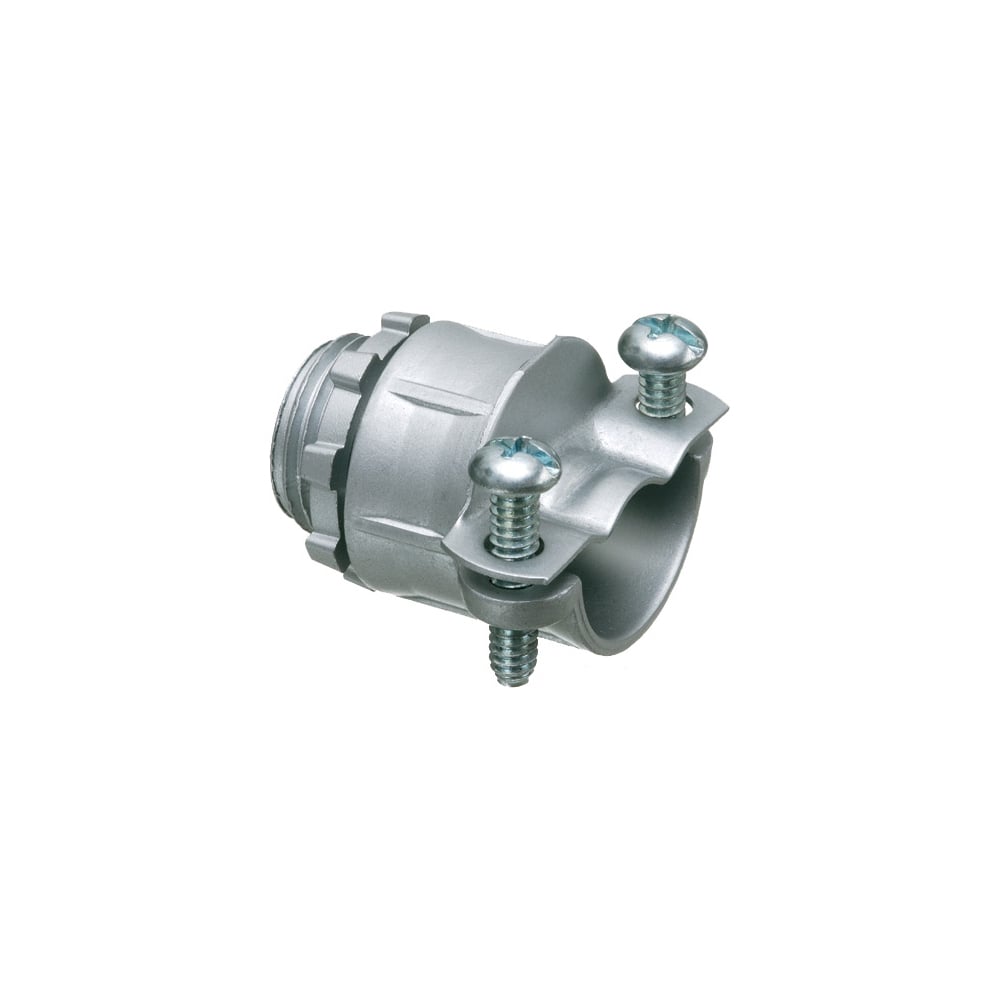

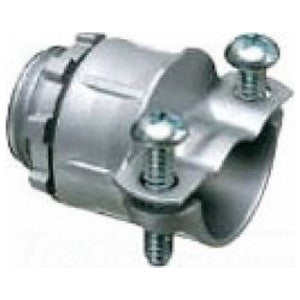

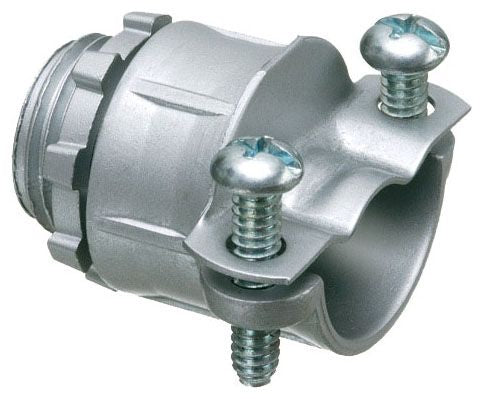

Arlington 4203 Twin Screw Zinc Die-Cast All-Purpose Connector 1 Inch

Product Description

The Arlington 4203 is a twin screw zinc die-cast all-purpose knockout connector. It is designed for use with Flex, AC, MCI, and NM cable. The connection secures into a knockout using a locknut. The cable range is from one inch to one point three six five inches, with an end stop size of zero point nine eight five inches.

• Compatible with Flex, AC, MCI, and NM cable
• Secures into knockout with included locknut
• Constructed from durable die-cast zinc

Product Highlights

This connector is essential for electrical installations. It allows the electrician to create a secure and reliable cable connection, ensuring safety and functionality in various applications.

Product Information

Standard Information

• Catalog Number: 4203
• Manufacturer: Arlington

Technical Specifications

• Type: Coupler
• Material: Zinc
• Conductor Range: 1 to 1.365 inches
• Knockout Size: 1 inch
• Dimensions: 1.726 inches L x 1.605 inches W x 1.605 inches H
• Country of Origin: United States
• Warranty Description: 1 Year Warranty Against Manufacturer Defects
• Standard: UL and CSA Certified
• UPC: 018997042033
