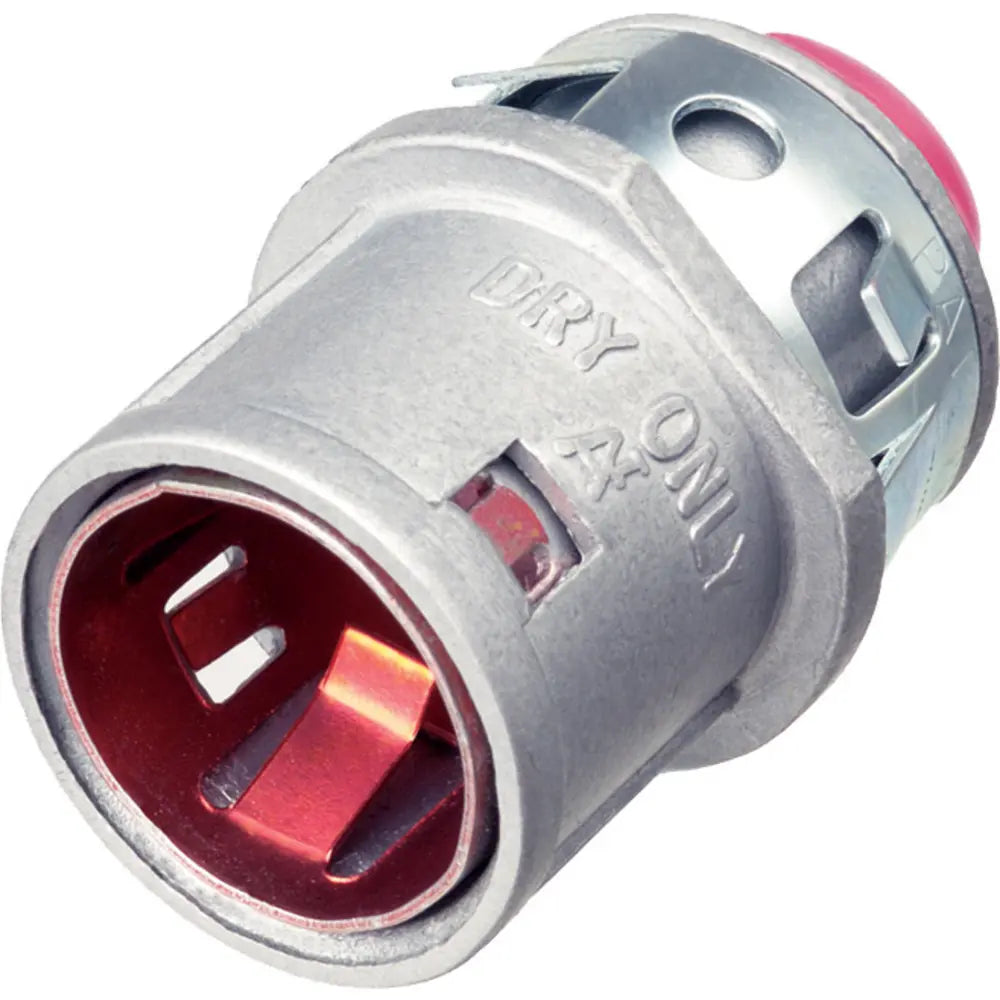

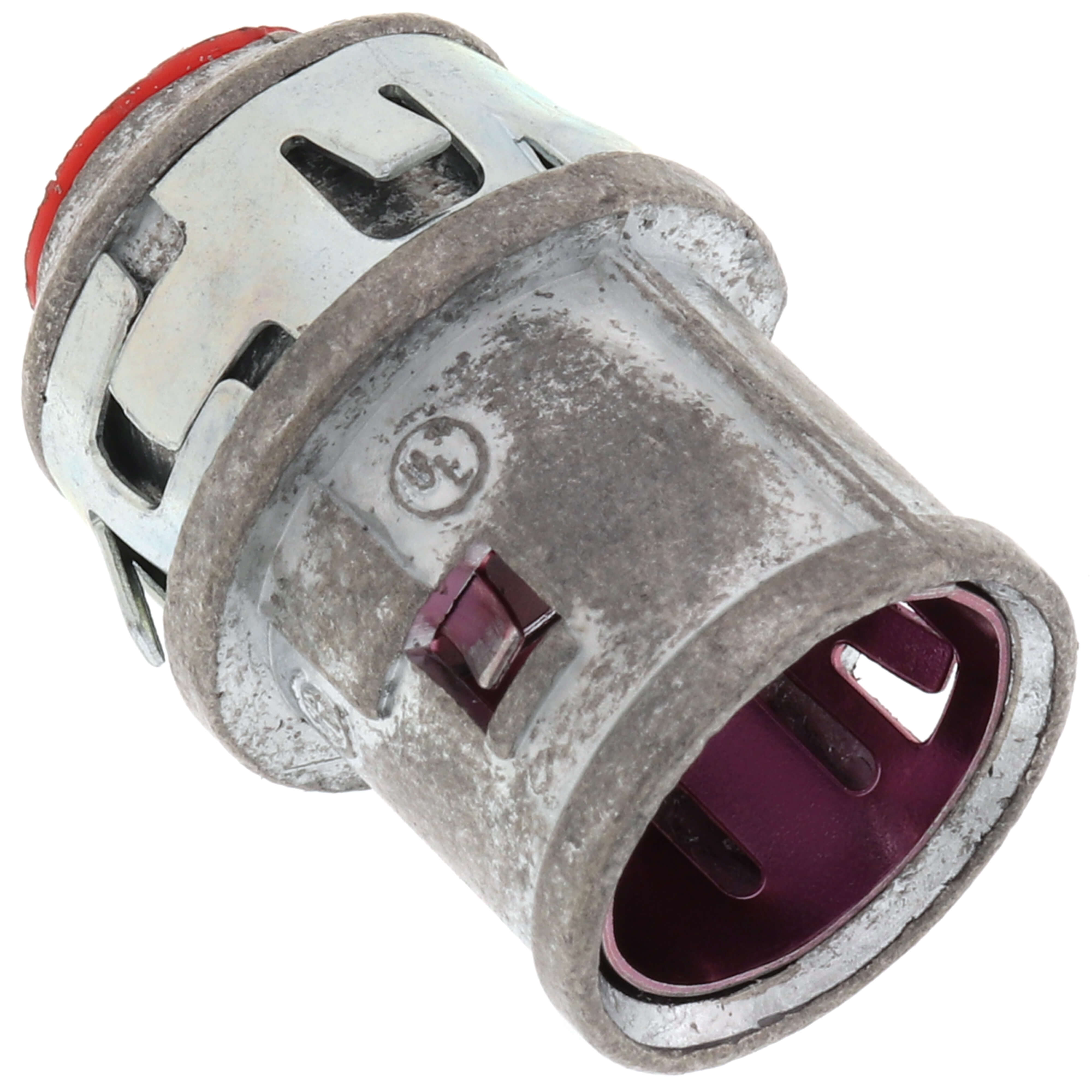

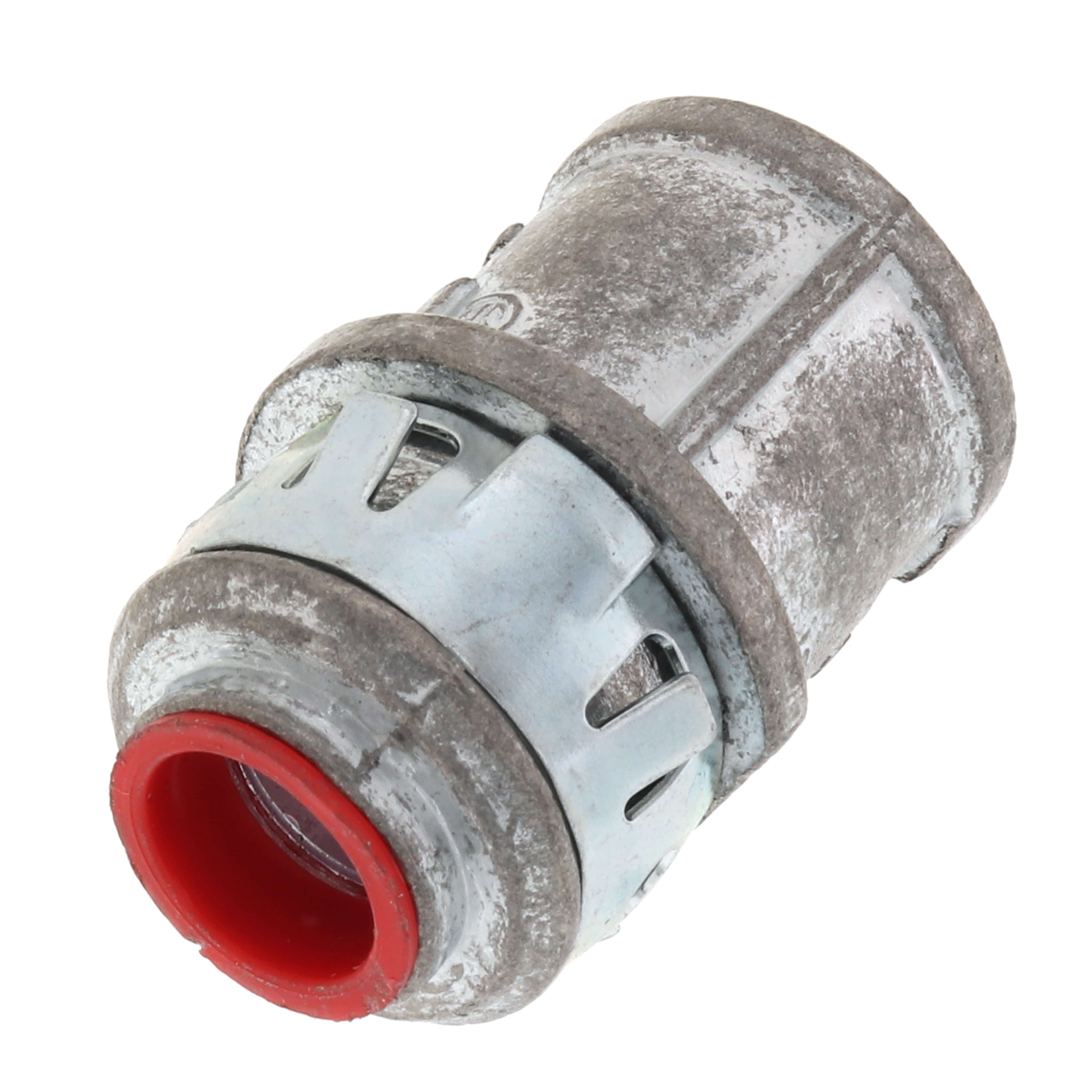

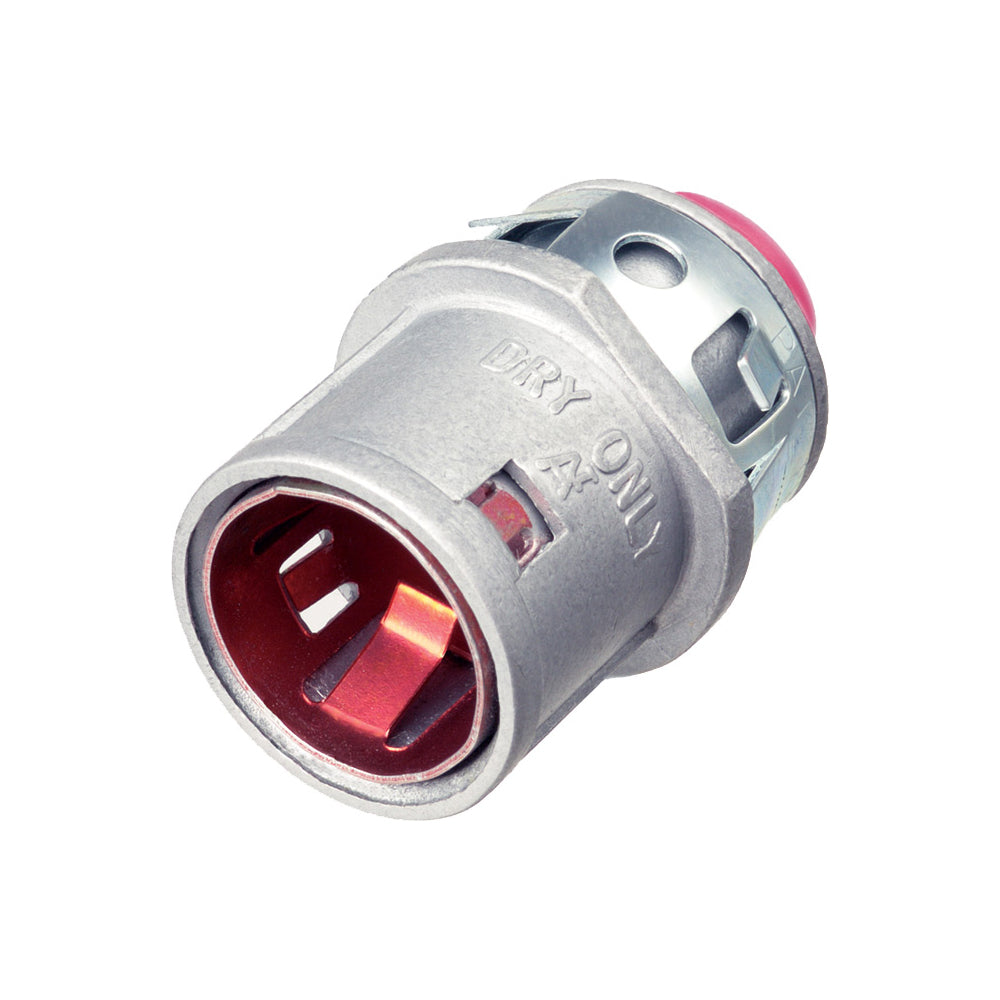

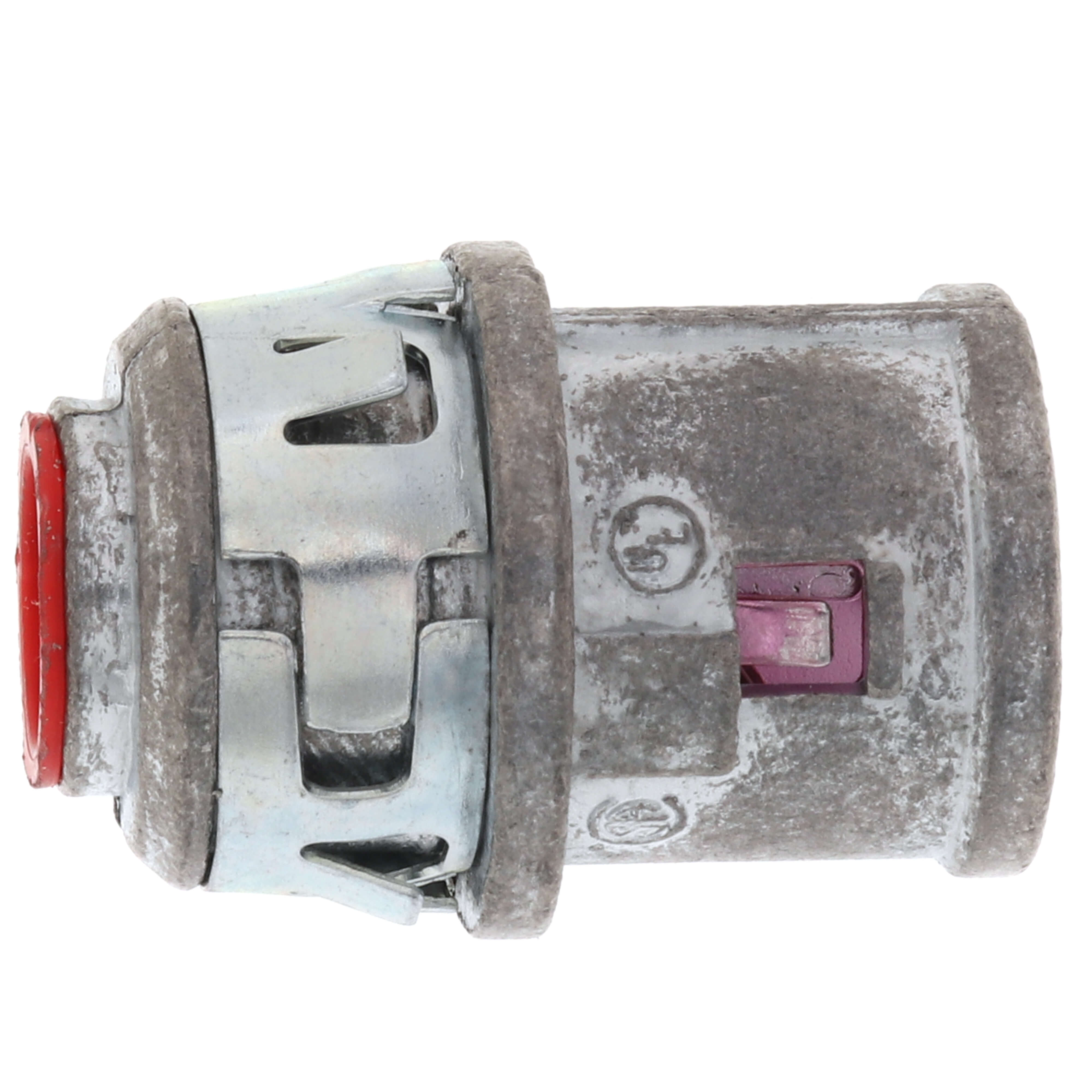

Arlington 40AST 3/8 inches Snap It Connector with Insulated Throat, 1/2 inches Knockout

Product Description

The Arlington 40AST 3/8" SNAP IT Connector is a zinc die-cast, 1/2" knockout MC cable connector that snaps quickly onto the conduit with an internal spring steel clip and then snaps into the knockout with an external spring steel clip, requiring no tools. It is concrete tight when taped and comes with an insulated throat.

• Zinc die-cast construction
• Installs quickly with internal and external spring steel clips
• Insulated throat

Product Highlights

This Arlington snap-in cable connector ensures safe and fast installations of flex, MC, AC, and HCF cable.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 40AST
• Country of Origin: US

Technical Specifications

• Type: AC/MC Connectors
• Material: Zinc
• Mounting: Snap-In
• Standard: cULus
• Insulated: Yes
• Connection: Snap-In
• Trade Size: 3/8-Inch
• MPN: 40AST
• Conduit Size: 3/8 In.
• Cable Opening Min.: .485 In.
• Cable Opening Max.: .612 In.
• Knockout Size: 1/2 In.
• Insulation Type: Polypropylene
• Material of Construction: Zinc Die-Cast
• For Use With: MC/HCF Steel and Aluminum Cable, AC/HCF Steel and Aluminum Cable, Flexible Metal Conduit Steel and Aluminum (Regular and Reduced Wall), MC Cable Continuous Corrugated Aluminum
• Cable Type: Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI/MCI-A
• Connection Type: Snap-On
• Application: AC/MC/HCF/MCI-A/AC90/ACG90/Flex/MC-PCS
• Special Features: Insulated Throat
• Brand: ARLINGTON
• Suitable For: 1/2-Inch knockout, AC, MCI-A, HCF steel/aluminum cable, steel/aluminum flexible metal conduit, MCI cable, continuous corrugated aluminum cable and AC90 cable
• Construction: Die-cast zinc
• Listing: UL/cULus listed and CSA certified
• Sub Brand: SNAP2IT
• Throat Type: Insulated
