Arlington 404010AST Duplex Zinc Die-Cast Connector 3/8 Knockout

Product Description

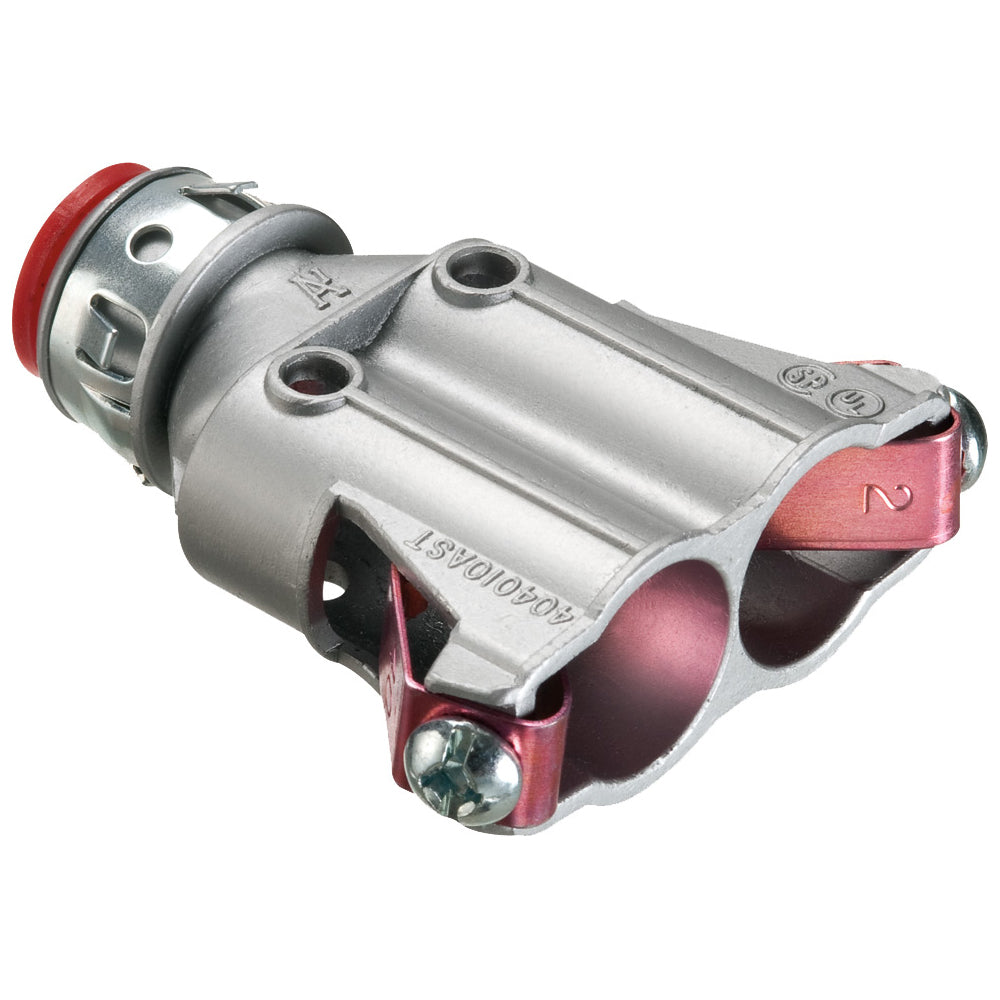

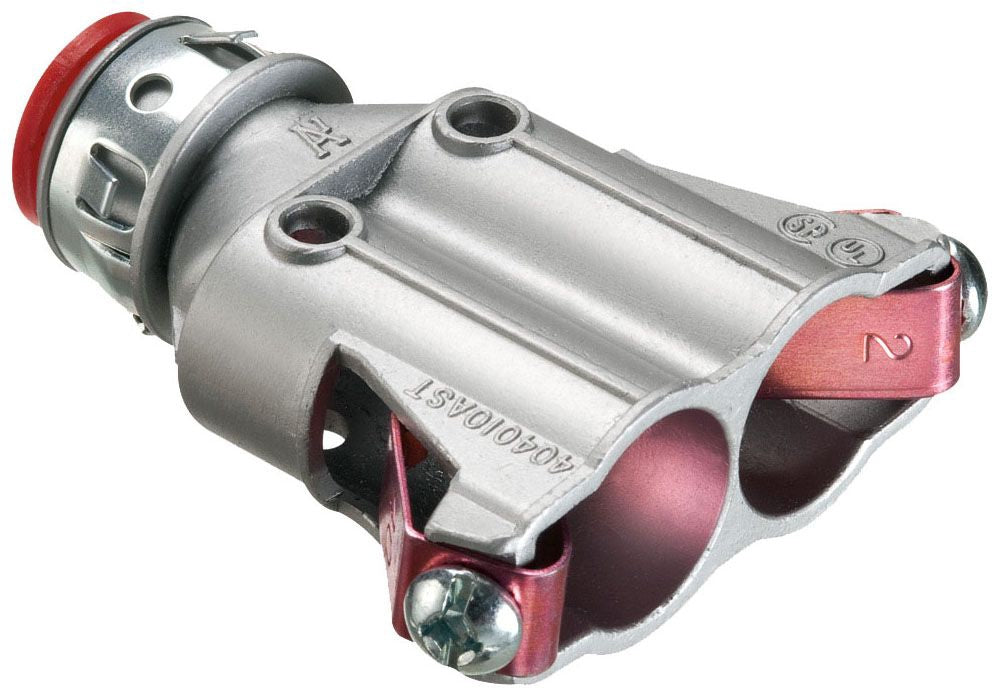

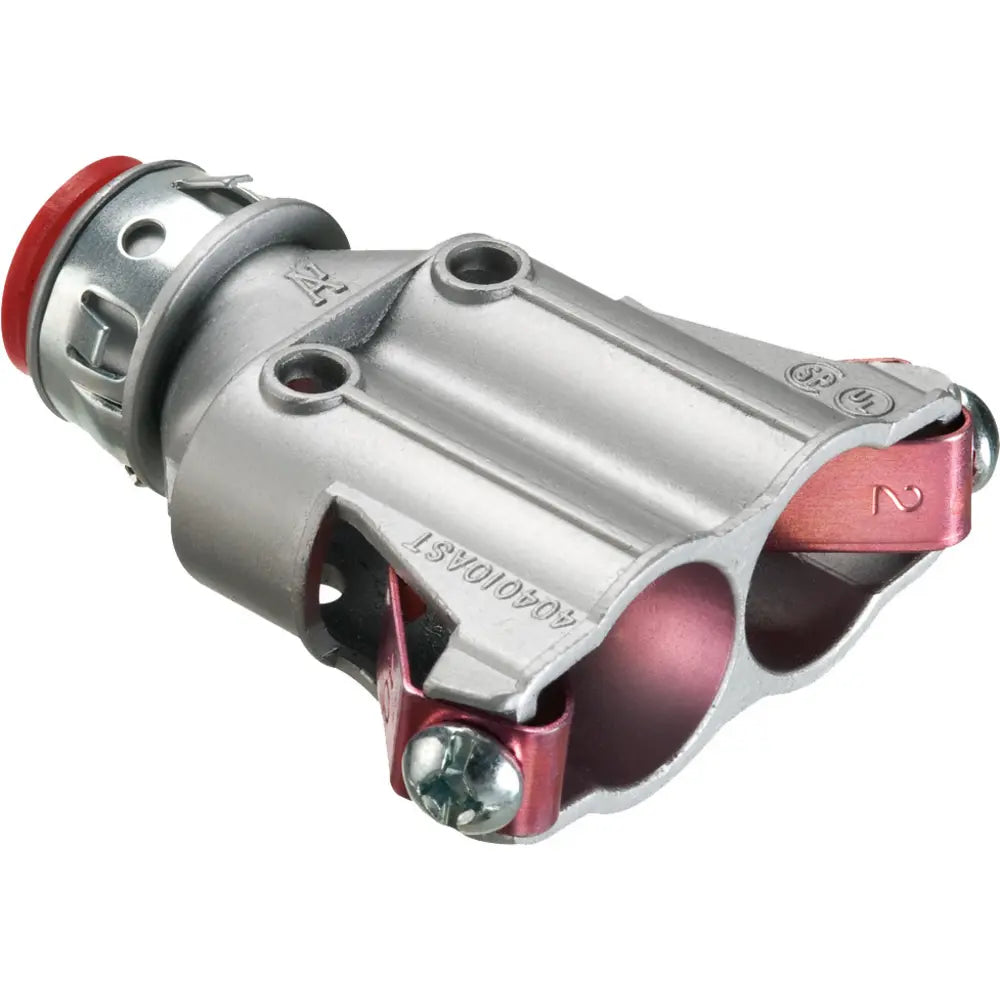

Arlington 404010AST is a duplex zinc die-cast connector designed specifically for MC cable applications. This connector features a trade size of three-eighths inch and a knockout size of half inch. It snaps easily onto conduits using a removable screw-in spring steel clip and snaps into the knockout with an external spring steel clip, requiring no tools for installation. The red tinted internal clip aids in the insertion of conduit and provides a reliable insulated throat.

• Trade size: three-eighths inch
• Easy installation without tools
• Concrete-tight when taped

Product Highlights

This connector is suitable for various cable types, including armored, metal clad, and flexible cables. It is ideal for use in electrical installations where quick and secure connections are needed.

Product Information

Standard Information

• Manufacturer: Arlington
• Materials: Die-cast zinc

Technical Specifications

• Type: Duplex
• Trade Size: 3/8 inch
• Knockout Size: 1/2 inch
• Cable Openings: 0.405 to 0.612 inch
• Number of Conductors: 2
• Dimensions: 2.398 inch height x 2.165 inch width
• Country of Origin: USA
• Standards: UL Listed, CSA Certified
