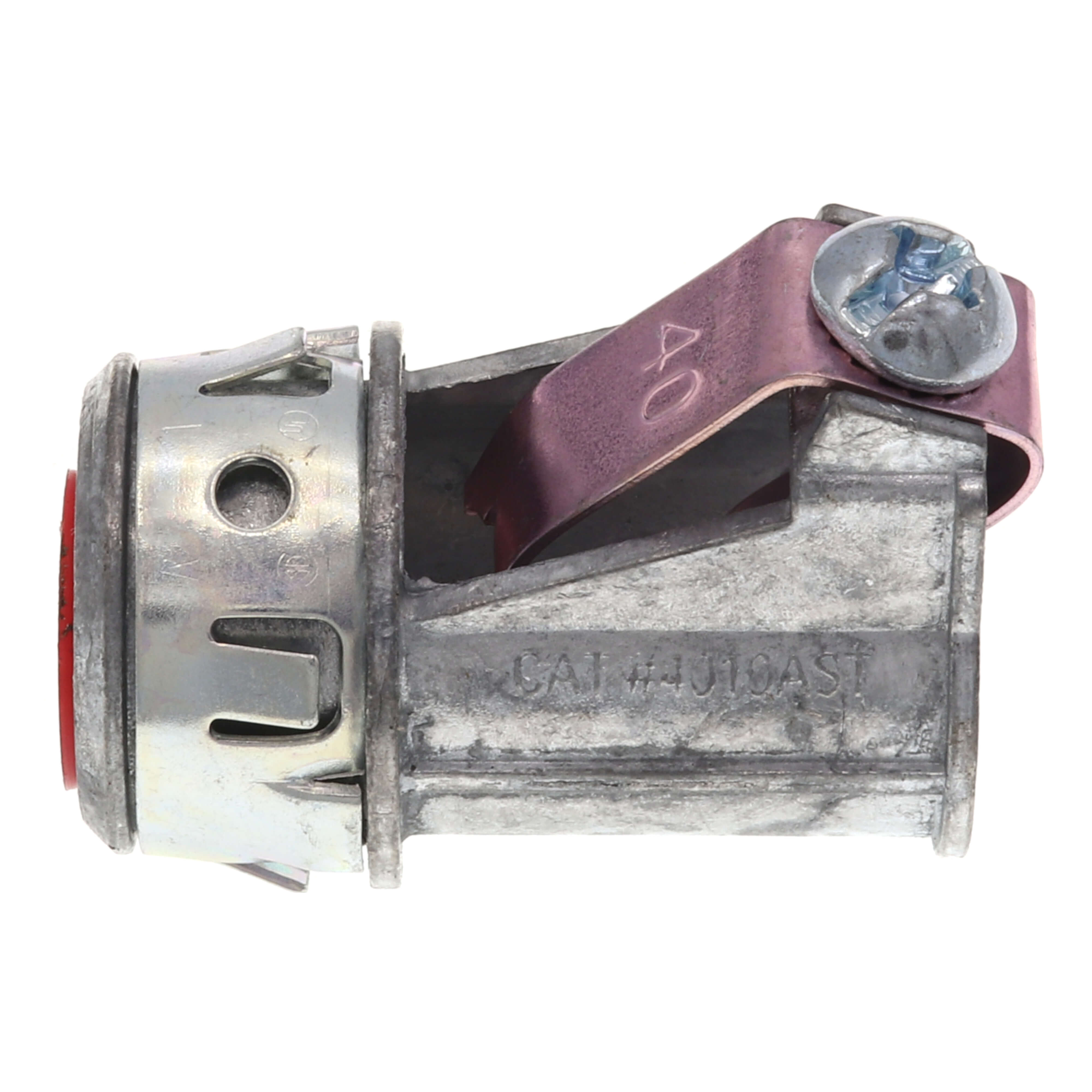

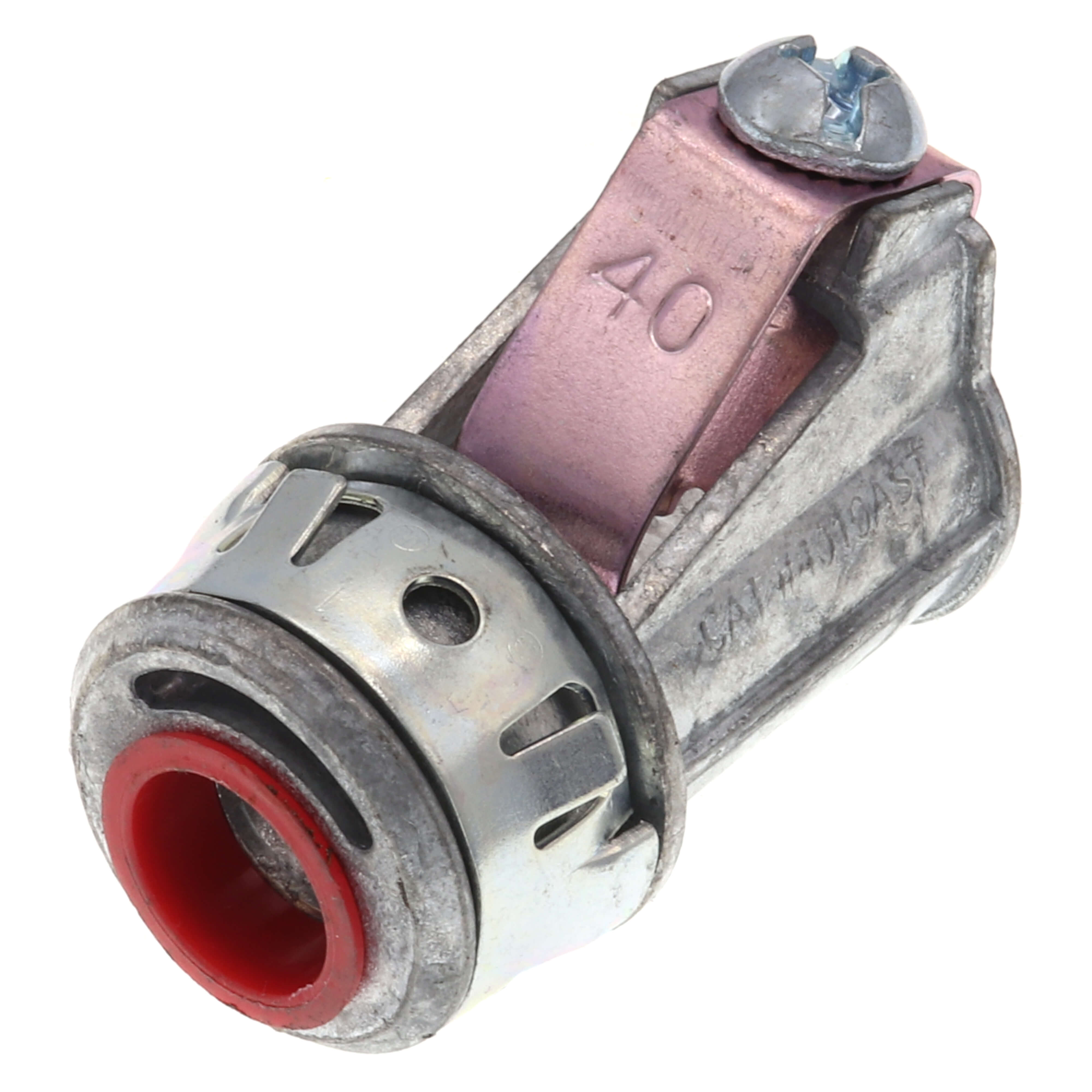

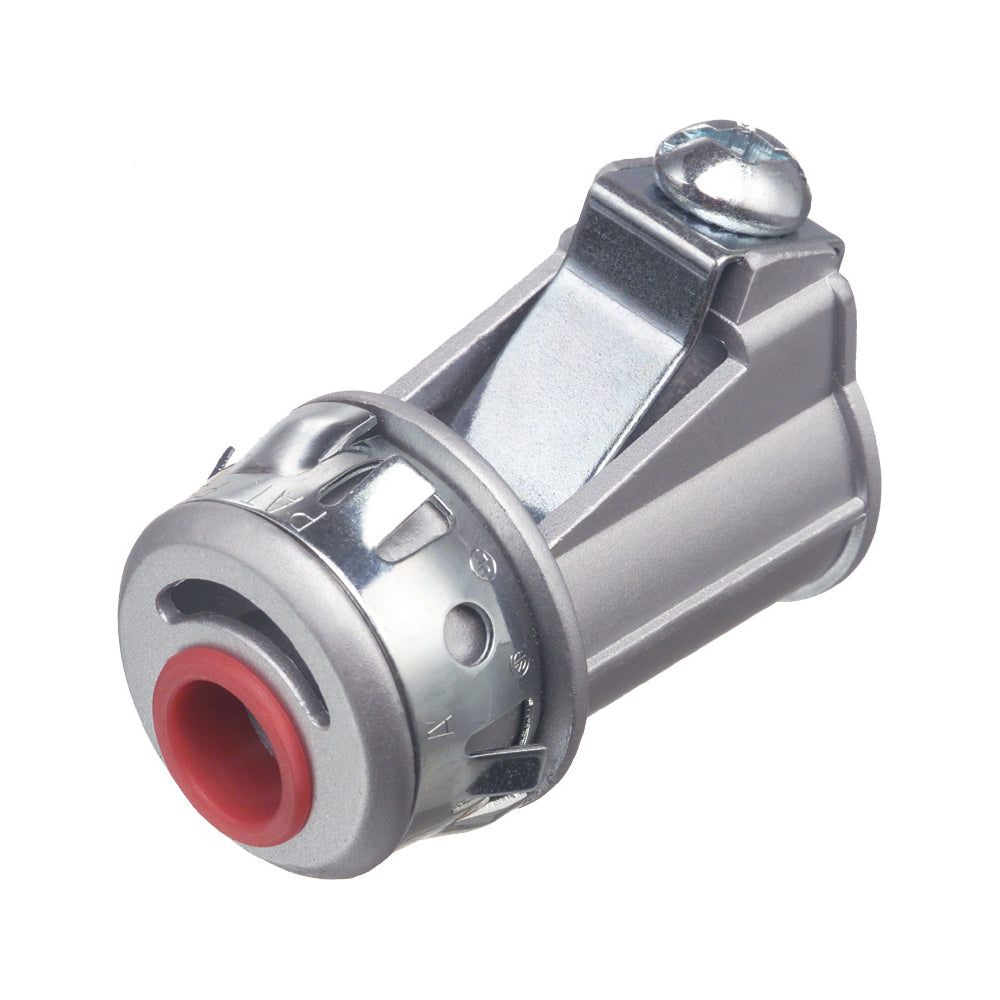

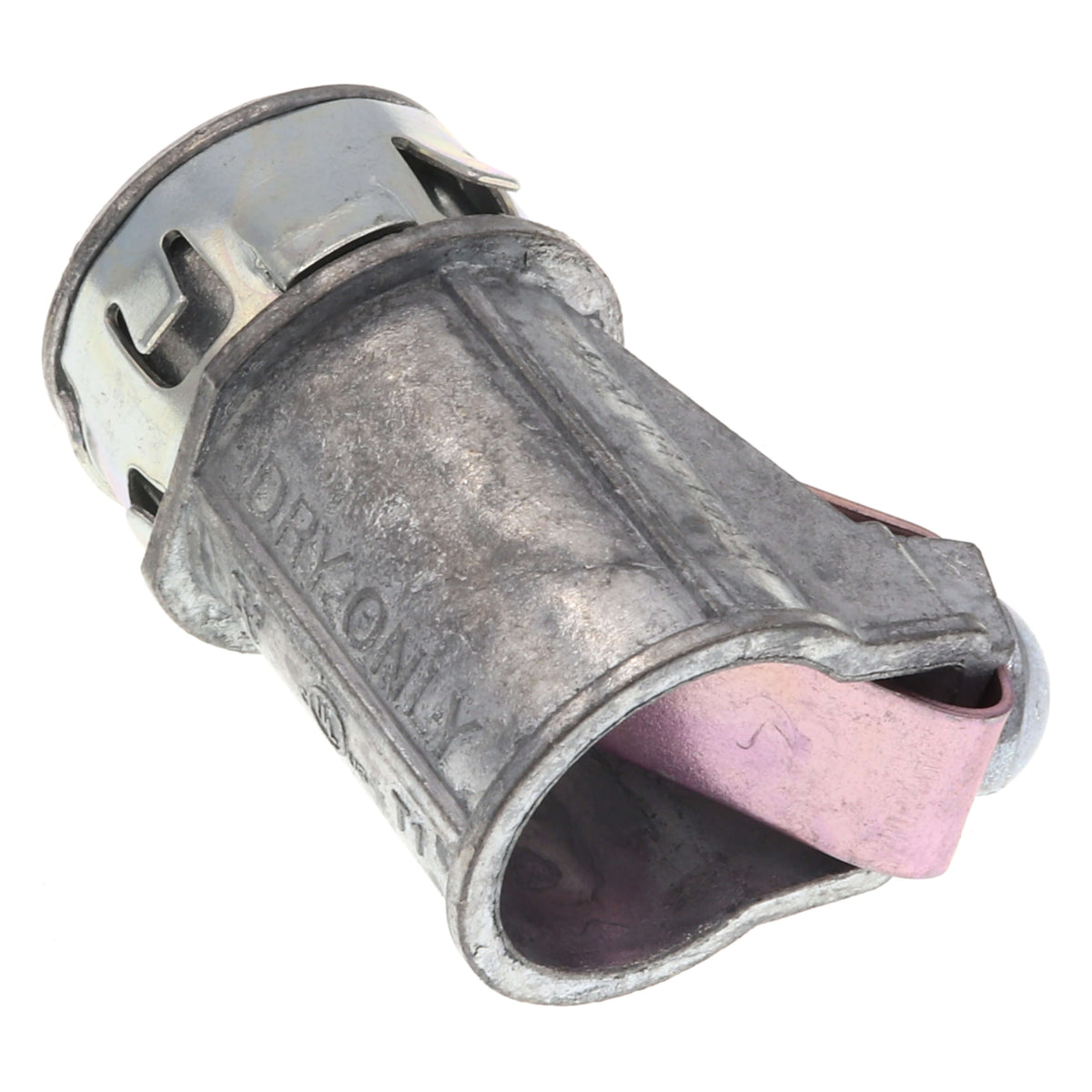

Arlington 4010AST Connector CBL 3/8IN 1/2IN Die Cast Zinc

Product Description

The Arlington 4010AST Snap2IT® cable connector features a 3/8 in trade size and a 1/2 in knockout. It is designed for cable openings from 0.44 to 0.612 inches. This connector is suitable for aluminum, steel, flex, AC, AC90, ACG90, HCF, MC, MCI, MCI-A, and MC-PCS cables.

• Concretetight when taped
• Cable connector snaps quickly on to the conduit with a removable screw-in spring steel clip and then snaps into knockout with external spring steel clip, no tools required
• Widest cable ranges, accommodates cable from 14/2 to 3/3 AWG

Product Highlights

The Arlington 4010AST cable connector offers a secure, tool-free snap-in connection for various cable types, ensuring easy installation and reliable performance.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 4010AST
• Country of Origin: US

Technical Specifications

• Color: Silver
• Cable Type: Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI/MCI-A/MC-PCS
• Manufacturer: ARLINGTON
• Knockout Size: 1/2 in
• Cable Openings: 0.44 to 0.612 in
• Connection Type: Snap-In
• Trade Size: 3/8 in
• Material: Die Cast Zinc
• application: For steel and aluminum flexible conduit
• Suitable For: AC, MCI-A, HCF steel/aluminum cable, flexible steel/aluminum conduit, MCI cable, continuous corrugated aluminum, ACG90, AC90 and new MC-PCS cable
• Construction: Die-cast zinc
• Listing: cULus listed and CSA certified
• Brand: ARLINGTON
• MPN: 4010AST
• Standard: cULus, CSA
• Insulated: Yes
• Fitting Sub-Category: Straight Connectors
• Conduit Size: 3/8 In.
• Cable Opening Min.: 0.405 In.
• Cable Opening Max.: 0.612 In.
• Insulation Type: Polypropylene
• NPT Size: 3/8 In.
• For Use With: MC/HCF Steel and Aluminum Cable, AC/HCF Steel and Aluminum Cable, Flexible Metal Conduit Steel and Aluminum (Regular and Reduced Wall), MC Cable Continuous Corrugated Aluminum
• Material of Construction: Zinc Die-Cast
• Package Quantity: 1
• Connection: Snap-In
• Country of Origin: US
• Model / MPN: 4010AST
• Standards/Approvals: CSA File No. LR49636|cULus 372D|UL Listed
• Sub Brand: SNAP2IT
• Item Name: Connector With Insulated Throat
• UNSPSC: 39131706
• GTIN: 00018997403551
• UPC: 01899740355
• Manufacturer Name: Arlington
• Manufacturer Part Number: 4010AST
• Type: AC/MC Connectors
• Finish: Silver
• Application: AC/MC/HCF/MCI-A/AC90/ACG90/Flex/MC-PCS
• Box Quantity: 50
• Product Name: Armored Cable/Flexible Conduit Connector
• Connector Type: Snap
• Special Features: Insulated Throat
• Stripped Catalog Number: 4010AST
• Catalog Description (MFR): Zinc die-cast, 1/2" Knockout MC cable connector snaps quickly on to the conduit with a removable screw in spring steel clip and then snaps into knockout with external spring steel clip, no tools required. Concrete tight when taped. Red tinted internal clip indicates easier insertion of conduit
• Invoice Description (MFR): SNAP 2 IT CONNECTOR 40
• Safety Data Sheet (SDS) Flag: Y
• Buy American Act (BAA) Compliant: C
• Concatenated Invoice Description: SNAP 2 IT CONNECTOR 40
• American Recovery and Reinvestment Act (ARRA) Compliant: C
• Description: ARL 4010AST SNAP-IN CONN
• Cord Size: 0.405 to 0.612 Inch
• Installation: Snap-In
• Throat Type: Insulated
• Standard Package: 500
• Approval: UL (Canada and US), CSA
• Cable Opening: Single
• Cable/Conduit Type: Armored Cable/Flex Metal Conduit/Metal Clad Cable
• Accommodates a cable range: 0.405 - 0.612
• Cable Range: 0.405 - 0.612
• Knockout Size(s): 1/2"
• Material(s): Zinc
• ECCN: EAR99
• Color Family: Metallic
