Product Description

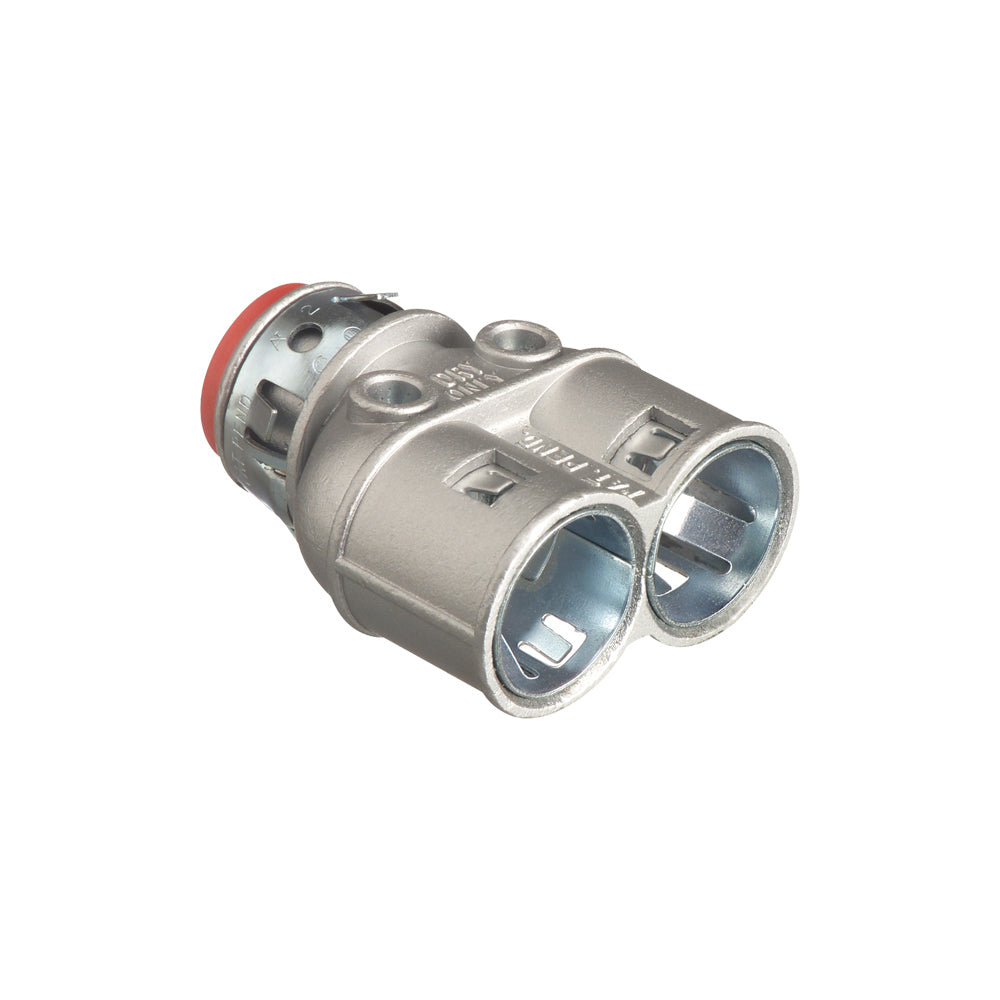

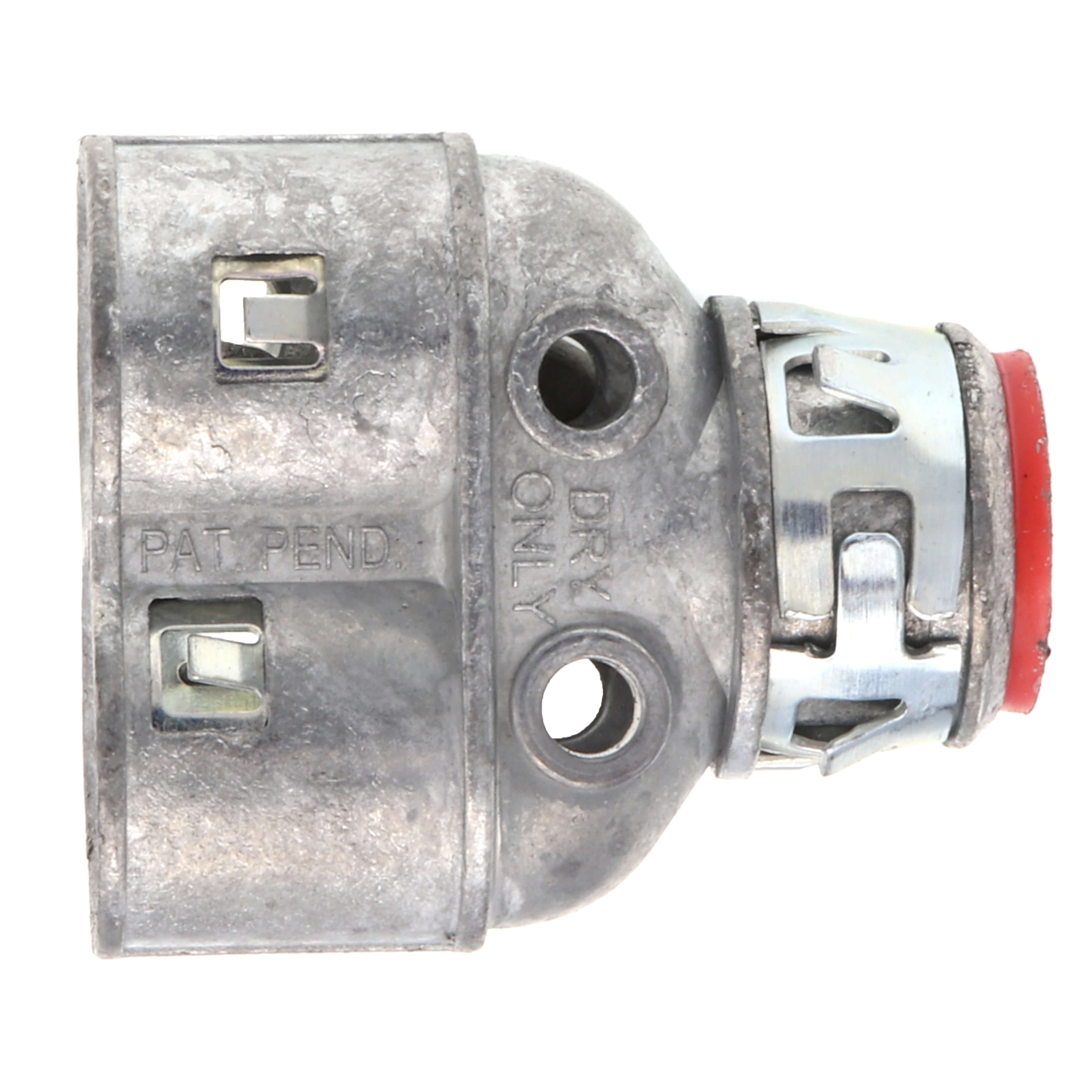

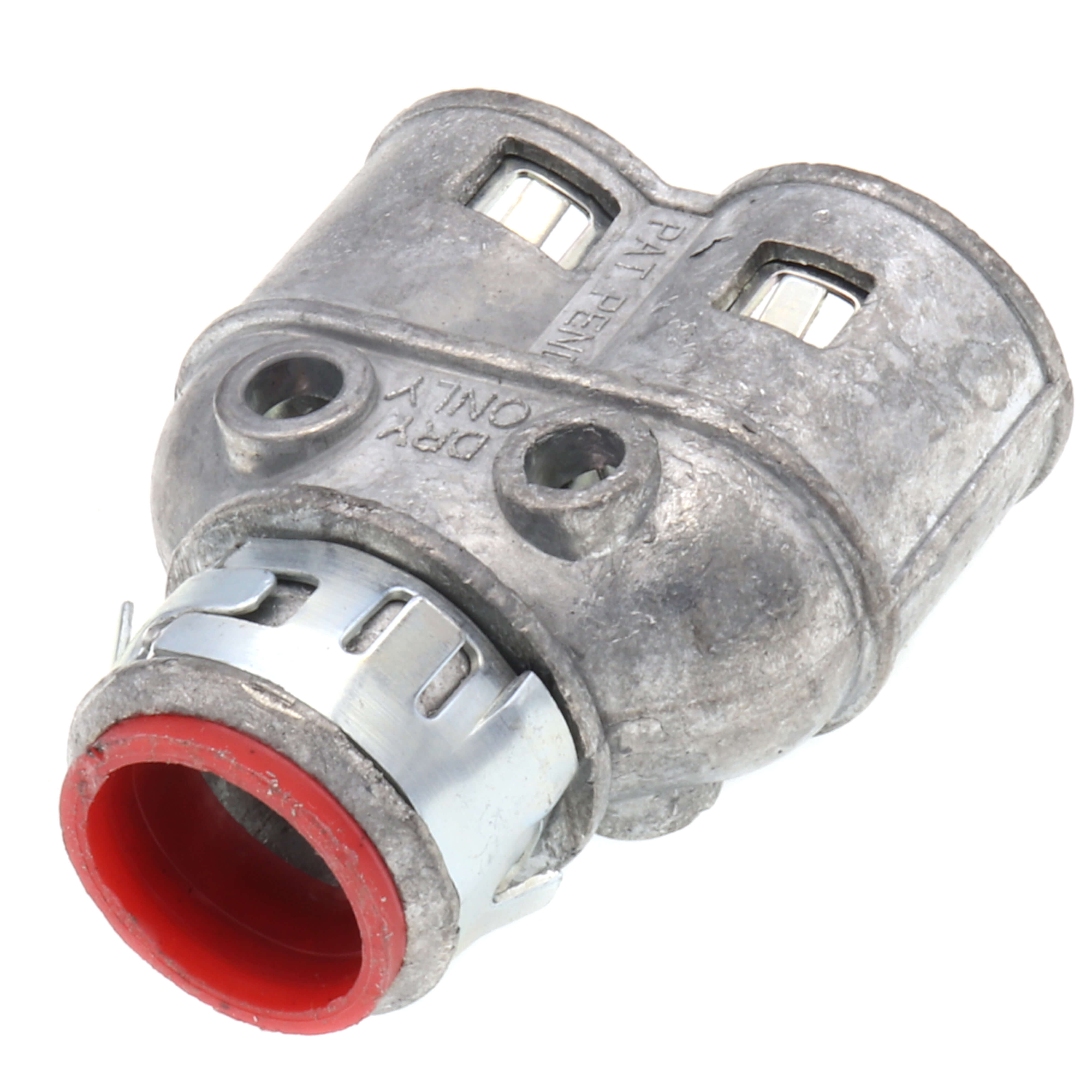

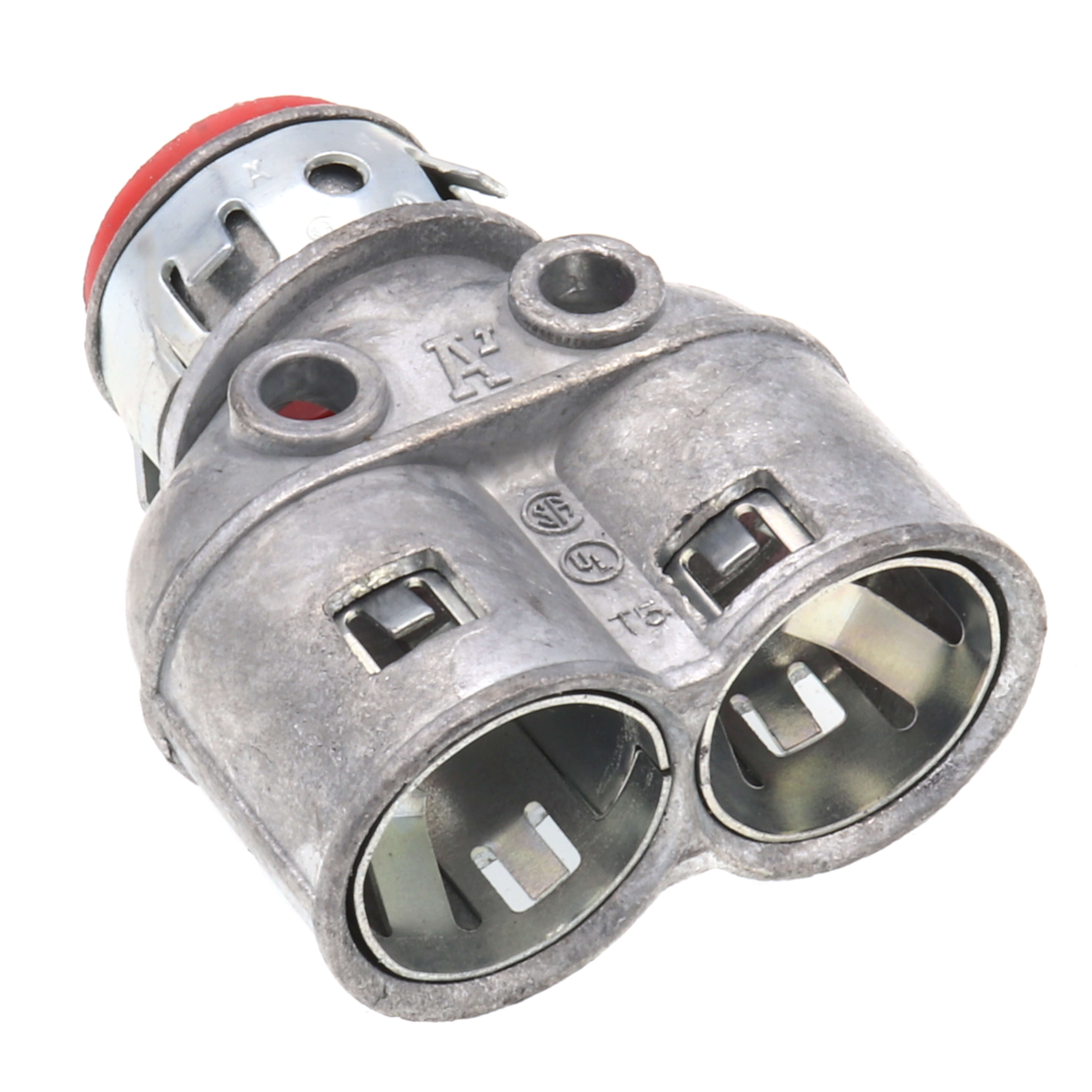

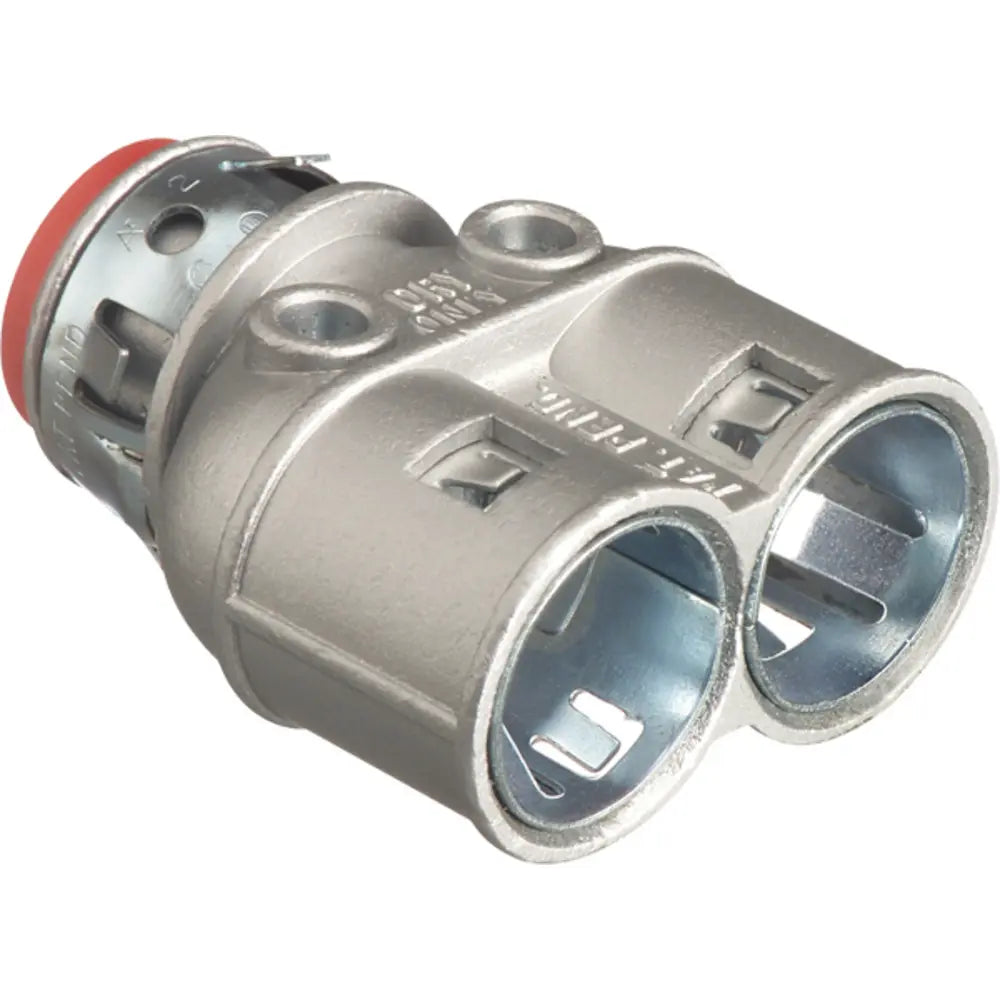

The Arlington 3838AST SNAP2IT Duplex Connector is designed for safe and rapid installations of flex, MC, AC, and HCF cables. This 3/8-inch trade size connector fits into a 1/2-inch knockout and accommodates cable openings from 0.405 to 0.612 inches. Constructed from die-cast zinc, it ensures durability and reliability.
- Installs quickly onto conduit with a snap-in connection; no tools required
- Suitable for Aluminum/Steel/Flex/AC/AC90/HCF/MC/MCI-A cables
- Features an insulated throat and is concrete-tight when taped
Product Highlights
This duplex connector saves time with its tool-free installation and wide cable range compatibility.
Product Information
Standard Information
-
Brand: ARLINGTON
-
Manufacturer Part Number: 3838AST
-
Country of Origin: US
Technical Specifications
-
Item Model Number: 3838AST
-
Material: Die Cast Zinc
-
Cable Type: Aluminum/Steel/Flex/AC/AC90/HCF/MC/MCI-A
-
Trade Size: 3/8 in
-
Knockout Size: 1/2 In.
-
Cable Openings: 0.405 to 0.612 in
-
Connection Type: Snap-In
-
Number of Conductors: 2
-
Conduit Size: 3/8 In.
-
Cable Opening Min.: (2) .405 In.
-
Cable Opening Max.: (2) .612 In.
-
Insulated: Yes
-
Insulation Type: Polypropylene
-
Npt Size: 3/8 In.
-
Material Of Construction: Zinc Die-Cast
-
For Use With: Mc/Hcf Steel And Aluminum Cable, Ac/Hcf Steel And Aluminum Cable, Flexible Metal Conduit Steel And Aluminum (Regular and Reduced Wall), Mc Cable Corrugated Aluminum
-
Standards: Ul Listed File No. E 18304, Csa File No. Lr49636 Rohs Compliance
-
Application: For steel and aluminum flexible conduit
-
Standards/Approvals: CSA File No. LR49636|cULus 372D|UL Listed
-
Type: AC/MC Duplex Connectors
-
Construction: Die-cast
-
Special Features: Insulated Throat Duplex Connector
-
Sub Brand: SNAP2IT
-
Certifications: PROP65
-
Cord Size: 0.405 to 0.612 Inch
-
Installation: Push-In
-
Throat Type: Insulated
-
Approval: UL (Canada and US), CSA
-
Fitting Type: Connector
-
Conductor Range: (2) 0.405 - 0.612 Inch
-
Item Name: Straight Duplex Connector
-
Manufacturer Name: Arlington
-
Manufacturer Part Number: 3838AST
