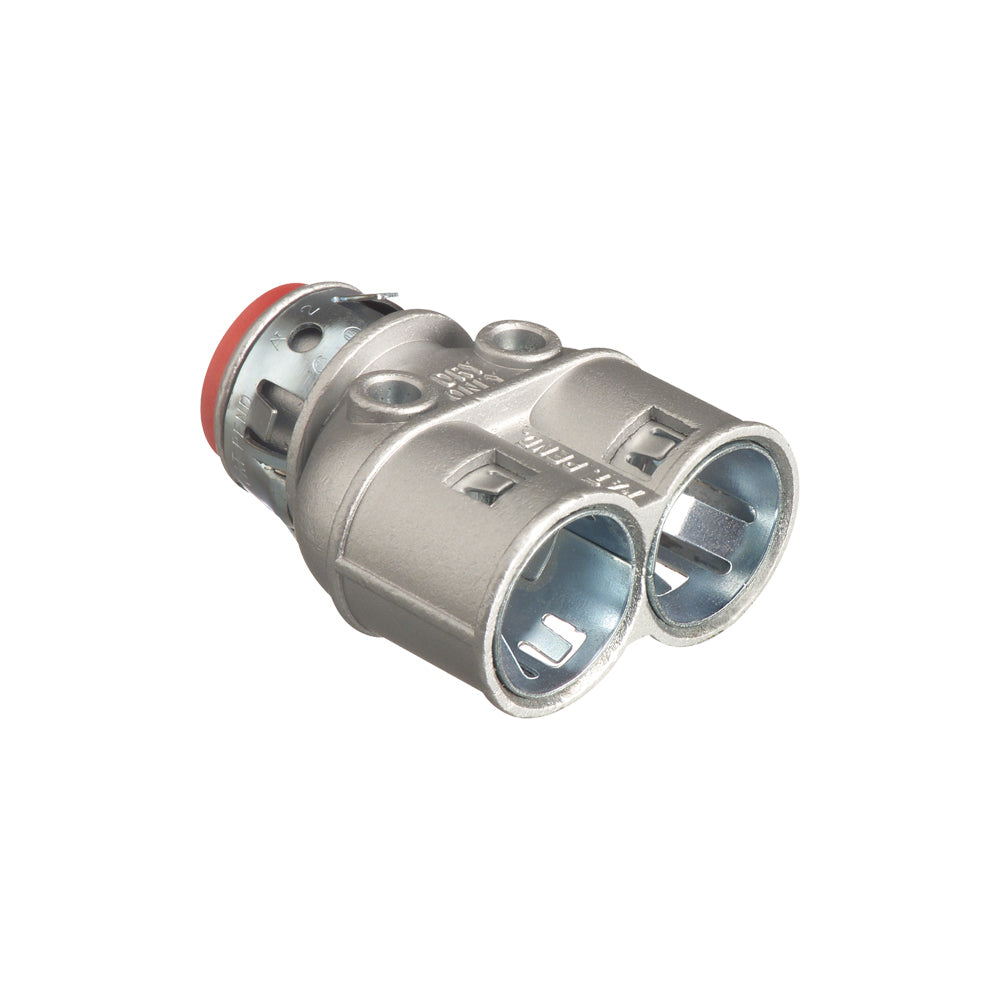

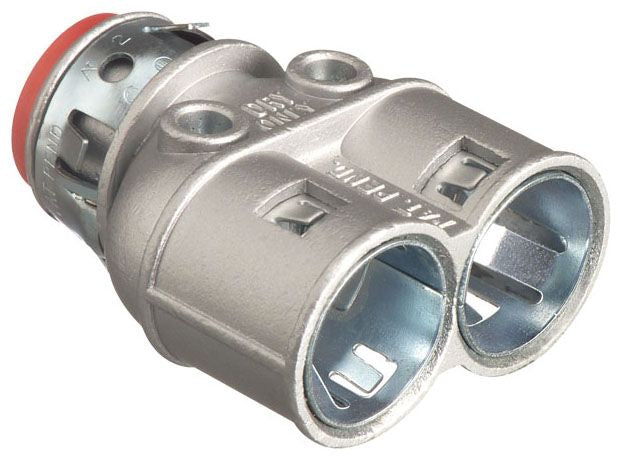

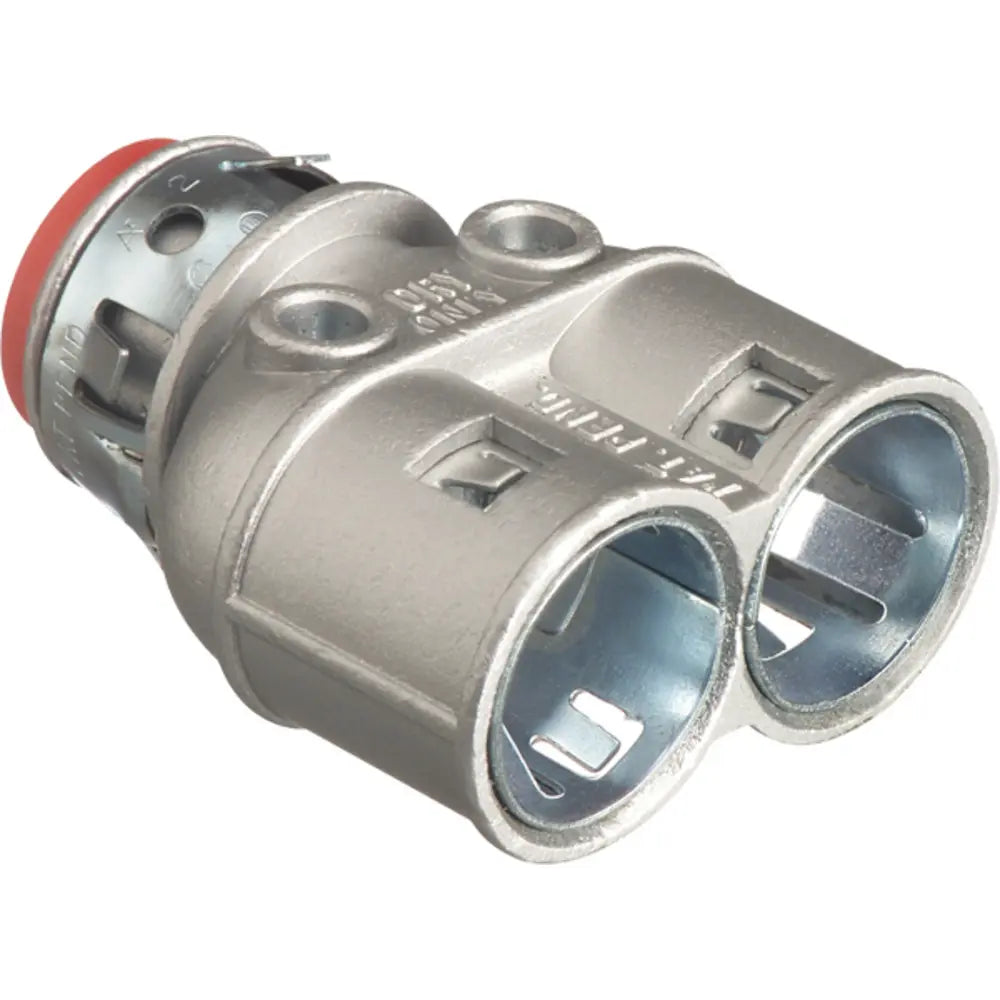

Arlington 3838AST 3/8 Snap2It Duplex Connector With Insulated Throat

Product Description

The Arlington 3838AST is a duplex zinc die-cast connector designed for quick installation on conduit. It attaches with an internal spring steel clip and locks into knockout with an external spring steel clip. This connector is suitable for 3/8 inch trade sizes and accommodates cable openings ranging from 0.405 to 0.612 inches.

• Tool-less installation for quick setup.
• Concrete-tight when taped for reliable performance.
• Insulated throat for added safety.

Product Highlights

Ideal for installations involving steel and aluminum flexible conduits. The connector supports connections of various cable types including AC, MC, and HCF. Its durable construction and easy snap-in design streamline the installation process.

Product Information

Standard Information

• Type: Duplex Straight Connector
• Material: Die-Cast Zinc

Technical Specifications

• Trade Size: 3/8 inch
• Knockout Size: 1/2 inch
• Cable Openings: 0.405 to 0.612 inches
• Dimensions: 2.154 inches height x 1.738 inches width
• Connection Type: Snap-In
• Country of Origin: US
• Number of Conductors: 2
