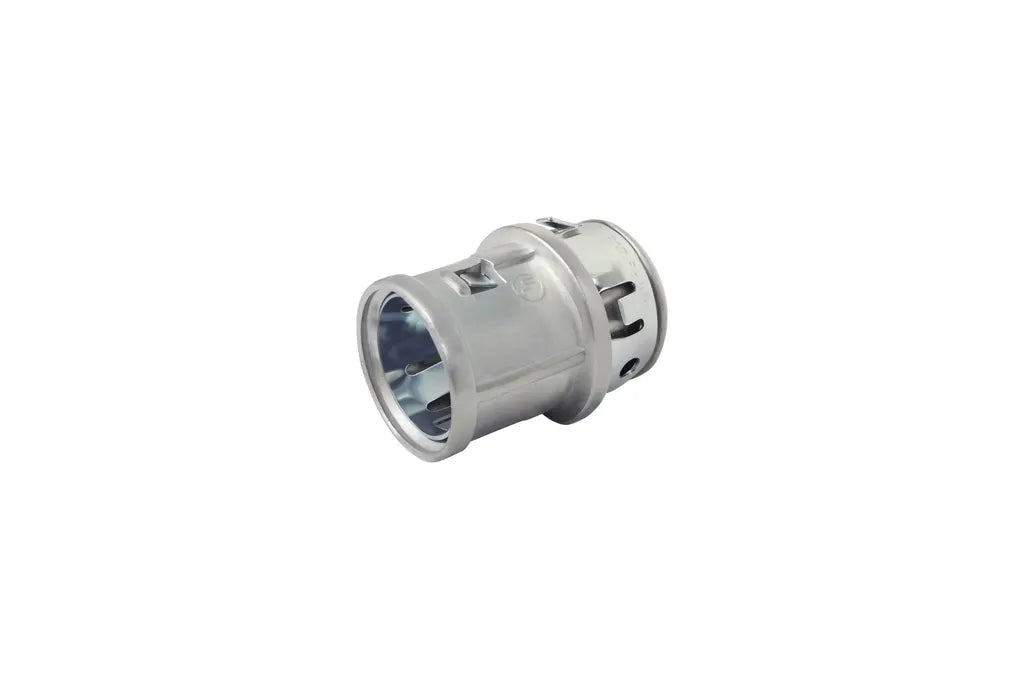

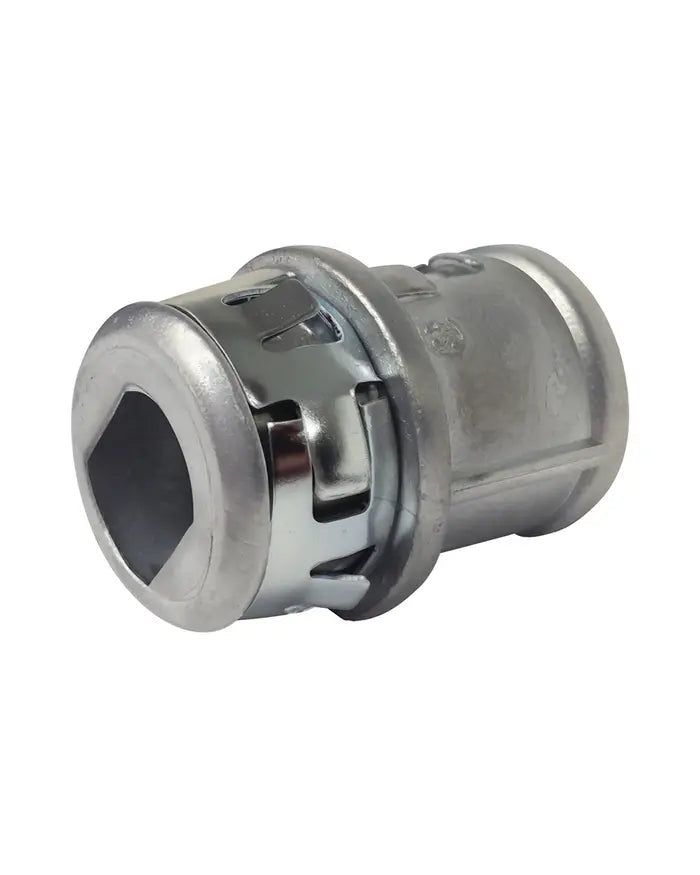

Arlington 380ST Snap2IT 1/2 inches Knockout MC Cable Connector

Product Description

The Arlington 380ST is a zinc die-cast, 1/2" knockout MC cable connector that snaps quickly onto the conduit with an internal spring steel clip and then snaps into the knockout with an external spring steel clip. No tools are required for installation. It is concrete tight when taped and features a rectangular end stop.

• Zinc die-cast construction for durability
• Quick snap-on installation, no tools needed
• Concrete tight when taped

Product Highlights

Arlington's 380ST connector provides a fast and secure snap-on installation for AC/MC/Flex conduit, eliminating the need for tools.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 380ST
• Country of Origin: United States

Technical Specifications

• ADI Part Number: 9N-380ST
• Brand Name: Arlington Industries
• Manufacturer Part Number: 380ST
• Product Name: SNAP IT Connectors
• Product Type: Connector
• Material: Zinc
• Height: 1.28"
• Width: 0.85"
• UPC: 018997003812
• Country of Origin: United States
• Listing: cULus CSA
• Cable Range: 0.405 - 0.612
• Knockout Size(s): 1/2"
• Trade Size: 3/8"
• Certificate: cUL/UL Listed, CSA US
• Type: AC, MC and Flex Conduit Connector
• Cable Openings: Single
• Installation: Snap-In-KO, Snap-In-Cable
• Throat: Non-Insulated
• Angle: Straight
• OD Min: 0.41 in.
• OD Max: 0.61 in.
• Diameter: 1-in
