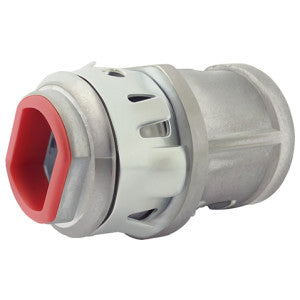

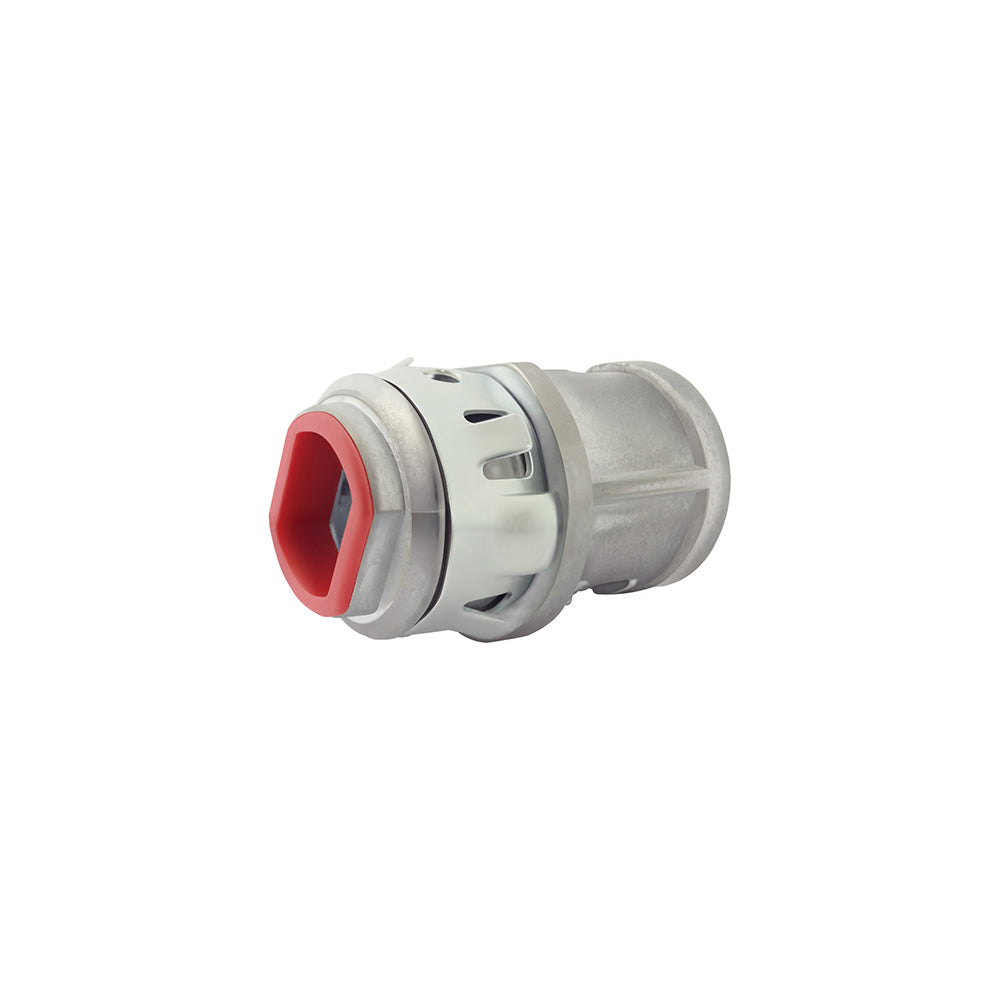

Arlington 380AST 3/8 inches SNAP IT Connector with Insulated Throat, 1/2 inches Knockout, Rectangular End

Product Description

The Arlington 380AST 3/8" SNAP IT Connector is a zinc die-cast, 1/2" Knockout MC cable connector that snaps quickly onto the conduit with an internal spring steel clip and then snaps into the knockout with an external spring steel clip; no tools are required. It is concrete tight when taped and has a rectangular end stop with an insulated throat.

• Zinc die-cast construction
• 1/2" Knockout MC cable connector
• Snaps quickly onto conduit with internal spring steel clip

Product Highlights

This Arlington Snap It connector features a rectangular end stop and insulated throat. It is designed for fast, secure snap-on installation with no tools required.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 380AST
• Country of Origin: US

Technical Specifications

• Type: AC/MC Connectors
• Width: 0.85 Inches
• Height: 1.41 Inches
• Material: Zinc
• Standard: cULus Listed
• Insulated: Yes
• Connection: Snap-In
• Country of Origin: US
• MPN: 380AST
• Brand: ARLINGTON
• Size: L(1.410) x W(0.850) x H(0.850) IN
• Finish: Silver
• Sub Brand: SNAP2IT
• Trade Size: 3/8 in
• Application: AC/MC/HCF/MCI-A/AC90/ACG90/Flex steel and aluminum
• Construction: Die-cast
• Manufacturer: ARLINGTON
• Special Features: Insulated Throat
• Cable Range: 0.405 - 0.612
• Knockout Size(s): 1/2"
• Certificate: cUL/UL Listed, CSA US
• Diameter: 1-in
• Knockout Size: 1/2 in
• Cable Openings: 0.405 to 0.612 in
• Cable Type: Aluminum/Steel/Flex/AC/AC90/ACG90/HCF/MC/MCI/MCI-A
• Dimensions: 1.41 in H x 0.85 in W
• Connection Type: Snap-On With Insulated Throat
• Use With: AC/MCI-A/HCF/FMC/MCI/AC90
• Throat Type: Insulated
