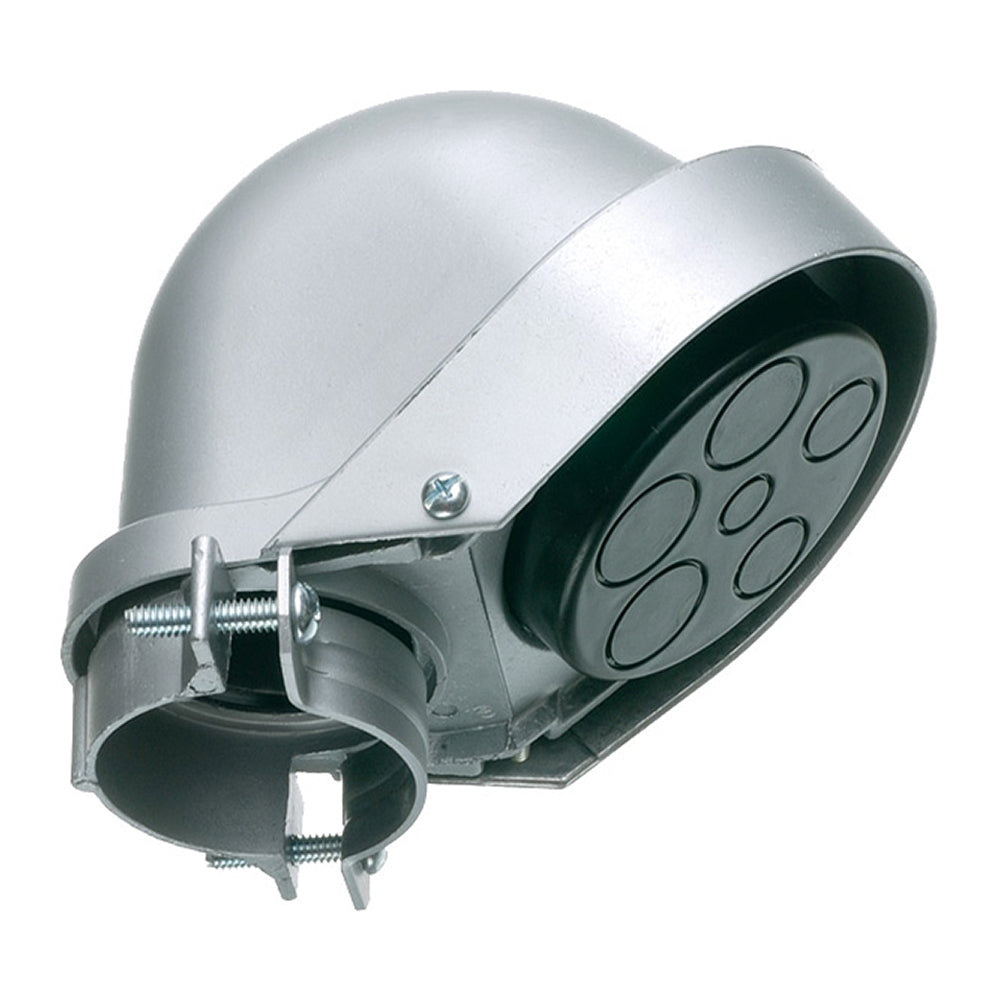

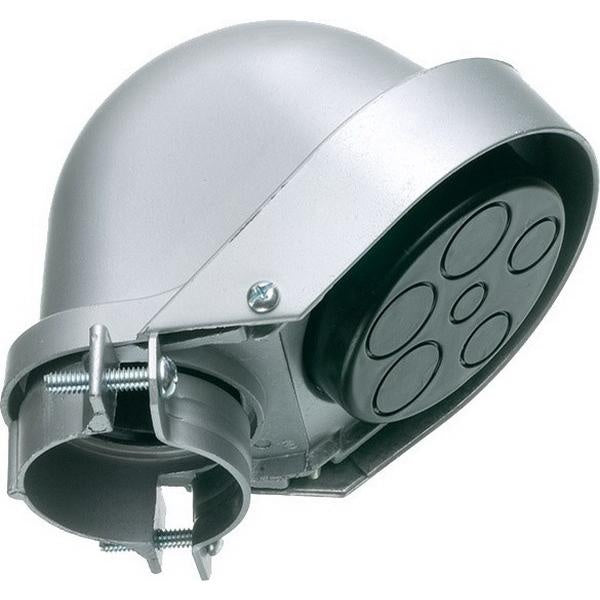

ARLINGTON 145 Entrance Cap 2 in (6) (1) 0.53 in, (2) 0.75 in, (3) 1 in Hole

Product Description

The Arlington Entrance Cap, MPN 145, is a clamp-on cap measuring 2 inches in size. It features six holes of varying sizes: one hole of 0.53 inches, two holes of 0.75 inches, and three holes of 1 inch. This entrance cap is made from aluminum, ensuring strength and durability. It is suitable for use with EMT, IMC, and rigid conduit applications. The dimensions of the product are six point six two inches in length and four point five five inches in height.

• Six holes: 0.53 in, 0.75 in, and 1 in
• Constructed from robust aluminum
• Compatible with EMT, IMC, and rigid conduit

Product Highlights

Product Information

Standard Information

• Item Name: Entrance Cap
• Brand: Arlington

Technical Specifications

• Size: 2 in
• Material: Aluminum
• Hole Size: 0.53 in, 0.75 in, 1 in
• Dimensions: 6.62 in L x 4.55 in H
• Number of Holes: 6
• Suitable For Use With: EMT, IMC, Rigid Conduit
• Fitting Type: Entrance Cap
• Connection Type: Clamp-On
• Standards: UL Listed, CSA Certified
• Trade Size: 2 Inch
• Standards/Approvals: UL File No. E105706, CSA File No. LR49636
