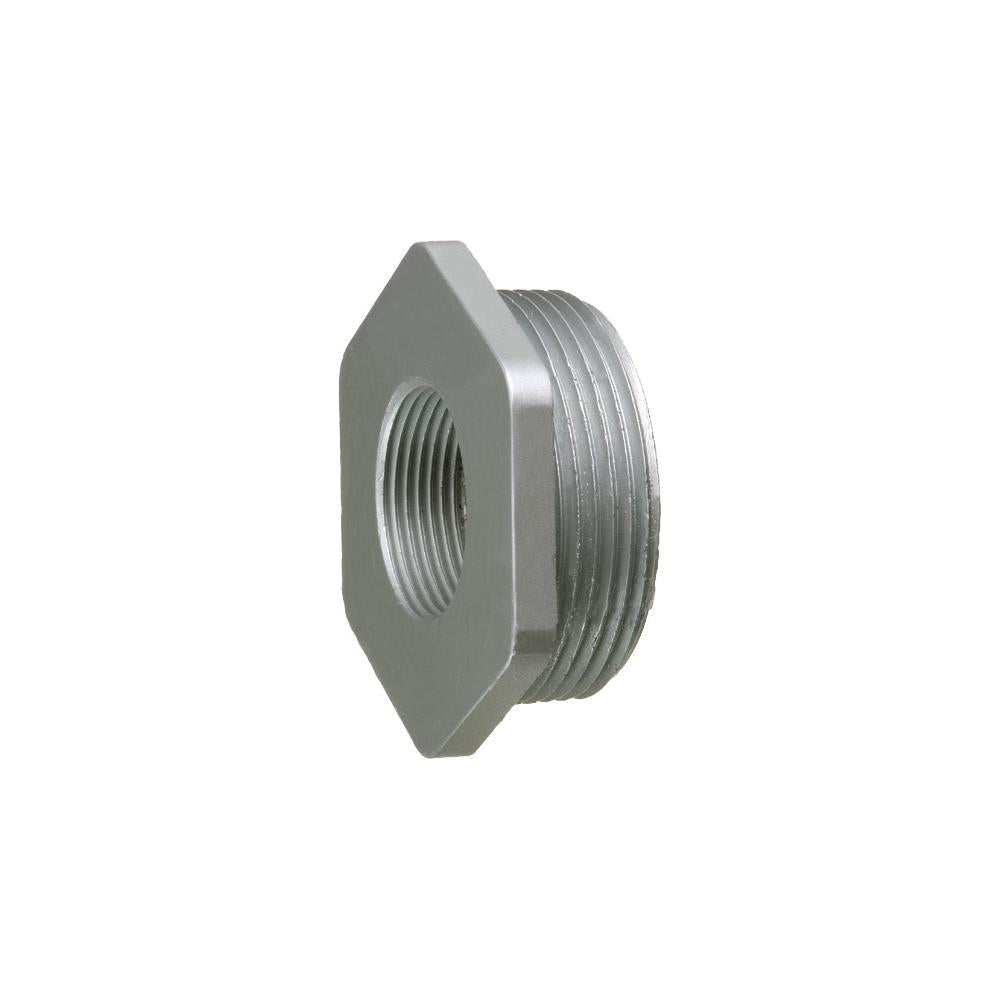

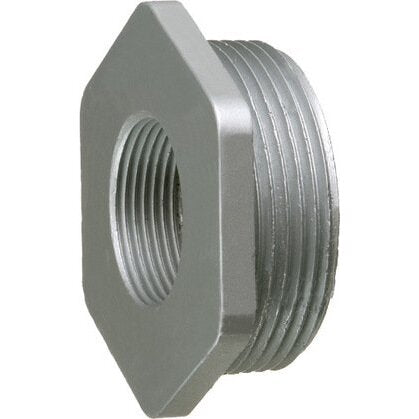

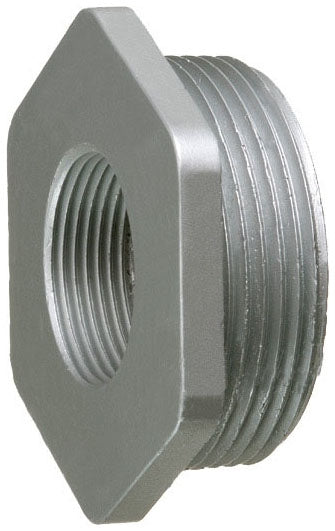

Arlington 1283 Reducing Bushing 3 inches X 1 inches

Product Description

The Arlington 1283 reducing bushing is used with threaded rigid or IMC conduits to reduce the size of female hubs. It accommodates smaller sized conduits or male threaded hubs. Constructed from durable zinc die-cast, it ensures mechanical protection to the conduit and electrical junction box or enclosure. Excellent for use in damp locations, with exceptional corrosion protection.

• Maintains ground path
• Able to pass UL high current testing

Product Highlights

The Arlington reducing bushing is made from zinc die-cast and provides mechanical protection to conduit and electrical enclosures.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 1283
• Country of Origin: USA

Technical Specifications

• ADI Part Number: 9N-1283
• Brand Name: Arlington Industries
• Manufacturer Part Number: 1283
• Diameter: 1 in, 3 in
• Material: Zinc Die Cast
• Application: For Flex, AC and MC Cables
• Color: Silver
• Country Of Origin: USA
• Electrical Category: Electrical Boxes And Enclosures
• Electrical Subcategory: Fittings and Bushings
• RoHS Compliance: Contact Manufacturer
• Special Features: Able to pass UL high current testing
• Standard: UL and CSA
• Stock Type: Shelf Stock
• Trade Size: 3 x 1
• Type: Larger Reducing Bushing
• UNSPSC: 39121312
• Used on: Rigid Conduit/Imc
• Small End Trade Size: 1 Inch
• Large End Trade Size: 3 Inch
• Approval: UL, CSA
