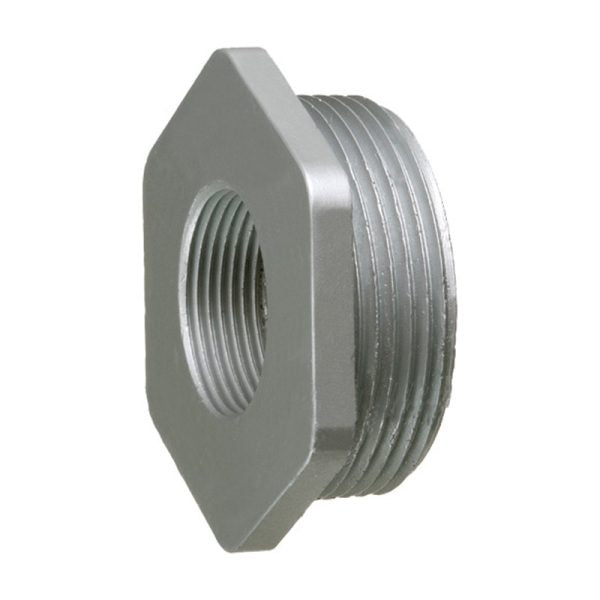

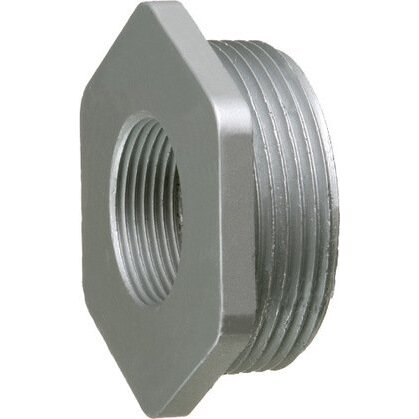

Arlington 1275 2-1/2 inches x 1-1/2 inches Hex Reducing Bushing

Product Description

The Arlington 1275 2-1/2" X 1-1/2" Hex Reducing Bushing is used with threaded rigid or IMC conduits to reduce the size of female hubs. Constructed of zinc die-cast, it ensures mechanical protection to the conduit and electrical junction box. It maintains a ground path and passes UL high current testing, making it suitable for damp locations.

• Hex head design for easy installation
• Zinc die-cast for durability
• Maintains ground path

Product Highlights

The Arlington 1275 reducing bushings have durable zinc die cast construction that ensures mechanical protection to the conduit and designated electrical junction box or enclosure.

Product Information

Standard Information

• Brand: ARLINGTON
• Manufacturer Part Number: 1275
• Country of Origin: United States

Technical Specifications

• ADI Part Number: 9N-1275
• Brand Name: Arlington Industries
• Manufacturer Part Number: 1275
• Product Name: Larger Reducing Bushings
• Product Type: IMC Fittings
• Material: Zinc Die Cast
• Diameter: 1 1/2 in, 2 1/2 in
• Part Number: 1275
• Certificate: cUL/UL Listed, CSA US
• Trade Size: 2-1/2-in x 1-1/2-in
• Weight: 0.536 lbs/each
• Height: 2.820
• Width: 1.125
• MPN: 1275
• Manufacturer: Arlington
• Type: Bushings/Knockout Seals/Locknuts
