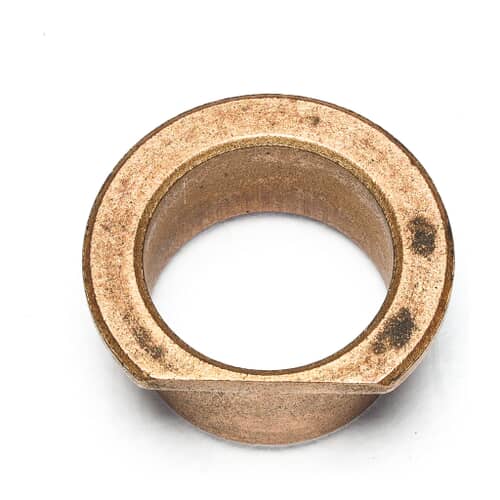

Ariens 5512200 Flanged Brass Bushing 1.000 X 1.12 Inch

Product Description

The ARIENS 5512200 is a flanged brass bushing designed for use in Ariens lawn and garden equipment. This small-diameter bushing provides a precision-fit bearing surface at pivot and shaft interface points, reducing wear between rotating or sliding components. The nominal dimensions are 1.000 inch bore, 1.12 inch outer diameter, 0.62 inch length, and a 1.50 inch flange diameter. Brass construction offers corrosion resistance and low-friction performance suitable for outdoor power equipment operating in varied weather and soil conditions. Licensed technicians and equipment service shops install this type of component during drivetrain, blade deck, or bracket assembly repairs.

This flanged bushing is suited for residential and light commercial lawn and garden equipment serviced at the deck, blade, or bracket level. The flange design seats against a mating surface to provide axial location and load distribution, preventing the bushing from pulling through the bore under operational loads. This part falls within the Ariens bracket, flange, and blade parts category, making it applicable to mower deck assemblies and related pivot points that see regular stress during cutting and maneuvering.

Key Features

• Brass construction provides corrosion resistance and low-friction bearing surface
• Flanged design seats flush against mating surfaces for axial retention
• 1.000 inch bore accommodates standard shaft diameters used in Ariens deck assemblies
• 1.50 inch flange diameter distributes load across the mounting surface
• Compact 0.62 inch length fits tight assembly envelopes in blade and bracket locations

Compatibility

Designed as an OEM-style replacement flanged bushing for Ariens lawn and garden equipment requiring a 1.000 inch bore flanged brass bushing in bracket, flange, or blade assembly applications.

Installation Notes

Installation of this bushing is typically performed by equipment service technicians. Disconnect the spark plug wire and ensure the equipment is fully powered down before disassembling any deck or drivetrain components. Press or tap the bushing squarely into its bore using appropriate hand tools to avoid distorting the brass material. Inspect the mating shaft and bore for wear before installing the replacement bushing.

Technical Specifications

• Bore Diameter: 1.000 inches
• Outer Diameter: 1.12 inches
• Length: 0.62 inches
• Flange Diameter: 1.50 inches
• Material: Brass
• Type: Flanged Bushing

Standard Information

• Brand: ARIENS
• Manufacturer Part Number: 5512200
