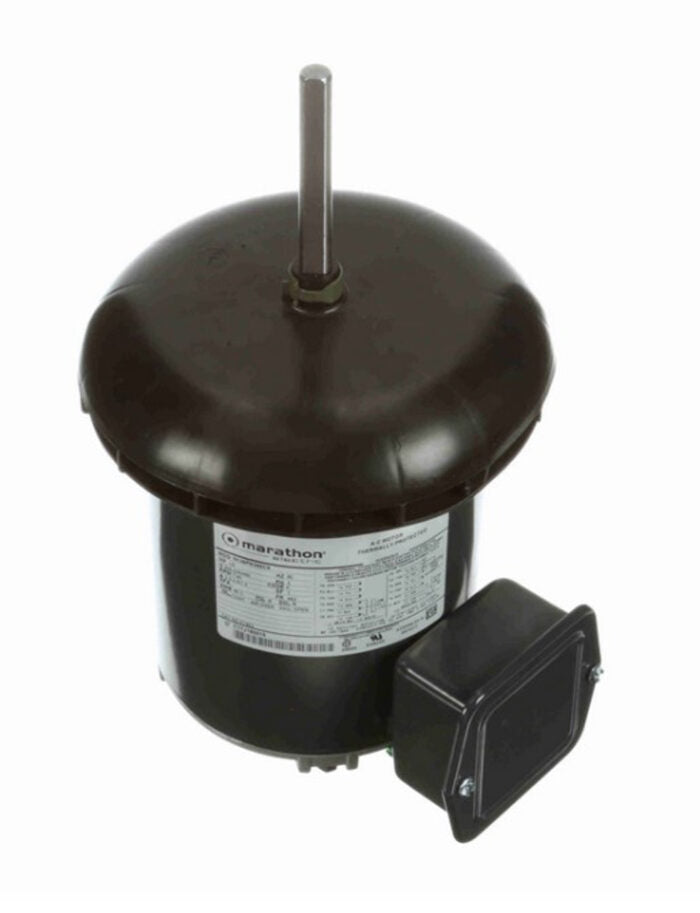

Marathon Motors MK1403 Condenser Fan Motor 1/2 hp N/A

Product Description

The Marathon Motors MK1403 is a three-phase electric motor designed specifically for condenser fan applications within air conditioning units. This motor is built to withstand outdoor conditions and features a vertically oriented shaft for optimal performance.

• Automatic thermal protection enhances motor safety.
• Reversible rotation allows for versatile installation options.
• Ball bearings provide reliable support and extend motor life.

Product Highlights

The MK1403 is suitable for use in various air conditioning systems and is designed for ease of installation and operation.

Product Information

Standard Information

• Brand: Marathon Motors
• MPN: MK1403

Technical Specifications

• Horsepower: 1/2 hp
• RPM: 1140
• Amperage: 2.2-2.6/1.3 amps
• Voltage: 200-230/460 volts
• Frequency: 60 Hz
• Phase: 3-phase
• Frame: NEMA 56Z open frame
• Shaft Diameter: 1/2 inch
• Shaft Length: 4 1/2 inches
• Service Factor: 1.0
• Thermal Protection: Automatic
• Rotation: Reversible
• Bearing Type: Ball bearings
• Insulation Class: Class B
• Weight: 20 lbs
