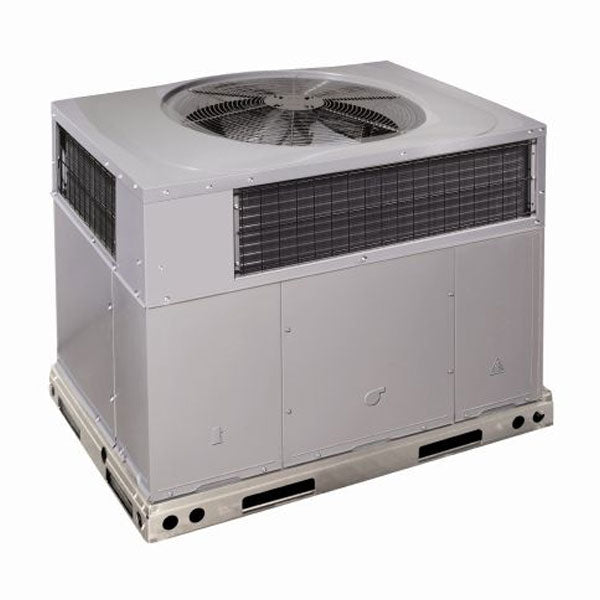

Arcoaire PGD436060K001K 3 Ton Packaged Gas Electric Unit

Product Description

The ARCOAIRE PGD436060K001K is a 3-ton single-stage packaged gas electric unit engineered for rooftop or ground-level installation in light commercial and residential applications. This self-contained unit combines the heating and cooling components in one cabinet, simplifying installation and reducing the equipment footprint. The PGD436060K001K is a low-NOx design, meeting stricter air quality emission standards required in certain regions. Licensed HVAC technicians install and service this type of packaged unit as a complete system replacement or new construction install.

This packaged unit is suited for single-zone applications where ductwork connects directly to the unit's supply and return air openings. Rooftop curb-mount configurations are common for light commercial buildings, while ground-level slab installs are typical in residential settings. The single-stage operation delivers consistent heating and cooling output sized for a 3-ton load. Low-NOx compliance makes this unit appropriate for jurisdictions with stringent emission requirements, including parts of California and other regulated markets.

Key Features

• 3-ton cooling capacity in a single-stage packaged configuration
• Integrated gas heating and electric cooling in one self-contained cabinet
• Low-NOx design meets strict regional emission standards
• All-in-one cabinet reduces installation complexity versus split systems
• Sized for direct duct connection on rooftop curb or ground-level slab

Compatibility

Designed as an OEM-style packaged gas electric unit for residential and light commercial ducted HVAC applications requiring a 3-ton single-stage system.

Installation Notes

Installation must be performed by a licensed HVAC technician in accordance with local mechanical codes and manufacturer guidelines. Disconnect all electrical power and shut off the gas supply before servicing or connecting the unit. Verify that the supply voltage, gas type, and duct sizing match the unit requirements prior to startup. Follow applicable codes including IFGC for gas piping connections and NEC for electrical connections.

Technical Specifications

• Cooling Capacity: 3 tons
• System Type: Single Stage Packaged Gas Electric
• Emissions: Low NOx
• Dimensions (L x W x H): 8 x 48 x 46 inches
• Weight: 376 pounds

Standard Information

• Brand: ARCOAIRE
• Manufacturer Part Number: PGD436060K001K
