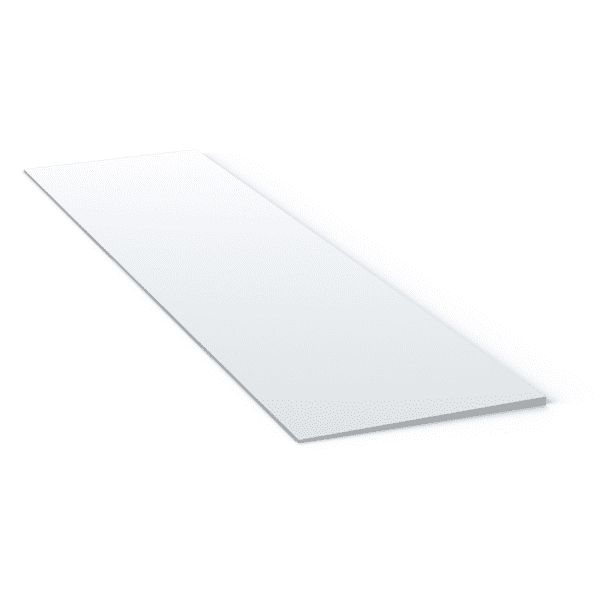

ARC TB6012-PXT Pitch Extension Panel 12 inches x 60 inches

Product Description

The ARC TB6012-PXT Pitch Extension Panel is a versatile solution for extending shower bases. Measuring twelve inches by sixty inches, it features a quarter inch slope per foot. This panel serves as a substitute for tile backer boards or uncoupling membranes when used with Tuff Form and TriForm shower bases. Installation requires a structurally sound sub-floor, ensuring stability.

• Compatible with Tuff Form, Tuff Form8, and TriForm shower bases
• Lightweight design simplifies installation
• Can be trimmed and drilled using standard power tools

Product Highlights

This extension panel allows for the seamless integration of decorative tiles, natural stone, or weldable vinyl flooring, enabling a smooth finish for your shower project.

Product Information

Standard Information

• Material: Durable PVC plastic
• Installation: Requires structurally sound sub-floor

Technical Specifications

• Slope: One quarter inch to three eighths inch slope with one gradient plane
• Gradient: Two percent per foot
• Compatibility: Works with Tuff Form, Tuff Form8, and TriForm shower bases
• Warranty: Covered by AKW limited lifetime warranty
