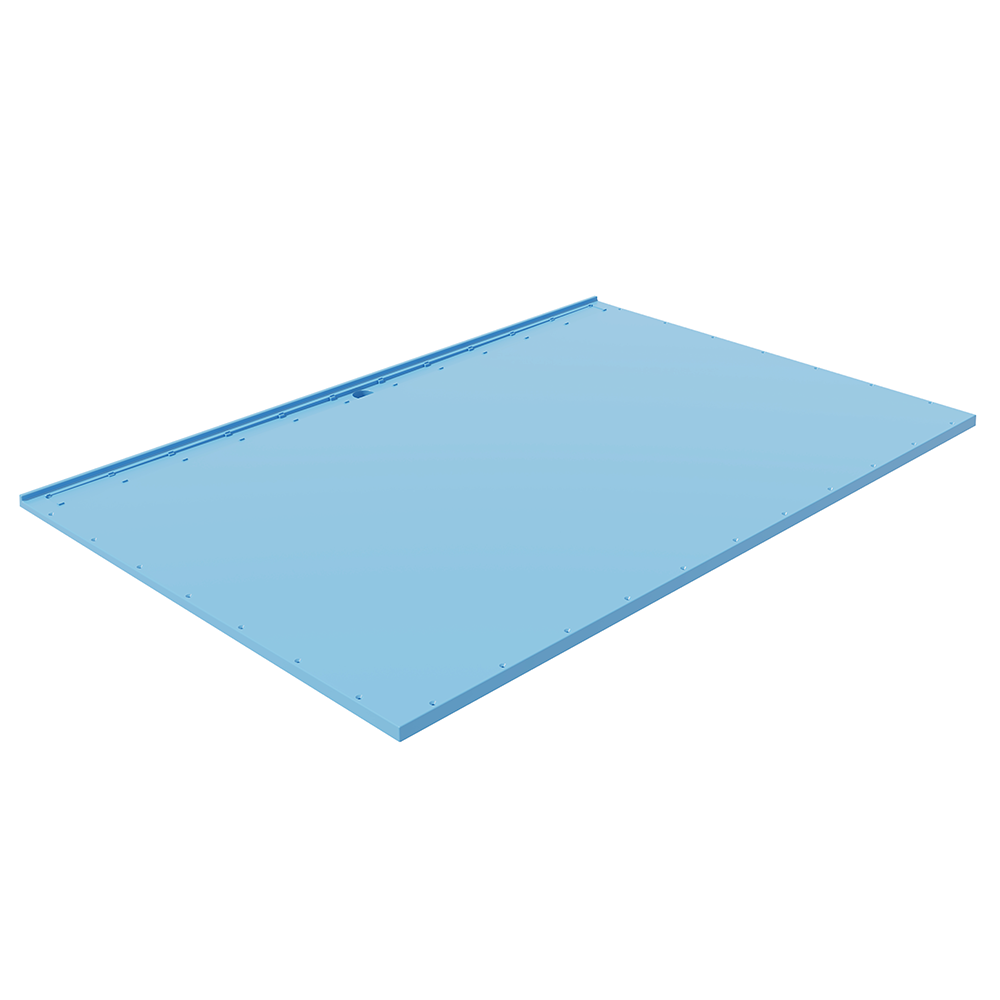

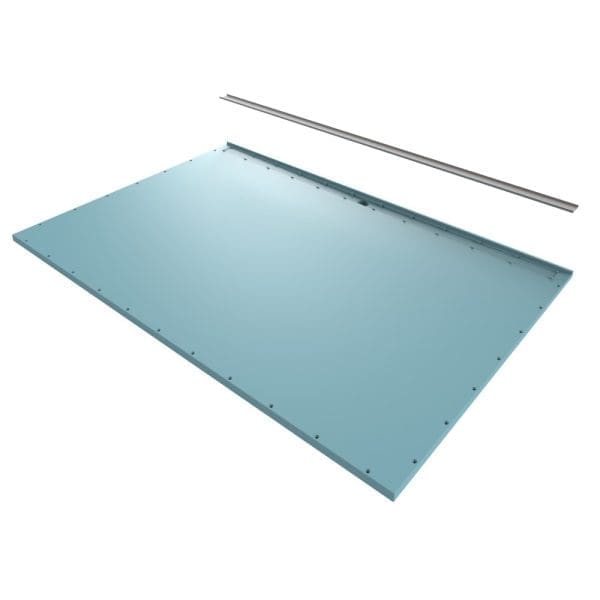

ARC 21240 Tuff Form Ultimate Linear Shower Base 72 inches x 48 inches

Product Description

The ARC 21240 Tuff Form Ultimate Linear Shower Base is made from compression molded glass-fiber reinforced plastic (GRP). This shower base is designed with a single continuous pitch leading to a linear drain, enhancing drainage efficiency. It supports wheelchair access with a structural design able to hold up to 840 pounds.

• Weight capacity of 840 pounds for maximum support.
• Single-pitch design directs water flow towards the drain.
• Suitable for large format tiles and natural stone finishes.

Product Highlights

This shower base features a zero-entry design, making it friendly for wheelchair users and ideal for tiled installations.

Product Information

Standard Information

• Brand: ARC
• Material: Compression molded GRP

Technical Specifications

• Max Capacity: 840 pounds
• Underside: Waffle design for rigidity
• Thickness: 7/8 inches around perimeter
• Leveling Rim: 1.75 inches wide
• Drain Outlet Diameter: 2 inches
• Gradient: 2% per foot
• Height: 1.375 inches
• Drain Location: Wall
