Ar North America PW909103K-R Quick Connect Socket Kit

Product Description

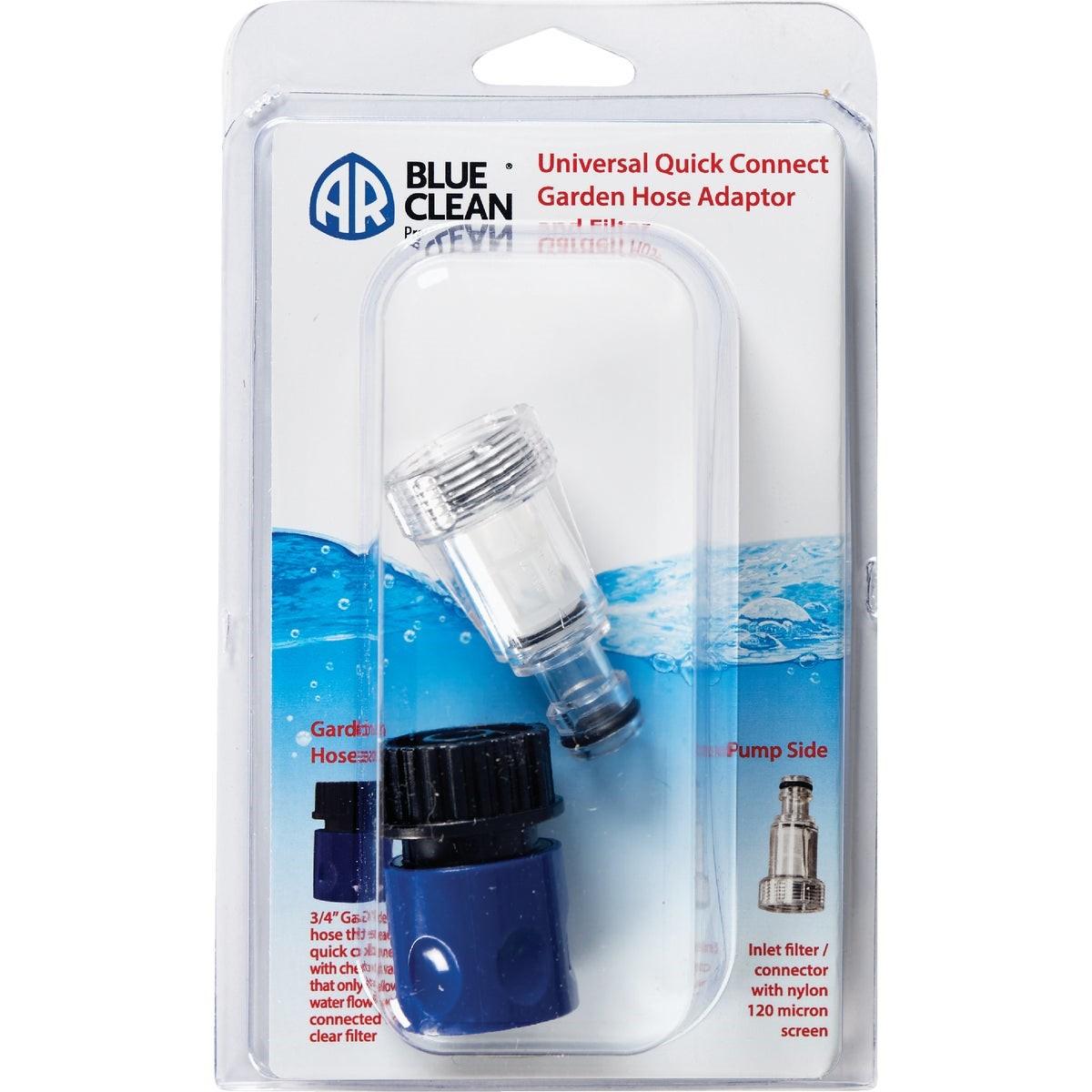

The AR NORTH AMERICA PW909103K-R is a 3/4 inch garden hose thread quick connect socket kit designed to simplify water supply connections on pressure washers while protecting the inlet from debris. The kit includes a quick connect socket and a conical inlet filter featuring a 50 mesh screen with a 120 micron nylon filtration element. Together, these components allow fast attachment and detachment of the garden hose supply line and block particulate matter from entering the pump inlet. This part is installed by pressure washer service technicians and equipment operators performing routine maintenance or hose swap-outs.

This kit fits pressure washers that use a 3/4 inch garden hose thread inlet connection. It is suited for residential and light commercial pressure washer units where garden hose supply lines feed directly into the machine inlet. The inline filter helps prevent scale, sediment, and debris from reaching the pump, which is a common source of premature pump wear in field applications.

Key Features

• 3/4 inch garden hose thread quick connect socket for tool-free supply line attachment and removal
• Conical inlet filter with 50 mesh screen blocks debris before it reaches the pump
• 120 micron nylon screen provides fine particulate filtration
• Lightweight construction at 0.25 pounds for easy handling during installation
• Sold as a complete kit — quick connect socket and filter included together

Compatibility

Designed as an OEM-style replacement inlet filter and quick connect kit for pressure washers equipped with a 3/4 inch garden hose thread water supply inlet.

Installation Notes

Installation and removal should be performed with the water supply shut off and all pressure relieved from the system. Hand-tighten the garden hose thread connection to avoid cross-threading or damage to the nylon screen housing. Inspect the filter screen regularly and flush or replace it when flow restriction is observed. This type of inlet accessory is typically serviced by pressure washer technicians or equipment operators following manufacturer maintenance intervals.

Technical Specifications

• Connection Thread Size: 3/4 inch garden hose thread
• Filter Mesh: 50 mesh
• Filter Screen Material: Nylon
• Filtration Rating: 120 micron
• Weight: 0.25 pounds
• Sold As: Each

Standard Information

• Brand: AR NORTH AMERICA
• Manufacturer Part Number: PW909103K-R
