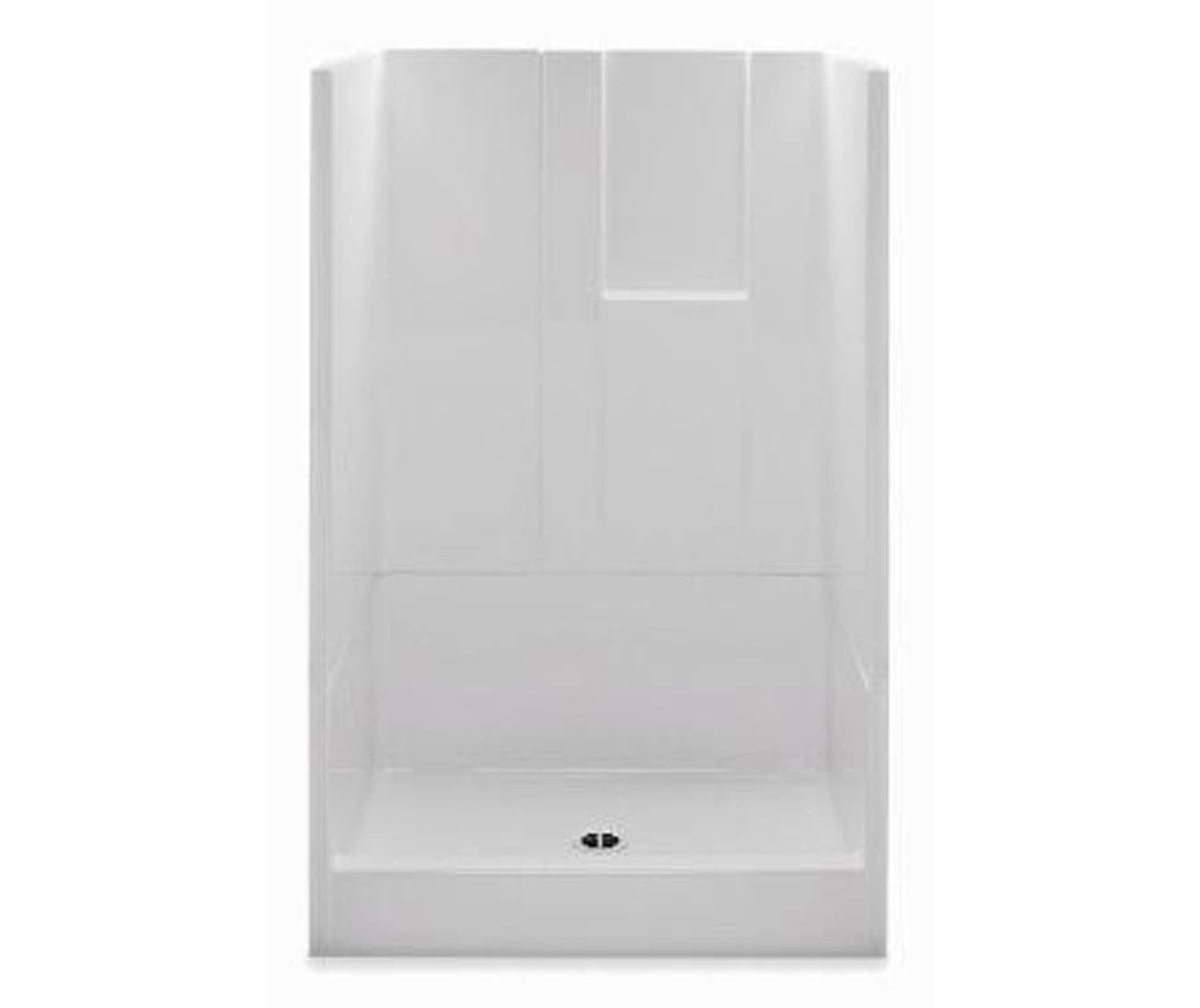

Aquatic 1483NTRI-WH Remodeline Sectionals Alcove Shower Unit 48 x 34 x 72-3/4 in

Product Description

The Aquatic 1483NTRI-WH Remodeline Sectionals alcove shower unit features a smooth wall finish and a molded toiletry shelf. This 3-piece shower has an AcrylX applied acrylic surface and a center drain. Ideal for remodeling or new construction, this shower unit offers integrated shelving.

• Smooth wall finish for easy cleaning
• Features a molded toiletry shelf
• AcrylX applied acrylic surface

Product Highlights

This 3-piece Aquatic shower unit is designed for alcove installation and includes a center drain and smooth walls.

Product Information

Standard Information

• Brand: AQUATIC
• Manufacturer Part Number: 1483NTRI-WH
• Country of Origin: US

Technical Specifications

• Brand: Aquatic
• Material: AcrylX™
• Drain Location: Center
• Installation Type: Alcove

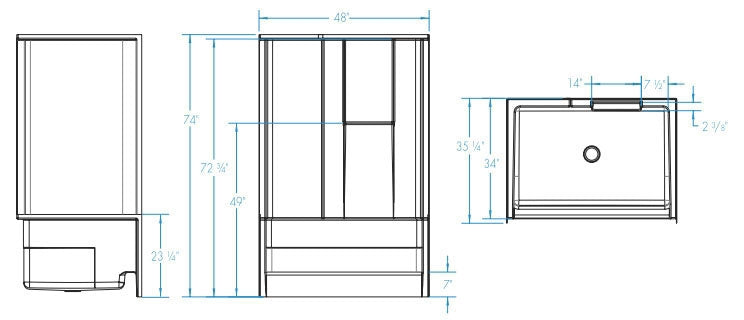

• Length: 48 in
• Width: 34 in
• Height: 72-3/4 in
• Number of Pieces: 3-Piece
• Overall Dimensions (L x W x H): 48 in Lx34 in W x 72-3/4 in H
• Type: 3-Piece, Alcove
• Drain Connection: 3-1/4 Inch
• Inclusions/Features: Smooth Wall, Molded Toiletry Shelf
• Applicable Standard: ICC-ES PMG
• Drain Rough-In Size: 24 Inch x 15-3/4 Inch
• Enclosure Opening Size: 44-1/4 Inch
• Skirt Height: 7 Inch
• Collection: Everyday
• Mfg Standards/Approvals: ICC-ES PMG Complies to UPC
• Mounting Type: Alcove
• Opening Size: 44-1/4 in W
• Series: 1483NTRI-WH
• Warranty: Limited Lifetime
• Shape: Rectangular
• Threshold Height: 7"
• Maximum Door Width: 44 1/4"
• Domestic/Import: Domestic
• Drain clearance: 1-1/2 in
• Dam height: 7 in
• Shower drain location (from side wall): 24 in
• Shower drain location (from back wall): 15-3/4 in
• ADA Compliant: No
• ANSI: ANSI Z124
• ASTM: ASTM E-84
• CARB OTC LEED Compliant: No
• Color Finish Category: Whites
• Color Finish Name: White
• GSA Approved: No
• IAPMO Listed: Yes
• NSF Certified: No
• Proposition 65: WARNING: This product can expose you to chemicals including styrene and styrene compounds, which are known in the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
• Shower Base Shape: Rectangle
• UL Listed: No
• Supplier Part #: 1483NTRI-WH
• Item #: AQU047000
• Alt Part #: LA047000
• Configuration: Center
• Room Space: Bathroom
