Aquatherm 1080032922 Green 45 Elbow 1 IN

Product Description

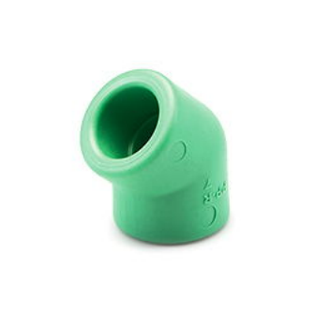

The AQUATHERM 1080032922 Green 45 Elbow is a 1 IN elbow fitting. Constructed from Fusiolen PP-R material conforming to ASTM F2389, this elbow features a socket weld connection type. It adheres to industry standards DIN 16962 and DIN EN ISO 15874. This elbow is designed for heat fusion, creating a strong connection.

• Nominal Size: 1 IN
• Connection Type: Socket Weld
• Material: Fusiolen PP-R

Product Highlights

Made from polypropylene, this elbow is designed for heat fusion, providing a connection stronger than the pipe itself. It allows for easy integration with other systems.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1080032922

Technical Specifications

• Nominal Size: 1 IN
• Connection Type: Socket Weld
• Material: Fusiolen PP-R
• Material Standard: ASTM F2389
• Finish/Color: Green
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 32 X 43 MM Socket End, 25.5 MM Center To End
• Item Name: 45 DEG Elbow
• manufacturer: FITTINGS AQUATHERM
