Aquatherm 1070075927 Hex Transition Piece 2-1/2 X 2 Fpt

Product Description

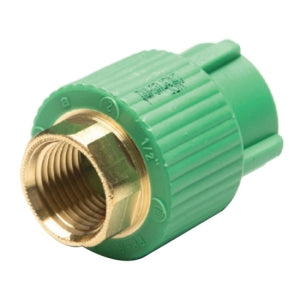

The AQUATHERM 1070075927 is a hex transition piece with a nominal size of 2-1/2 X 2 IN. Constructed from Fusiolen PP-R, it features a socket weld X brass FNPT connection. This fitting conforms to industry standards DIN 16962 and DIN EN ISO 15874. Its outside diameter measures 100 MM and its length is 77 MM.

• Hex Transition Piece
• Socket Weld X Brass FNPT Connection
• Made from polypropylene and designed for heat fusion

Product Highlights

The AQUATHERM hex transition piece facilitates easy integration of Aquatherm piping with other systems, featuring a socket weld x brass FNPT connection.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1070075927

Technical Specifications

• Nominal Size: 2-1/2 X 2 IN
• Connection Type: Socket Weld X Brass FNPT
• Outside Diameter: 100 MM
• Length: 77 MM
• Material: Fusiolen PP-R
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 75 MM Socket End, 50.8 X 67 MM Thread End, 51 MM Center To End
