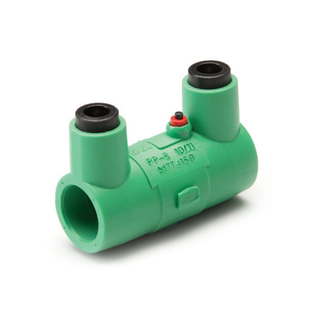

Aquatherm 1040160994 6 IN Green Electrofusion

Product Description

The AQUATHERM 1040160994 is a 6 IN electrofusion coupling designed for joining Aquatherm pipe using electrofusion, a technique where a coupling with embedded heating element wires is slipped over pipe ends. Electrical current is applied, generating heat that melts the PPR of the coupling and pipe together, forming a strong fusion bond. It cannot be used in conjunction with UV pipe.

• Nominal Size: 6 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen PP-R
• Cannot be used in conjunction with UV pipe.

Product Highlights

Electrofusion couplings can be used where normal fusion equipment cannot be used because of space or height restrictions.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040160994

Technical Specifications

• Nominal Size: 6 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen PP-R
• Material Standard: ASTM F2389
• Method Of Manufacturer: Electrofusion
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 160 X 197 MM Socket End, 93 MM Center To End
• Item Name: Coupling
