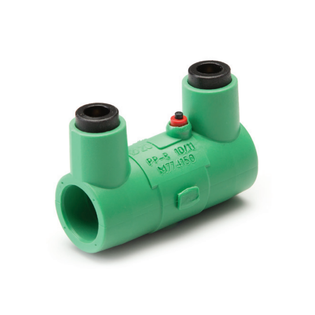

Aquatherm 1040125993 4 inches Electrofusion Coupling

Product Description

The AQUATHERM 1040125993 4" Electrofusion Coupling joins Aquatherm pipe using electrofusion, a technique employing a coupling with embedded heating element wires. Applying electrical current generates heat, melting the PPR of the coupling and pipe together to form a fusion bond. It can be used where normal fusion equipment cannot be used because of space or height restrictions.

• Electrofusion is another technique for joining Aquatherm pipe (PP-R, RP(RCT))
• Can be used in some cases where normal fusion equipment cannot be used because of space or height restrictions
• Can be used when making a final connection in a small space where the rest of the piping is already rigidly in place.

Product Highlights

The AQUATHERM Electrofusion Coupling is ideal for connections in tight spaces. Fusion joining provides a connection that is stronger than the pipe itself.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040125993

Technical Specifications

• Nominal Size: 4 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Method Of Manufacturer: Electrofusion
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 125 X 156 MM Socket End, 86 MM Center To End
• Item Name: Coupling
