Aquatherm 1040063937 2 X 1-1/2 Aquatherm Green Bushing

Product Description

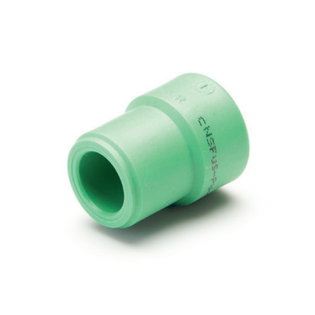

The AQUATHERM 1040063937 is a reducer bushing with a nominal size of 2 X 1-1/2 IN. Constructed from Fusiolen PP-R, it adheres to material standard ASTM F2389 and industry standards DIN 16962 and DIN EN ISO 15874. It features a socket weld connection type and measures 63.5 MM in length.

• Female to male for use with standard fitting
• Female side is identified by a socket-fitting structure
• Male side is identified with a beveled edge

Product Highlights

This bushing is designed for heat fusion, providing a connection stronger than the pipe itself. It has a 50 X 68 MM female socket end and a 63 MM male socket end, with a 40 MM center to end.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040063937

Technical Specifications

• Nominal Size: 2 X 1-1/2 IN
• Connection Type: Socket Weld
• Length: 63.5 MM
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Finish/Color: Green
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 50 X 68 MM Female Socket End, 63 MM Male Socket End, 40 MM Center To End
