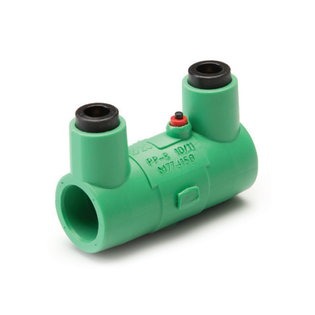

Aquatherm 1040050988 1-1/2 Aquatherm Green Electrofusion Coupling

Product Description

The AQUATHERM 1040050988 1-1/2 Aquatherm Green Electrofusion Coupling, with a nominal size of 1-1/2 IN, utilizes electrofusion to join Aquatherm pipe. This coupling has heating element wires embedded in PP-R. Applying electrical current generates heat, melting the PPR of the coupling and pipe together, forming a fusion bond.

• Made from Fusiolen PP-R material conforming to ASTM F2389 standard.
• Features electro socket weld connection type.
• Complies with industry standards DIN 16962 and DIN EN ISO 15874.

Product Highlights

Electrofusion couplings can be used where normal fusion equipment cannot be used because of space or height restrictions.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040050988

Technical Specifications

• Nominal Size: 1-1/2 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Finish/Color: Green
• Method Of Manufacturer: Electrofusion
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 50 X 65 MM Socket End, 51.5 MM Center To End
• Item Name: Coupling
