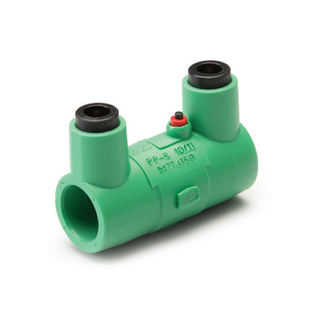

Aquatherm 1040020984 1/2 Aquatherm Green Electrofusion

Product Description

The AQUATHERM 1040020984 is a 1/2" electrofusion coupling designed for joining Aquatherm pipe (PP-R, RP(RCT)). Electrofusion involves using a coupling with embedded heating element wires. Applying electrical current generates heat, melting the PPR of the coupling and pipe together, forming a strong fusion bond.

• Coupling
• Electrofusion is another technique for joining Aquatherm pipe (PP-R, RP(RCT))
• Can be used in some cases where normal fusion equipment cannot be used because of space or height restrictions

Product Highlights

Electrofusion couplings can be used when making a final connection in a small space where the rest of the piping is already rigidly in place.

Product Information

Standard Information

• Brand: AQUATHERM
• Manufacturer Part Number: 1040020984

Technical Specifications

• Nominal Size: 1/2 IN
• Connection Type: Electro Socket Weld
• Material: Fusiolen® PP-R
• Material Standard: ASTM F2389
• Method Of Manufacturer: Electrofusion
• Industry Standards: DIN 16962, DIN EN ISO 15874
• Other Physical Dimension: 20 X 31.5 MM Socket End, 35 MM Center To End
